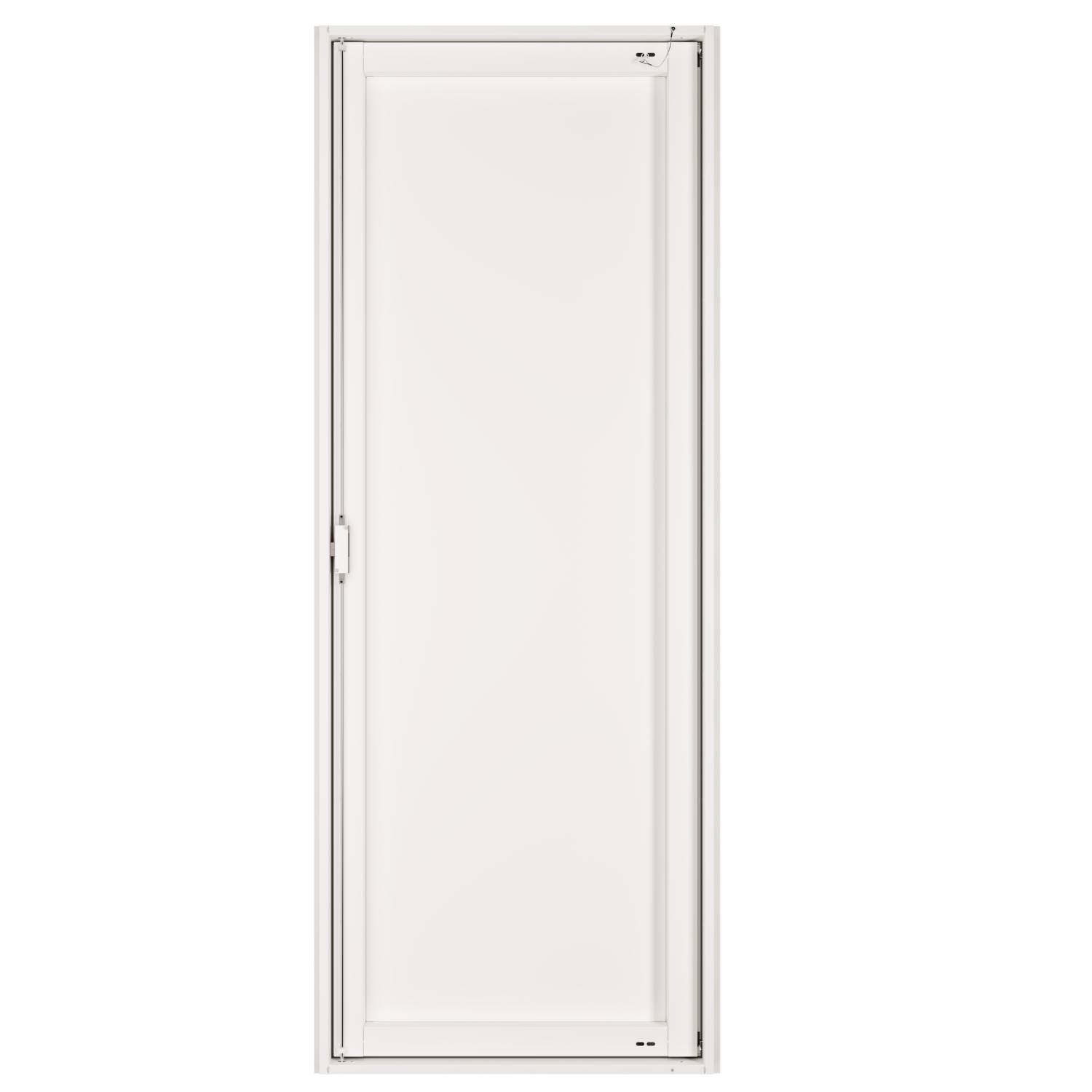

Metal Riser Door (Premium Range 51) - Picture Frame - 2 Hour Fire Rated From the Face & Rear - Riser Door
Verified by manufacturer 5 days ago
Metal Riser Door, 2 Hour Bi-directional Fire Tested, Picture Frame, 3 Way Locking System.
Application
Suitable for use in jointless plasterboard wall systems.
Description
This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a 25 mm wide picture frame. The metal door leaf is locked in place via a three-point locking system with other lock options available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:
- The panel is two-hour fire rated (up to 2400 x 900 mm in a wall application).
- Manufactured from Zintec steel with a 1.2 mm thick door and a 1.5 mm frame.
- The panel's door leaf is hinged by a fast fit hinge system which saves time on fitting compared to a full piano hinge.
General information
Color | White Other |
Finish | Powder-coated |
Material | Steel |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
SKU Code | EX51-120-MD-PF-3W |
Specification data - Access panels
Classification data | |
Fire performance | |
Fire resistance | 120 minutes integrity to 1634-1:2008 and BS EN 1363-1:1999. Guidance for specification option: Up to 2400 x 900 mm. |
Position | Wall-mounted. |
Size | Manufacturer guidanceInsert requirements. |
Frame | Exposed picture frame type. |
Panel | |
Material | Steel. |
Integral finish | Powder-coated. |
Latch or lock type | Low level security: 3 way lock. Medium level security: Key retaining lock. High level security: 3 way Euro profile cylinder lock. |
Integral accessories | Intumescent sealing strips to frame. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 22 % |
Literature
Literature type
Product Page - EX51 Riser Door Range
Fitting Instructions - EX51 Riser Door Range
