Application

Can be used in many different applications - consult manufacturer for details.

Description

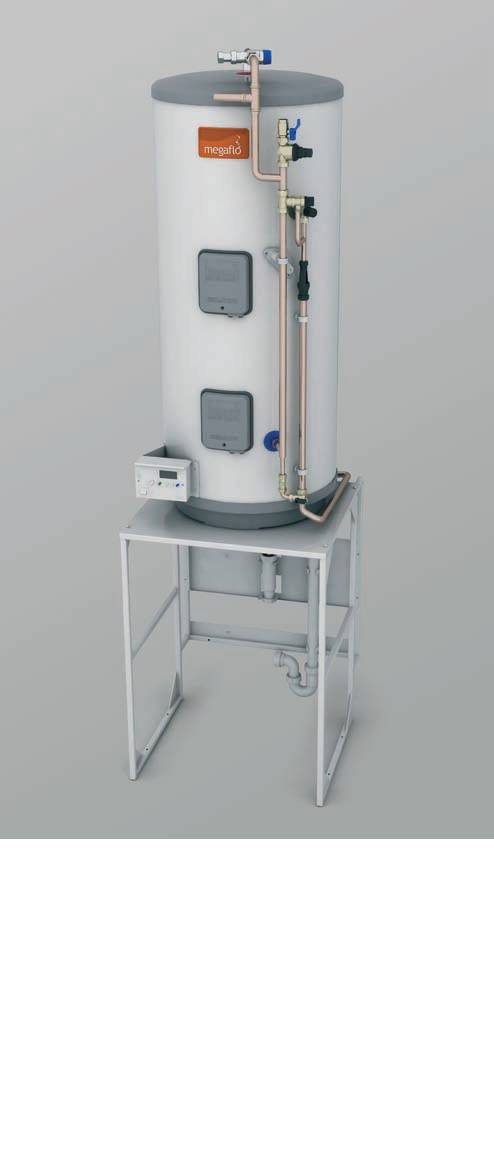

Unvented cylinders available in capacities of 70–2500 L, with a choice of direct (electric auxiliary heat input) or indirect (gas, oil or electric boiler auxiliary heat input) versions.

Features and benefits:

  • Cylinder is cool-to-the-touch and resistant to all forms of corrosion, even in aggressive water areas.
  • Uses the innovative ‘internal expansion system’, keeping all elements contained within the cylinder casing.
  • Designed for minimum heat loss and energy efficiency
  • Fully factory tested for reliability.
  • Life-time domestic warranty, 30-year commercial warranty.
  • Designed, engineered and manufactured in the UK.
  • Fully Energy related Products (ErP) compliant, CE marked, Kiwa and Nemko approved.

Applications:

Can be used in many different applications - consult manufacturer for details.

General information
Color

White

Features

Support frame, pre-plumbed cold water controls, pre-plumbed thermostatic mixing valve, capillary type immersion heater controls, patented internal floating baffle system to accommodate water expansion, no anode, insulated casing for the temperature and pressure relief valve, unique 'L-shaped' long-life Superloy immersion heater reaches deeper into the tank giving more hot water, patented cold water inlet diffuser, high performance 'coil-in-coil' heat exchanger, exceeds CHeSS Best Practice for recovery times and insulation

Material

Outer casing: Plastic-coated corrosion-proofed steel; Water container: Duplex stainless steel with internal air-gap system

Size

2335 x 800 x 660 mm

Uniclass 2015 Electric storage water heaters (Pr_60_60_96_28)
Specification data
Product Reference

Megaflo Commercial

For large premises.

Megaflo Commercial Flexistor

For large premises, with many applications.

Megaflo Commercial Solar

For large premises in conjunction with solar systems.

Megaflo Eco

Standard cylinder.

Megaflo Eco Plus

Twice the flow of our Megaflo Eco.

Megaflo Eco Plus Flexistor

For use with many applications.

Megaflo Eco Plus Solar

Twice the flow of our Megaflo Eco, for use with solar systems.

Megaflo Eco Slimline

Compact version of the Megaflo Eco.

Megaflo Eco Solar

For use with solar systems.

Megaflo Eco Solar PV Ready

Harnesses surplus solar electricity to generate hot water.

Megaflo Eco SolaReady

Includes factory fitted and pre-wired solar thermal system components.

Megaflo Eco SystemFit

Includes factory-fitted plumbing and wiring for installation with a heat only boiler.

Megaflo Eco SystemReady

Includes factory-fitted plumbing and wiring for installation with system boiler.

Type

Many options available, insert requirement from manufacturer's literature.

Accessories

None

Boost immersion heater pack

For 210i, 250i and 300i models.

Danfoss TP5000 room programmer

For Megaflo Eco SystemReady.

Danfoss TP9000 room programmer

For Megaflo Eco SystemReady.

De-stratification loop kit

For Megaflo Commercial.

Pressure gauge

For Megaflo Commercial.

Sunvic 3 channel programmer (Select 307XLS)

For Megaflo Eco SystemReady.

Temperature gauge

For Megaflo Commercial.

Standard product features

Energy related Products (ErP) rating:

B/C dependent on model, consult manufacturer's literature for information.

Technical characteristics:

Dependent on model, consult manufacturer's literature for information.

Product Options

Capacity:

Available from 70–3500 L dependent on model, consult manufacturer's literature for information.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
