Adjustable Pedestal for Paving - Mega Balance

Verified by manufacturer 3 days ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Load Tolerance Test Certificate

    Certificate type

Heavy-duty Self-Levelling Pedestal covering heights from 25mm to 1,025mm

Jump to:
+44 (0)20 8916 2222 Website

Application

  • Raised paving, particularly heavy-duty applications.
  • Particularly suited to high traffic areas.
  • Ideal for where a large void underneath the tile needs to be created. Over a metre can be achieved.
  • Not suitable for Class A Fire rated projects (see Wallbarn's other fire rated pedestals).

Description

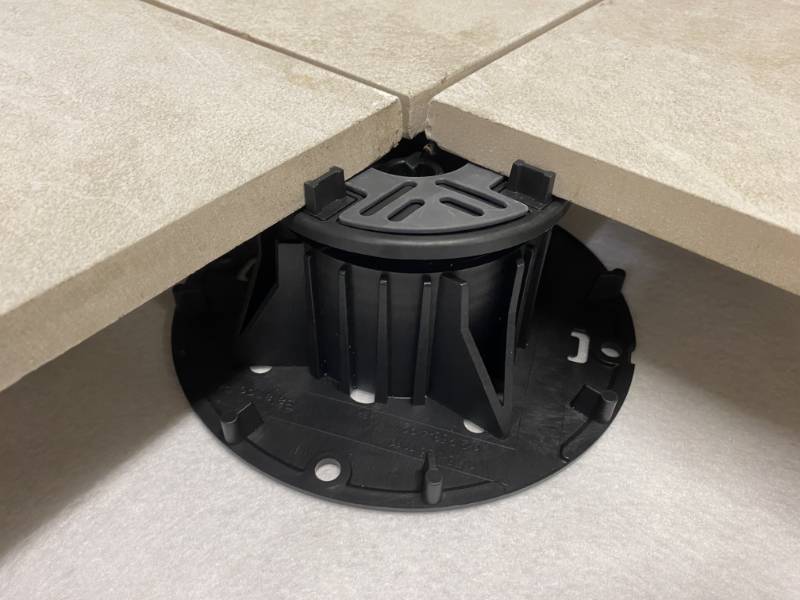

Heavy-duty self-levelling adjustable height pedestals for paving.


Features and benefits:

  • Designed for heavy loads.
  • Height range of 25–1025 mm.
  • The self-levelling headpiece is used to accommodate differences in the deck surface below the pedestal.
  • Suspended system.
  • Fully adjustable; top key system for in-situ adjustments.
  • Compatible with the cross-rail system for additional support (pedestal/ rail specified as a separate product).
  • Also available as a decking pedestal, specified separately.
  • The Stainless Steel "Key" allows for adjustment in height of the pedestal without having to lift the paving slab leading to health & safety improvement.
  • The "grey nut" can be inserted to lock off the self-levelling head to create a fixed headpiece.
  • Melt flow rate (to ASTM D1238): 14–16 g/10 minutes.
  • Heat deflection test with load of 1820 kPa (to ASTM D648): >90°C.
  • Maximum weight tolerance at minus 40°C (to CATAS 179112 / 1): 27.830 N.


Paving-specific:

  • Self-levelling headpiece incorporates four positioning lugs (fins) laid out in a crucifix formation set towards the edges.
  • The headpiece also comprises four separate parts created to allow up to a 5% or 2.86° slope correction in all directions.
  • The mechanism at the bottom of the headpiece allows smooth movement and positioning of the paving slab.
  • The lugs (fins) separate paving slabs and tiles on the headpiece to allow sufficient drainage between slabs (4mm).
  • This creates a uniform paving line so the slabs are laid completely straight.
  • A rubber anti-shock pad slots is included on the headpiece which has a series of ridges to give better grip to the slab and help insulate against vibration and noise travelling through the pedestal to the deck beneath.

General information

Color

Black

Finish

Matt

Material

Polypropylene

Shape

Other

Circle

Length

200 mm

Manufacturer guidance

The base diameter of the Mega Balance Pedestal is 200mm. This range has multiple height adjustments.

Width

200 mm

Manufacturer guidance

The base diameter of the Mega Balance Pedestal is 200mm. This range has multiple height adjustments.

Height

25 mm

75 mm

125 mm

225 mm

325 mm

Show more

Warranty description

15 year

Guidance for specification option:

Limited warranty

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

Q37/460 Support pedestals

J42/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J31/80 Precast concrete paving slabs

J31/377 Support system for paving slabs or tiles

J31/375 Paving tiles

J31/370 Precast concrete paving slabs

J21/85 Precast concrete paving slabs

J21/467 Support system for precast concrete paving slabs

Product range

Substructure for Paving and Decking Systems
Pedestals for Paving and Decking

Specification data - Decking and paving pedestals

Pedestal type

Adjustable.

Grade

2057 kg.

Guidance for specification option:

Maximum load (20 713 N).


End of linear behaviour: 1560 kg (15 300 N).

Material

Polypropylene.

Adjustment

25–30 mm.

30–37 mm.

37–50 mm.

50–75 mm.

75–125 mm.

125–225 mm.

225–325 mm.

325–425 mm.

425–525 mm.

525–625 mm.

625–725 mm.

725–825 mm.

825–925 mm.

925–1025 mm.

Accessories

None.

1% slope corrector.

2% slope corrector.

3% slope corrector.

Self-levelling anti-shock shim.

Metal Edge Plate.

Metal Profile Plate.

Levelling Shims (1 mm and 2 mm).

Dimensions

Head piece: 150 mm; screw: 140 mm; base: 200 mm.

Density

0.99–1.04 g/cm³.

Guidance for specification option:

To ASTM D792 Method A.

Fire classification (EN 13501-1)

Euroclass E.

Guidance for specification option:

As standard. Class B1-rated pedestals can be manufactured upon request; consult manufacturer for details.

Vicat softening temperature

Softening point with load of 5 kg: >75°C.

Guidance for specification option:

To ASTM D1525.

Impact resistance

Izod test, at 23°C: >40 J/m; at -20°C: >20 J/m.

Guidance for specification option:

To ASTM D256.

Elasticity

Coefficient of elasticity to ASTM D790: 1600 MPa.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Guidance for specification option:

Polypropylene.

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Load Tolerance Test Certificate

Load Tolerance Test Certificate

Certification - Mega Balance Load Test
