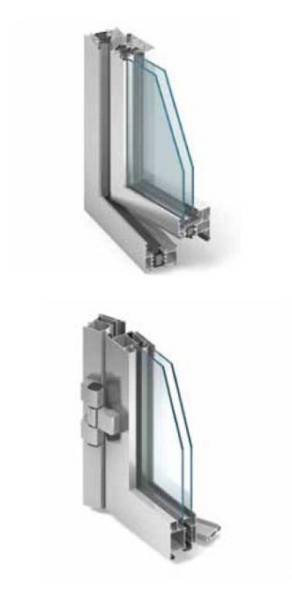

MB60, MB60E, MB60 HI MB60 Industrial And MB60 Industrial HI Doors
Description

The MB-60 is a stable, universal and complete window and door system for any application requiring enhanced thermal performance requirements. Its wide selection of compatible components enables the construction of various elements, from basic thermally insulated windows and doors to pivot and concealed sash windows, industrial-type windows with a steel-like lookout and security doors. The majority of system varieties are available in both standard and HI versions with increased thermal insulation properties.

MB-60/ MB-60HI:

Profiles in the basic MB-60 system have a three-chamber structure and an omega-type thermal barrier. The system is also available in a version with improved thermal insulating power (MB-60 HI), obtained due to the use of special insulation inserts inside sections and under panes.

MB-60E:

Economical system for making thermally insulated doors and sets of windows and doors.

Features and benefits:

  • Hidden vent option.
  • One or two leaf doors, open in or open out.
  • Large size door constructions available.
  • Glazing thickness of up to 50 mm.
  • Burglar-resistant secure door options.
  • Low cost.
  • Various finish and dual colour options.
  • Multi-point locking.
  • Eurogroove which broadens the choice of hardware available.
  • Compatible with other Aluprof MB systems, allowing total design flexibility and project solutions.
  • Compliance with CE marking requirements.

Performance:

  • Air permeability: Class 4. For MB-60E: Class 3.
  • Wind load resistance to EN 12211:2001 and EN 12210:2001: Class C5. For MB-60E: Class C1.
  • Impact resistance: Class 3.
  • Watertightness to EN 1027:2001 and EN 12208:2001: Class E900. For MB-60E: Class E1200.
  • Thermal insulation (Uf) from 1.4 W/(m²K). For MB-60E from 2.8 W/(m²K).

General information

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets Enhanced data

Product Reference

MB-60 Door

MB-60E Door

MB-60 HI Door

Type

Open in

Open out

Door leaf

-

Type

Double leaf

Single leaf

Glazing/ Infill details

-

Thickness

14–50 mm. For MB-60E: 5–41 mm.

Other requirements

None

Hidden vent

Standard product features

Technical characteristics:

  • Depth of frame: 60 mm.
  • Depth of leaf: 60 mm.
  • Frame visible width 'T' profile: 51 mm (minimum). For MB-60E: 41.5 mm (minimum).
  • Leaf visible width 'T' profile: 72 mm (minimum). For MB-60E: 67 mm (minimum).
  • Size (h x w): 2400 x 1200 mm (maximum). For MB-60E: 2300 x 1300 mm (maximum).
  • Weight: 120 kg (maximum).
