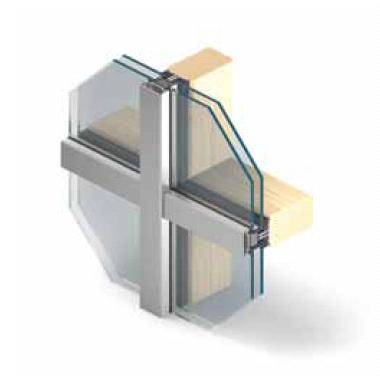

MB-SR50 A Facade System


A part-facade system which only involves the front section; to be fixed to a new or existing structure which is manufactured from other material, i.e. timber or steel.

Features and benefits:

  • Glazing of up to 40 mm (maximum).
  • Large, wire-free glass areas.
  • Wide range of finish options.
  • Straightforward to fabricate and install.
  • Selection of face caps available to enable flexibility of design.
  • A range of overlaying profiles of different shapes.
  • Large selection of different windows and doors incorporated in the curtain walls, including a concealed window.
  • Burglar resistance, class WK2 and WK3.
  • Compliance with CE marking requirements.


  • Air permeability to EN 12153:2003 and EN 12152:2002: AE1200.
  • Watertightness to EN 12155:2003 and EN 12154:2002: Class RE1500.
  • Wind load resistance to EN 12179:2002 and EN 13116:2002: 2400 Pa.
  • Thermal insulation (Uf): Measured individually.

General information

Uniclass 2015

Ss_25_10_20_85 Stick curtain walling systemsPrimary


H11/110 Curtain walling

Specification data - Stick curtain walling systems

Product Reference

MB-SR50 A Facade System




5–40 mm available.

Standard product features

Technical characteristics:

  • Mullion and transom depth: 5 mm.
  • Inertia mullions and transoms (range lx and lz): 0.79 cm⁴
