MB-60E EI Fire Door

Description

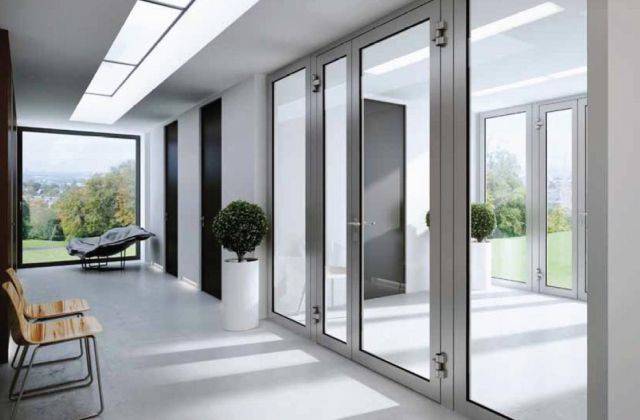

MB-60E EI is designed to fabricate internal or external single and double fire-rated doors.

Constructions fabricated based on MB-60E EI can be classified 'fire-resistant', EI 15 and EI 30 to PN-EN 13501-2+A1:2010, and non-fire-spreading (NRO).

The product is based on aluminium profiles with a thermal break (system MB-60E). The structural depth of profiles is 60 mm. The fire resistance of the construction is assured by its fire insulation components that are mounted in internal chambers of its profiles. In addition, constructions are equipped with intumescent tapes, which stop the fire from spreading.

All common fire-resisting glass classified EI15 and EI30 (thickness from 5 to 41 mm) can be accommodated. Unlike other fire-resisting systems, MB-60 E EI glass is fastened to the inner face using glazing strips. Special steel elements are an important element in securing the glass before it falls out during a fire.

Features and benefits:

  • MB-60E-based, which enables the use of elements that are common to both systems.
  • Enables the glazing of typical fire-resistant glass panes ranging from 5–41 mm.
  • From-the-inside glazing with glazing strips.
  • Pre-fabrication is quick and easy.

Performance:

  • Air permeability to PN-EN 12207:2001: Class 2.
  • Watertightness to PN-EN 12208:2001: Class 3A.

General information

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets

Product Reference

MB-60E EI Fire Door

Type

Double fire-rated door

Single fire-rated door

Glazing/ Infill details

-

Thickness

5–41 mm available.

Standard product features

Technical characteristics:

  • Frame and leaf width: 60 mm.
  • Frame visible width 'T' profile: 62.5/ 55 mm (minimum).
  • Leaf visible width 'T' profile: 67/ 76 mm (minimum).
  • Size of door leaf/ wall area (h x w): 2475 x 1400 mm (maximum).
  • Weight of door leaf/ wall area: 120 kg (maximum).
