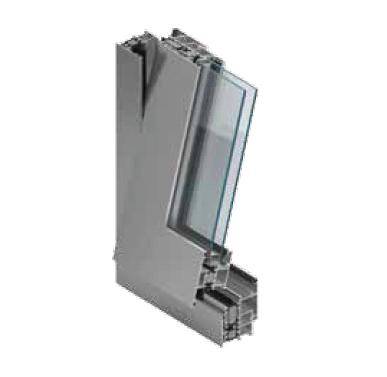

MB-59S Pivot And Pivot HI Windows


The MB-59S system has been designed to provide an integrated window and door system, allowing flexibility of design whilst providing good thermal and acoustic insulation. The pivot window is available horizontally or vertically, which makes it an appropriate window for most applications. The compliance with safety and ventilation requirements makes the pivot a suitable choice for hospitals, schools and offices. It is compatible with curtain wall systems for enabling the easy and intuitive assembly to already set walls. Also available as a high thermal insulation version (HI).

Features and benefits:

  • A wide range of finishes and colours available, including anodized, powder-coated and Decoral wood grain finish. Dual colour option available.
  • Eurogroove to broaden the choice of hardware available.
  • Compatible with other Aluprof’s MB systems, allowing total design flexibility and project solutions.
  • Compliance with CE marking requirements.


  • Air permeability to EN 1026:2001 and EN 12207:2001: Class 4.
  • Wind load resistance to EN 12210:2001: CE2400.
  • Watertightness to EN 1027:2001 and EN 12208:2001: AE750.

General information

Uniclass 2015

Pr_30_59_98_02 Aluminium window unitsPrimary


L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Product Reference

MB-59S Pivot And Pivot HI Windows

Glazing details



4.5–31.5 mm available.

Standard product features

Technical characteristics:

  • Depth of frame: 50 mm.
  • Depth of leaf: 59 mm.
  • Frame visible width 'T' profile: 47.5 mm (minimum).
  • Leaf visible width 'T' profile: 77.5 mm (minimum).
  • Size (h x w): 2000 x 2400 mm (maximum).
  • Weight: 180 kg (maximum).
