MB-59S, MB-59S HI and MB-SE Door
Description

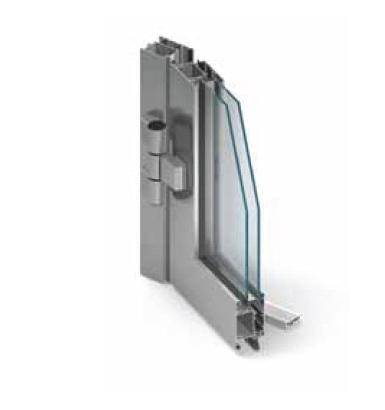

The MB-59S system has been designed to provide an integrated window and door system, allowing flexibility of design whilst providing good thermal and acoustic insulation. Also available as a high thermal insulation version (HI).

MB-59SE:

Designed for economy doors and a combination of doors and windows that meet enhanced performance requirements.

Features and benefits:

  • Single or double doorsets available in open in or out.
  • Wide range of finishes and colours available, including anodized, powder-coated and Decoral wood grain finish. Dual colour option available.
  • Eurogroove to broaden the choice of hardware available.
  • Compatible with other Aluprof’s MB systems, allowing total design flexibility and project solutions.
  • Compliance with CE marking requirements.

Performance:

  • Air permeability to EN 1026:2001 and EN 12207:2001: Class 4. For MB-59SE: Class 2.
  • Wind load resistance to EN 12211:2001 and EN 12210:2001: C3. For MB-59SE: C2.
  • Impact resistance: Class 3. For MB-589SE: Class 4.
  • Watertightness to EN 1027:2001 and EN 12208:2001: Class E 1500. For MB-59SE: 3A.
  • Thermal insulation (Uf) from 1.8 W/(m²K). For MB-59SE: from 2.7 W/(m²K).

General information

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets Enhanced data

Product Reference

MB-59S Door

MB-59S HI Door

MB-SE Door

Type

Double doorset

Single doorset

Glazing/ Infill details

-

Thickness

4.5–31.5 mm.

Standard product features

Technical characteristics:

  • Depth of frame: 50 mm.
  • Depth of leaf: 50 mm.
  • Frame visible width 'T' profile: 36.5 mm (minimum). For MB-59SE: 45.5 mm (minimum).
  • Leaf visible width 'T' profile: 72.5 mm (minimum). For MB-59SE: 67.5 mm (minimum).
  • Size (h x w): 2300 x 1100 mm (maximum). For MB-59SE: 1000 mm (maximum).
  • Weight: 100 kg (maximum).
