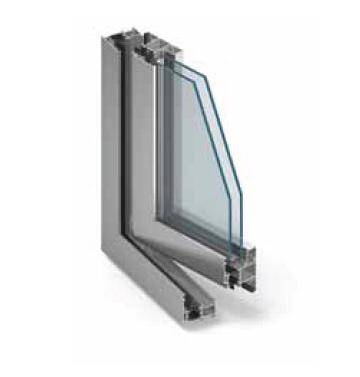

MB-59S and MB-59S HI Windows

Description

The MB-59S system has been designed to provide an integrated window and door system, allowing flexibility of design whilst offering good thermal and acoustic insulation. Available in various options for window projects. Also available as a high thermal insulation version (HI).

Features and benefits:

  • Window options include open-in side-hung, bottom-hung, pivot tilt-and-turn and slide-and-tilt. The Casement derivative provides open-out options of top-hung and side-hung.
  • A wide range of finishes and colours available, including anodized, powder-coated and Decoral wood grain finish. Dual colour option available.
  • Eurogroove to broaden the choice of hardware available.
  • Compatible with other Aluprof’s MB systems, allowing total design flexibility and project solutions.
  • Compliance with CE marking requirements.
  • Economical and functional.
  • Suitable for a variety of applications.

Performance:

  • Air permeability to EN 1026:2001 and EN 12207:2001: Class 4. For MB-59SE: Class 2.
  • Wind load resistance to EN 12211:2001 and EN 12210:2001: C3. For MB-59SE: C2.
  • Impact resistance: Class 3. For MB-589SE: Class 4.
  • Watertightness to EN 1027:2001 and EN 12208:2001: Class E 1050. For MB-59SE: 3A.
  • Thermal insulation (Uf) from 1.8 W/(m²K). For MB-59SE: from 2.7 W/(m²K).

General information

Uniclass 2015

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Product Reference

MB-59S Window

MB-59S HI Window

Type

Bottom-hung

Open-in side-hung

Open-out side-hung

Open-out top-hung

Pivot tilt-and -urn

Slide-and-tilt

Glazing details

-

Thickness

4.5–31.5 mm for fixed windows. 4.5–40.5 mm for opening windows.

Standard product features

Technical characteristics:

  • Depth of frame: 50 mm.
  • Depth of leaf: 59 mm.
  • Frame visible width 'T' profile: 47.5 mm (minimum).
  • Leaf visible width 'T' profile: 34.5 mm (minimum).
  • Size (h x w): 2300 x 1100 mm (maximum).
  • Weight: 130 kg (maximum).
