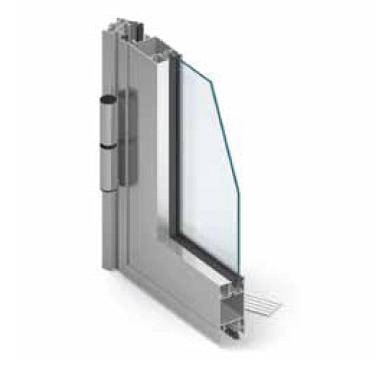

MB-45s Door
Description

MB-45s is a non-thermally broken door system. Can be used externally where no thermal insulation is required, and also internally as a partition system. With a broad selection of profiles, MB-45 offers a variety of possible uses, and combines cost efficiency with minimum basic depths.

Comprises the elements of wall partitions and doors fitted with mortice hardware.

Features and benefits:

  • Doors available as a single and double leaf, open in and open out.
  • Flexible design.
  • Light construction; easy to install.
  • Mortice hardware.

Suitable for medium traffic applications, including the retail and commercial sectors.

General information

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets Enhanced data

Product Reference

MB-45s Door

Type

Open in

Open out

Door leaf

-

Type

Double leaf

Single leaf

Glazing/ Infill details

-

Thickness

2–25 mm available.

Standard product features

Technical characteristics:

  • Depth of frame: 45 mm.
  • Depth of leaf: 45 mm.
  • Frame visible width 'T' profile: 66.5 mm (minimum).
  • Leaf visible width 'T' profile: 72 mm (minimum).
  • Size (h x w): 2400 (2200) x 1250 (1400) mm (maximum).
  • Weight: 130 kg (maximum).
