Description

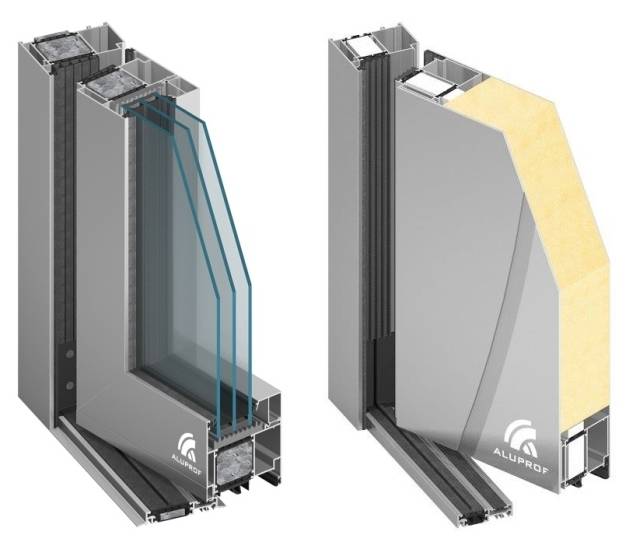

Thermally broken aluminium doors. The product is intended for the fabrication of external structure elements such as various types of windows, balcony doors, shop fronts and spatial structures, which are highly resistant and characterized by excellent water and air tightness, and thermal and acoustic insulation performance.

Features and benefits:

  • Excellent weather tightness and thermal insulation performance.
  • A wide range of glazing available, up to 72 mm thick.
  • Can use surface, roller or concealed hinges.
  • Expansion joint profiles for the door leaf.
  • 95 mm-wide threshold – the threshold and the frame have the same width.
  • Anti-burglary windows and doors up to RC3 class to EN 1627.
  • Available up to 1400 mm wide and 3000 mm high.
  • Can be integrated with Aluprof Facade Systems.
  • Different internal and external frame colours are available.
  • Can be used with the MB-104 suite of window systems.

Performance:

  • Air permeability to PN-EN 12207:2001: Class 4.
  • Wind load resistance to PN-EN 12210:2001: C4/ B5.
  • Watertightness to PN-EN 12208:2001: Class E1200 Pa.
  • Thermal insulation (Uw) from 0.53 W/(m²K). For panel door MB-104 Passive Aero casement size 1230 x 2180 mm.

To view product visualisations, please consult manufacturer's website.

General information
Size

Insert requirements.

Uniclass 2015 Metal doorsets (Pr_30_59_24_52)
Specification data
Product Reference

MB-104 Passive Aero Door

MB-104 Passive Aero Panel Door

MB-104 Passive SI Door

MB-104 Passive SI Panel Door

MB-104 Passive SI+ Door

MB-104 Passive SI+ Panel Door

Size

Insert requirements.

Door leaf -
Type

Double, opening inward

Double, opening outward

Single, opening inward

Single, opening outward

Finish as delivered

Anodized

Minimum thickness: 25 μ.

Polyester powder coated, colour

Minimum standard thickness: 60 μ. Insert colour requirements.

Frame and architraves -
Type

Insert requirements.

Finish as delivered (internal)

Anodized

Minimum thickness: 25 μ.

Polyester powder coated, colour

Minimum standard thickness: 60 μ. Insert colour requirements.

Finish as delivered (external)

Anodized

Minimum thickness: 25 μ.

Polyester powder coated, colour

Minimum standard thickness: 60 μ. Insert colour requirements.

Glazing/ Infill details -
Type

Insert requirements.

Thickness

See 'Options' below and insert requirements.

Manifestation

Insert requirements.

Beading

Internal prestige

Internal standard

Internal style

Hinges

Concealed hinges

Three-part barrel hinges

Three-part surface mounted hinges

Two-part surface mounted hinges

Thresholds

Automatic drop down

Frame

High thermal performance

Low level with ramp, thermally broken

Low level, thermally broken

Ironmongery

Electric multi-point lock with access control entry accessories

Various options available, consult manufacturer for details.

Electric strike single point locking

Emergency exit (to EN 179)

Multi-point locking

Panic escape (to EN 1125)

Single point locking

Perimeter seals

EPDM weather seal

External mastic seal

Internal mastic seal

Other requirements

Insert requirements.

Fixing

MB-104 door systems are to be installed in accordance to the Aluprof manuals and BS EN 8213-4 (always check for latest edition). All products must be installed by approved Aluprof fabricators. Consult manufacturer for further details.

Product Options

Door leaf/ Frame and architraves:

- Finish as delivered:

A large range of RAL and other colours are available. Consult manufacturer and insert requirements.

Glazing/ Infill details:

- Thickness:

  • Panel doors can achieve 39.5–84.5 mm glazing thickness.
  • Standard doors can achieve 26.5–71.5 mm glazing infill.
  • Fixed frame/ sidelight can achieve 26.5–71.5 mm glazing infill.

Consult manufacturer for further information.
