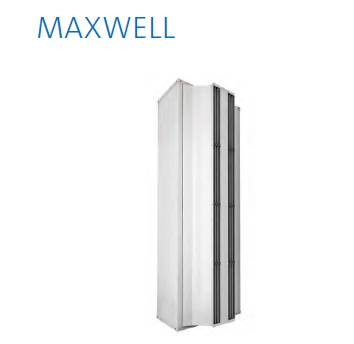

Maxwell Air Curtain
MXW 1500 A

Name: Maxwell Air Curtain
Brand: JS Air Curtains
SKU: 5YPxMAX7Djmq8y1hG6sdAN

An industrial, horizontal or vertical air curtain.

Jump to:

Application

Suitable for loading bays, hangars and factories with wide entrances.

An industrial, horizontal or vertical air curtain.

Features and benefits:

The Maxwell air curtain has “Coanda” effect double outlets to help achieve an increased air jet velocity.
Its adjustable pitch angled outlet aerofoil shaped vanes make it suited for larger industrial doorways.

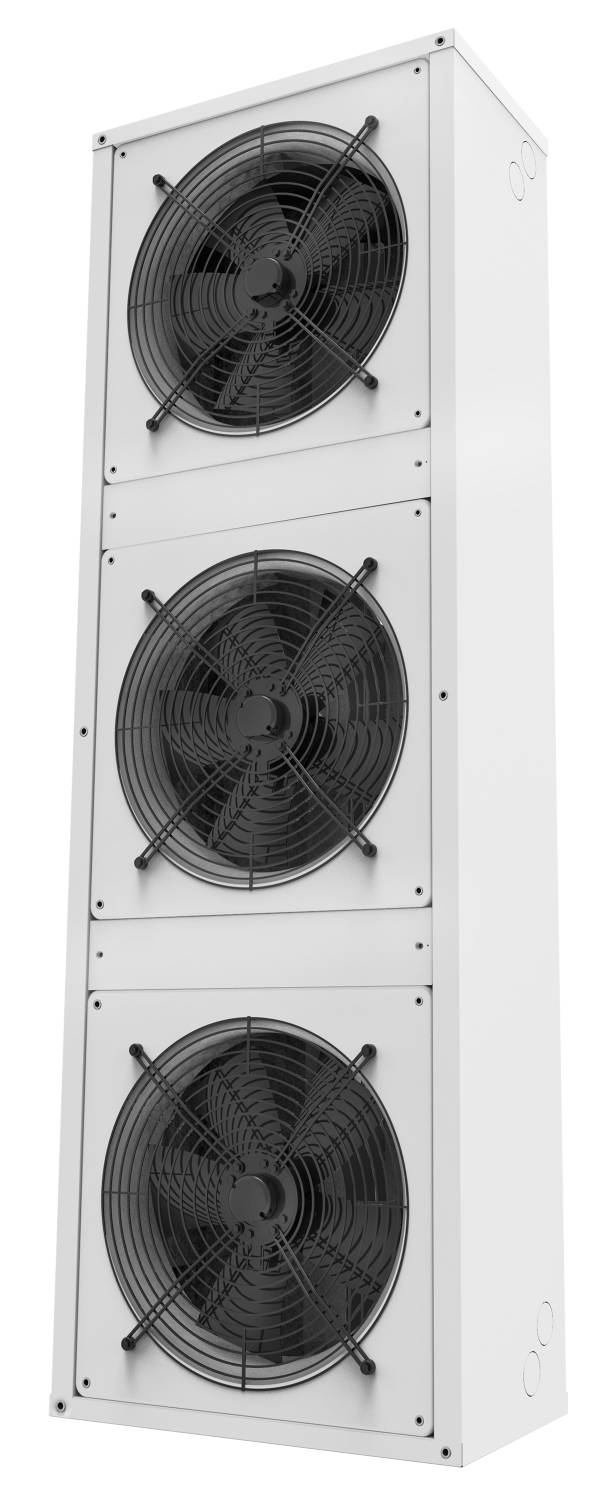

Constructed in galvanised steel, this high-performance air curtain has efficient, low noise axial fans driven by an external rotor motor.
Can be joined together through its multiple modules to cover loading bays, hangars and factory wide entrances.
A standard manual controller and 10 metres of control cable are included. Other control options available include the Clever controller or the BMS interface.
Tested to AMCA 220-05.

Shape	Rectangle
Color Other colours available. Consult manufacturer and insert requirements.	White RAL9016 as standard.
Finish	Galvanised
Material	Steel
Size	1500 x 660 x 361 mm 2000 x 660 x 361 mm 2500 x 660 x 361 mm 3040 x 660 x 361 mm 3620 x 660 x 361 mm

Uniclass	Pr_70_60_36_02 Air curtainsPrimary

Heating method	Air.
Arrangement	Horizontal, vertical.
Output	0.68 kW.
Air volume	7000 m³/h.
Mounting height	6 m (maximum).
Casing finish	Galvanized.
Accessories	Not required. Clever control. BMS interface.
