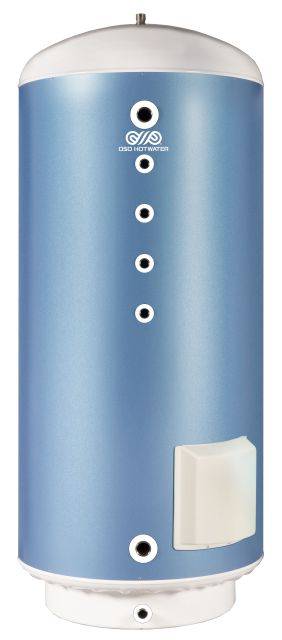

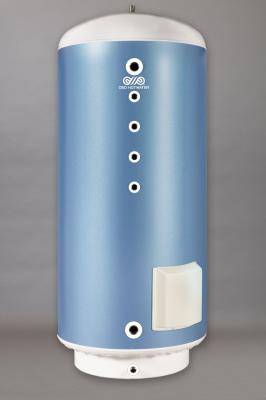

Maxi Standard

Hot water cylinder suitable for most commercial hot water demands.

Maxi Standard is constructed with Everlast™ high-alloy stainless steel in combination with Ultraweld™ technology for optimal corrosion resistance.

Maxi Standard is heated with either the integrated electric Incotec immersion heaters, or via an external energy source and the Turbosystem with plate heat exchanger and double sets of pumps for extra operational safety. The electric immersion heaters have optional effect 5–15 kW, 230–400 V + N three-phase, and is thermostat controlled 60–90°C in three steps with separate safety thermostats.

Features and benefits:

• High-grade Nanopur™ (MS 400) or Isoflex + vacuum insulated panel (VIP) (MS 600 and MS 1000) insulation.

• Extreme operational durability with electric heaters

• Flexible choice of energy source with Turbosystem.

• 10 bar design pressure and high corrosion resistance.

• High durability in hard water.

• Solar/ hot water connection.

• Separate solar connection.

Components:

• Mixing valve.

• Thermostat - Adjustable 60–90°C, pre-set at 75°C.

• Safety valve - Temperature and pressure relief valve, 9 bar / 99°C, ¾" to drain

• Flow/ return connection - 2 x 1½" female BSP threads.

• Other connections - 4 x ¾" female BSP threads.

Applications:

Suitable for most commercial hot water demands.
