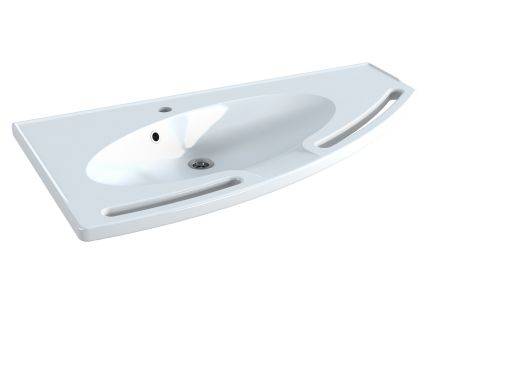

MATRIX angle wash basin - right facing R2040, left facing R2042
Verified by manufacturer 29 days ago
MATRIX Angle Wash Basin - Right-facing R2041
MATRIX Angle Wash Basin - Right-facing R2041
Right facing wash basin R2040, left facing wash basin R2042
Application
Suitable for use with MATRIX height adjustable or fixed basin supports R2015.
Description
Right or left facing wash basin with integrated handrail and optional overflow.
Features and benefits:
- Angled shape allows for large basin to be accommodated adjacent to toilet.
- Extra space on top for toiletries.
- Extra wide front hand grips - easy to grab from a variety of positions.
General information
Color | White |
Finish | Polished Guidance for specification option: High-polished, pore-free sanitary gel coating. |
Material | Marble Guidance for specification option: Cultured marble. |
Shape | Triangle |
Length | 1000 mm |
Width | 571 mm |
Height | 120 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Standard | To SR EN 14688. |
Overflow class | CL00 / CL10. |
Form | Wall hung wash basin. |
Materials | |
Body | Cultured marble. |
Finish and colour | Polished, white. |
Size | 1000 x 571 x 120 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | None. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Drain fitting.R2015 - support brackets.Guidance for specification option: Support brackets. R2010 - support brackets.Guidance for specification option: Support brackets. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Romania |
Country of product manufacture | Romania |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
Literature
Accessibility Solutions for Bathrooms
