Matelux®

Application

Ideal for interior (furniture) and exterior (façades and roofs). The thicker glazing options are available for use in balustrades and doors. The glazing is available in a range of options dependent on application required, contact manufacturer for more information.

Description

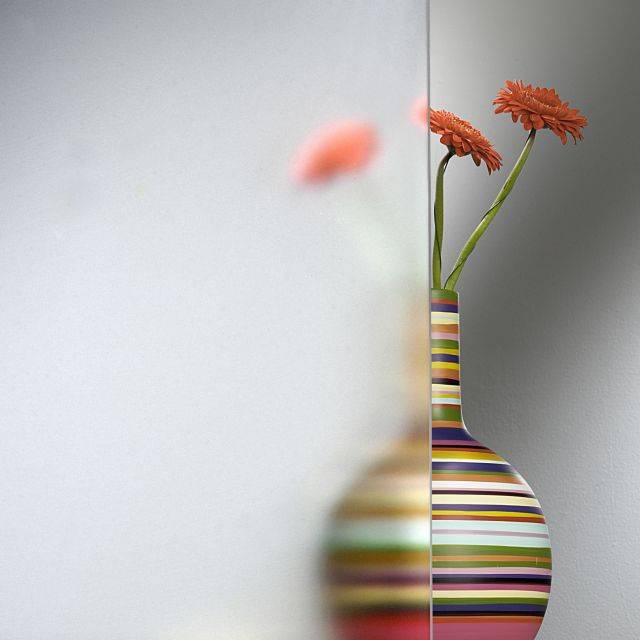

Matelux® by AGC Glass Europe is a translucent satin feel acid etched glass. Matelux® is a versatile product that can be toughened, laminated and assembled into double glazed units. An acid-frosting technique is used to gently obscure the surface of the glass. Treating the surface in this way guarantees translucent glass noted for its fine grain and makes it the perfect choice for shower screens and door panels where a level of privacy is required, Matelux® has the same light transmission as float glass, attaining levels of up to 90%, depending on its thickness.

GX Glass stock from 4–12 mm in the float version and 6 mm in the Clearvision low iron version. Matelux® glass can be manufactured with cut outs and holes and be CNC or water jet shaped to drawings or rigid templates and UV Bonded (subject to manufacturing tolerances). Gx Glass produces glass to British and European standards strength and flexibility in accordance with BS EN 12150 and safety up to BS EN 12600 Class 1.

Applications:

Ideal for interior (furniture) and exterior (façades and roofs). The thicker glazing options are available for use in balustrades and doors. The glazing is available in a range of options dependent on application required, contact manufacturer for more information.

Benefits:

  • Translucent, neutral satin-finish glass.
  • Acid-etching is favoured for its fine and homogenous grain.
  • High level of light transmission: Matelux® offers the same level of light transmission; it can be as high as 90% depending on the thickness of the glass.

General information

Size

[Size, Minimum: 50 x 50 mm (polished), 100 x 220 mm (polished and toughened); Maximum: 1730 x 3150 mm (toughened), 2400 x 3210 mm (non-toughened)]

-

Uniclass 2015

Pr_25_71_33_88 Thermally toughened glass sheetsPrimary

CAWS

H10/10 Patent glazing

H10/115 Patent glazing

H11/110 Curtain walling

H13/115 Structural glass assembly

L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/30 PVC-U windows

L10/31 PVC-U windows

L10/310 Steel windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/350 PVC-U windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/58 Secondary glazing system

L10/580 Secondary glazing system

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/280 Doors

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/460 Frameless glass doors

L20/480 Doorsets

L20/55 Doorsets

L30/20 Stairs

L30/270 Stairs

L30/30 Proprietary

L30/310 Proprietary

L30/50 Purpose-made balustrades

L30/55 Proprietary balustrades

L30/550 Purpose-made balustrades

L30/560 Proprietary balustrades

L40/210 Putty-fronted single-glazing

L40/230 Bead-fixed single-glazing

L40/250 Bead-fixed single-glazing

L40/260 Bead-fixed single-glazing

L40/310 Bead-fixed single-glazing

L40/330 Bead-fixed single-glazing

L40/350 Bead-fixed single-glazing

L40/370 Bead-fixed insulating glass units

L40/371 Bead-fixed insulating glass units

L40/372 Bead-fixed insulating glass units

L40/380 Bead-fixed insulating glass units

L40/381 Bead-fixed insulating glass units

L40/40 Putty-fronted single-glazing

L40/410 Single-glazing into grooves

L40/430 Single-glazing into grooves

L40/450 Single-glazing into grooves

L40/470 Zipper gasket glazing

L40/490 Single-sided gasket glazing

L40/495 U-profiled single-glazing

L40/496 U-profiled double-glazing

L40/50 Bead-fixed single-glazing

L40/530 Internal tape glazing

L40/55 Bead-fixed insulating glass units

L40/550 Glass mirrors

L40/57 Bead-fixed insulating glass units

L40/58 Bead-fixed insulating glass units

L40/90 Internal tape glazing

Specification data - Thermally toughened glass sheets

Product Reference

Matelux®

Type

Clear

Clear float glass, available 4 mm, 6 mm, 8 mm, 10 mm or 12 mm as standard.

Clearvision

Extra clear low iron glass, 6 mm as standard.

Thickness

Insert requirements.

Processing

Not required

Backpainted

Insert requirements.

Toughened

Edges

Polished edges

Standard.

Product Options

Size:

  • Minimum: 50 x 50 mm (polished), 100 x 220 mm (polished and toughened).
  • Maximum: 1730 x 3150 mm (toughened), 2400 x 3210 mm (non-toughened).
