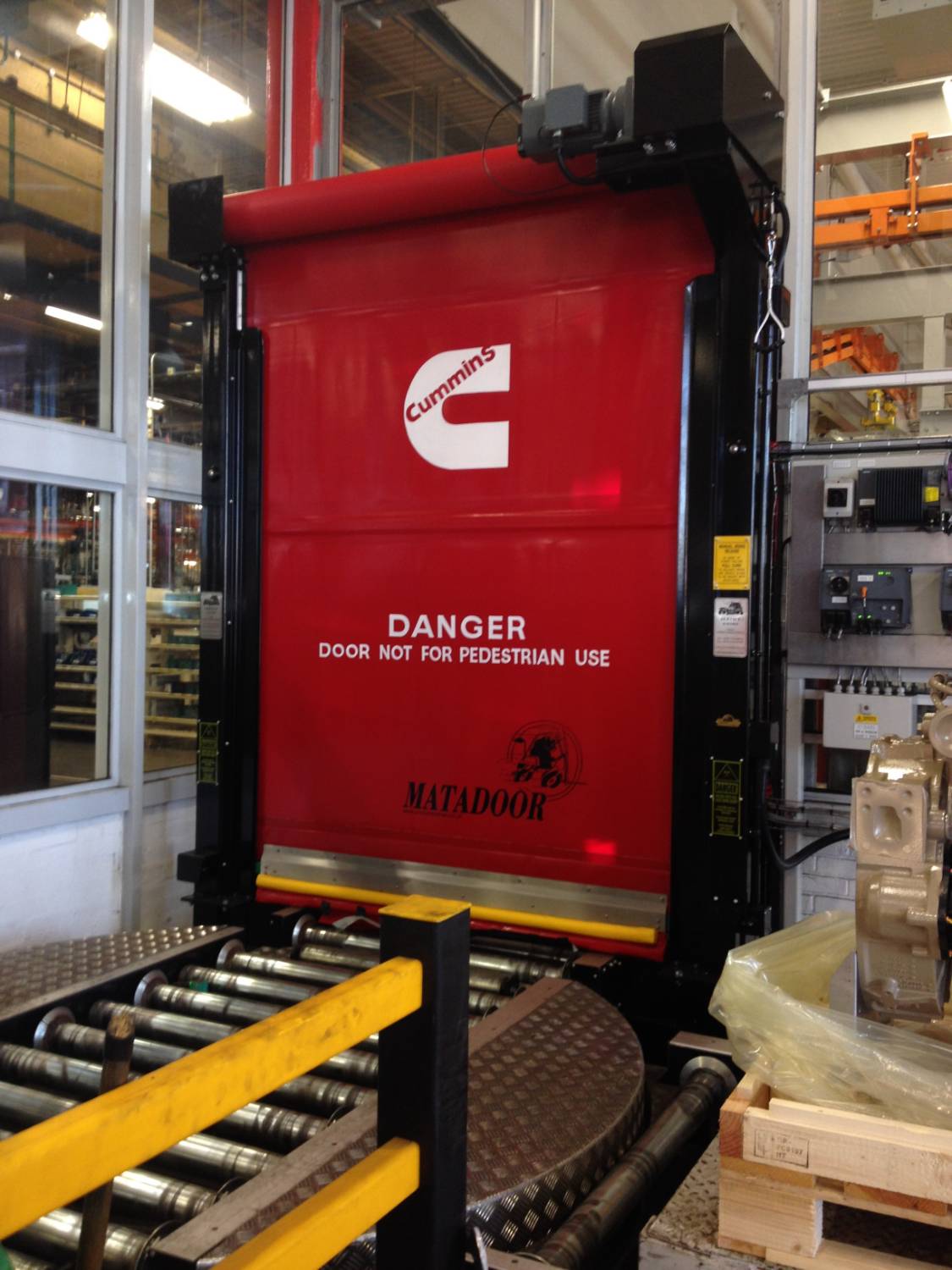

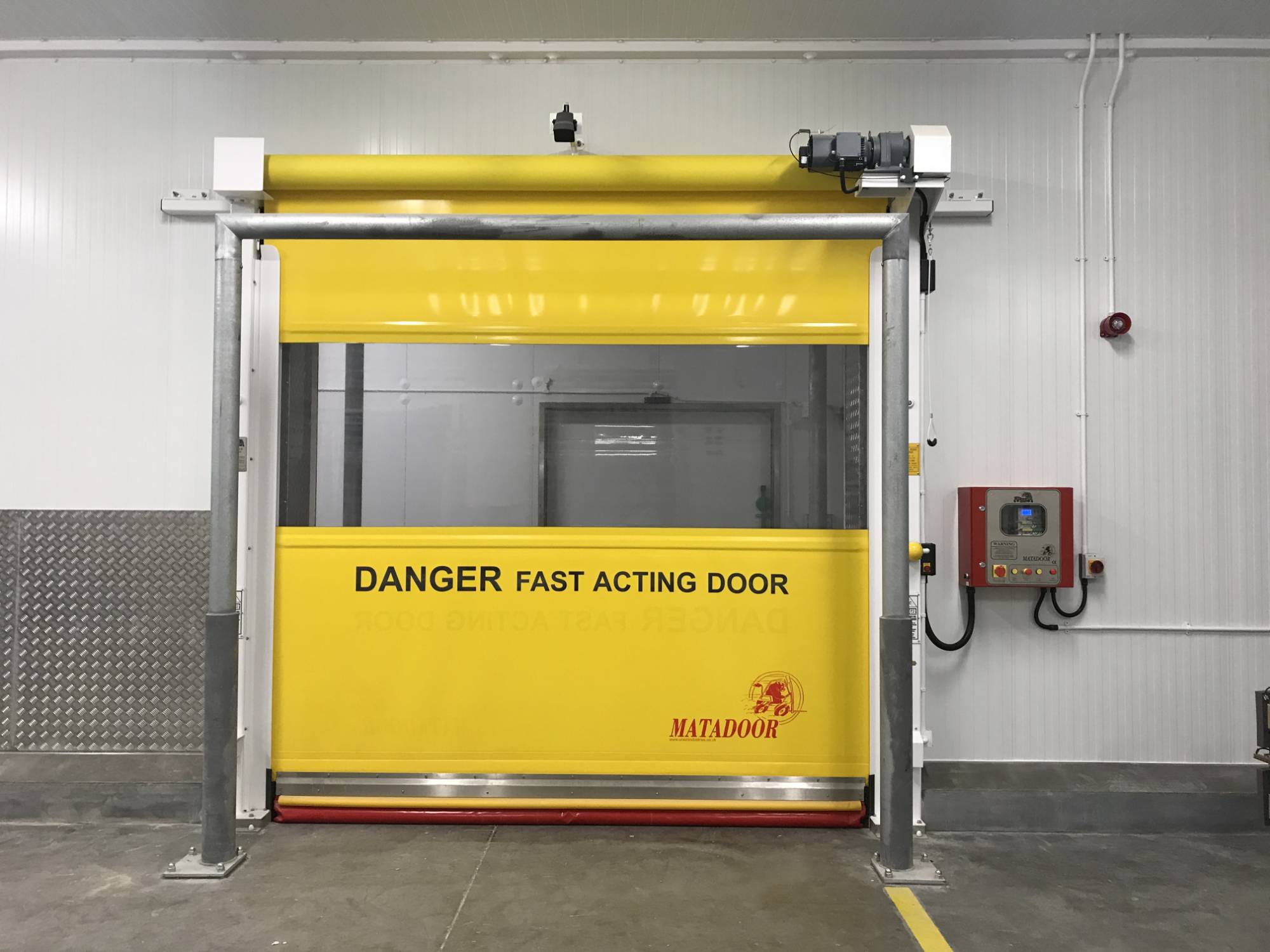

Matadoor High Speed Roller Door

Application

  • Suitable for high volume traffic in chilled and ambient applications.
  • Suitable for internal applications only.
  •  All Union Doors are designed and manufactured to order.
  • Contact Union Industries for bespoke requirements.

Description

Features and benefits:

  • For internal openings only.
  • Standard size range: up to 3.0 m wide and 3.5 m high
  • Ideal for frequently used doorways.
  • Suitable for ambient and chilled environments.
  • Opening speed typically 1.6 m/s.
  • Crash-Out and Auto-Reset damage protection feature.
  • Suitable for use by all traffic types.


Technical:

  • Door blade material ‘Ramskin’: 1.5 mm thick single-ply PVC-coated polyester monofilament with anti-static additive.
  • Door blade colour: available as standard in yellow, blue and red.
  • Top roller: 168 x 5 mm CHS steel tube terminating at each end with 30mm diameter EN24 stub shafts running in self-aligning bearing units.
  • Back bar and top seal: a steel cross member bolted to the columns carries the top fixing brackets and provides a fixing for the top seal and brush strip damper.
  • Columns and side guides: 5 mm wall, SHS steel columns with counterweight assisted opening. 125 mm deep pressed steel blade guides (bolt-on construction for quick and easy replacement).

General information

Color

Blade/Curtain colour.

Yellow

Red

Blue

Finish

Door frame.

Polyester powder coated

Poly Powder coat to any standard RAL colour, or 304 Stainless Steel.

Material

Door frames - 5mm SHS steel columns with press steel guides. Door blade - 1.5 mm PVC.

Steel

PVC

Shape

Rectangular

Size

3000x 3500 mm

3000 mm (W) x 3500 mm (H) maximum clear opening. Contact Union Industries for bespoke requirements.

WarrantyDescription

Lifetime warranty

12 month parts and labour inclusive warranty from commissioning of door, plus free-entry into the Lifetime Warranty scheme (25 year warranty option).

Uniclass 2015

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High speed doors

Specification data - High-speed doorsets Enhanced data

Speed (minimum)

-

Opening

Variable up to 1.6m/sec (maximum).

Closing

Variable up to 0.7m/sec (maximum).

Arrangement

Bespoke. Contact manufacturer.

Curtain material

‘Ramskin’: 1.5 mm thick single-ply PVC-coated polyester monofilament with anti-static additive.

Frame and guides

-

Material

Columns and side guides: 5 mm wall, SHS steel columns with counterweight assisted opening. 125 mm deep pressed steel blade guides.

Finish and colour

Grey, RAL 7043.

(any RAL colour available as an option)

Operation

Induction loop.

Radar.

Pull switch.

Radio control.

Push button.

Photocell proximity sensors.

PLC control.

Infrared

Accessories

Traffic lights.

Flashing beacons.

Audible warning devices.

Air-locks.

Text/signage.

Interlocks.

BMS outputs.

Bafety barriers.

Impact protection.

Bollards.

Standard

BS EN 13241

Drive

1.5 kW foot mounted brake geared motor unit.

Bottom bar

Rectangular hollow-section steel.

Safety

Double photo-electric cells.

Light curtains.

Manual brake release.

Product Reference

Matadoor High Speed Roller Door

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Steel framework and metal components widely recycled.

-

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
