This product is no longer available

Application

Suitable for horizontal, vertical and overhead application, as well as indoor and outdoor application. Can be used in the following areas:

  • Urban and industrial facilities for wastewater treatment, in both inflow and outflow areas.
  • Biogas plants.
  • Secondary containment in industry.
  • Pre-treatment and aeration tanks.
  • Sewage effluent pipelines.

Description

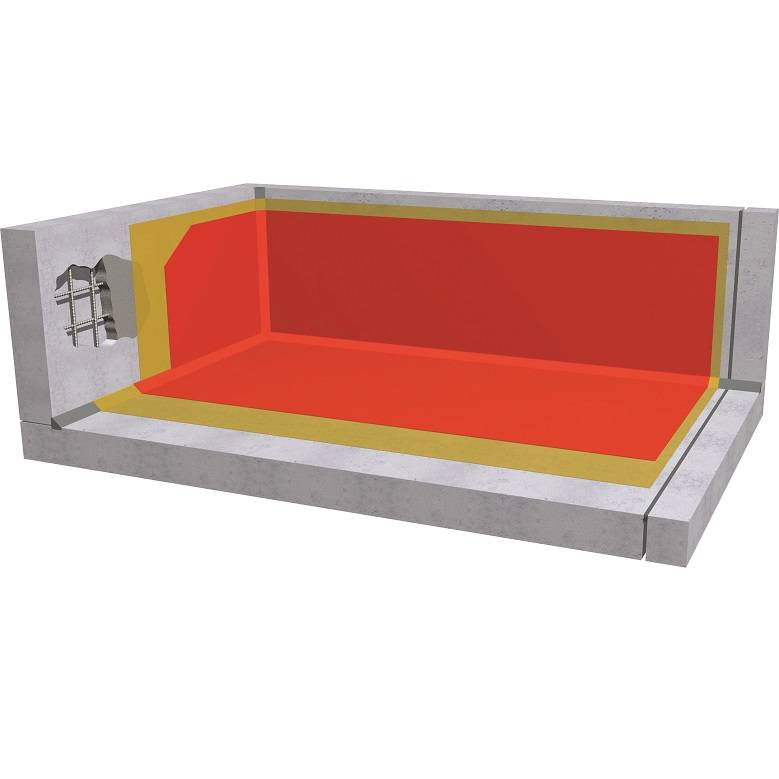

Waterproofing and concrete protection system for aggressive wastewater environments.

System components:

MasterSeal 7000 CR consists of two components, both based on Xolutec™ technology:

  • Primer MasterSeal P 770 (two-component). Acts as a bonding promoter.
  • Membrane MasterSeal M 790 (two-component). Crack-bridging.

Features and benefits:

  • Quick and easy application by roller or spray at temperatures from 5–35°C.
  • Fast curing properties, which reduces downtime and allows contact with water only 24 hours after application.
  • High abrasion and chemical resistance, including a resistance to high concentrations of biogenic sulfuric acid.
  • Has a high moisture tolerance, even when applied to humid substrates.
  • Crack-bridging for gaps of up to 0.7 mm, therefore helping to extend the life cycle of the concrete structure.
  • Available in two colours - both of which allow for safe application in areas with poor visibility.
  • Uses Xolutec™ technology, which aims to provide a durable solution in challenging environments by forming a cross-linked interpenetrating network (IPN). The technology enhances overall material properties, has extremely low volatile organic compounds (VOCs) and is quick and easy to apply.
  • Fully bonds to steel and concrete.
  • The system has been tested over a five-year period at the Fraunhofer Institute under conditions that simulate those of a real sewer. The results of the test show no significant changes on the properties of MasterSeal 7000 CR.

Applications:

Suitable for horizontal, vertical and overhead application, as well as indoor and outdoor application. Can be used in the following areas:

  • Urban and industrial facilities for wastewater treatment, in both inflow and outflow areas.
  • Biogas plants.
  • Secondary containment in industry.
  • Pre-treatment and aeration tanks.
  • Sewage effluent pipelines.

General information
Color

White

Features

Deep penetrating primer that can be applied onto damp but surface dry concrete

Uniclass 2015
Liquid tanking resins (Pr_35_31_68_47)Primary
Specification data - Liquid tanking resins
Product Reference

MasterSeal 7000 CR

Colour

Grey

Red

Standard product features

Thickness (approximately):

  • Primer MasterSeal P 770: 0.25 mm.
  • Membrane MasterSeal M 790: 0.7–0.8 mm.

Consumption (approximately):

  • Primer MasterSeal P 770: 0.3 kg/m².
  • Membrane MasterSeal M 790: 0.8–1 kg/m².

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 2.0
IFC
- 1 2.0
