Masonry Support System
Cavity tray system for placement over cavity bridging masonry support structures.
Description

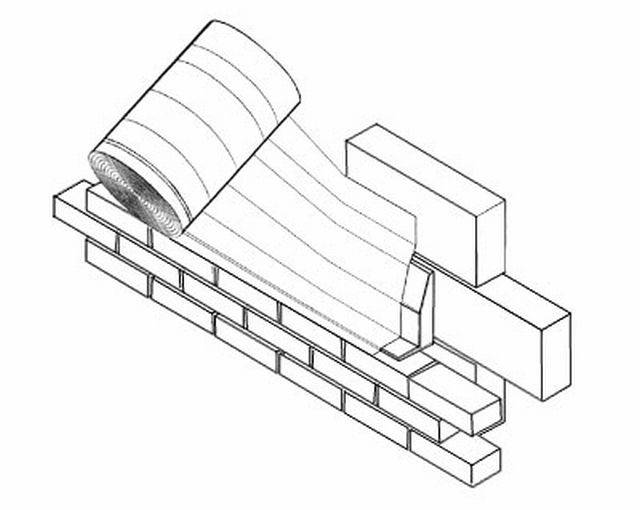

Masonry Support System is a range of standard and custom made pre-formed cavity trays for placement over cavity bridging masonry support structures.
It is advisable to supply Timloc with sectional drawings of the masonry support system to determine what profile cavity tray is required.
Features:
- Can be tailored to suit all types of masonry support systems.
- Once the cavity tray has been folded it maintains its profile, but still has the benefits and manoeuvrability of a traditional flexible system.
- Available in a range of pre-creased roll widths.
- Product will not extrude under loads up to the point of compressive failure of the wall.
- Product does not contain any pitch, tar or bitumen.
- User-friendly material for positioning directly over complex masonry support angle profiles and under pistol bricks, without encouraging masonry to be kicked forward.
General information
Features | Can be tailored to suit all types of masonry support systems Once the cavity tray has been folded it maintains its profile, but still has the benefits and manoeuvrability of a traditional flexible system Available in a range of pre-creased roll widths Product will not extrude under loads up to the point of compressive failure of the wall Product does not contain any pitch, tar or bitumen |
Material | 1 mm thick composition of ethylene propylene rubbers reinforced with polyester fibres. System accessories are manufactured from 2 mm thick polyethylene |
Uniclass 2015 | |
CAWS | F30/370 Preformed cavity trays F30/56 Preformed cavity trays |
Specification data - Preformed cavity trays
Product Reference | Masonry Support System |
Location | As shown on drawings |
Cavity width | 50 mm75 mm100 mm___ mm |
Cavity tray product code | MST100Roll width 450 mm, for walls with 100 mm cavity. MST50Roll width 450 mm, for walls with 50 mm cavity. MST75Roll width 450 mm, for walls with 75 mm cavity. MSTSPEC1Special 450 mm roll width, cavity as required. MSTSPEC2Special 600 mm roll width, cavity as required. MSTSPEC3Special 1000 mm roll width, cavity as required. |
Accessories | MSTLHSLeft hand stopend unit. MSTRHSRight hand stopend unit. MSTEX90External corner. MSTINT90Internal corner. MSTSPECCNRCorner special. MSTSPECSEStop end special. |
Standard product features | Material: 1 mm thick composition of ethylene propylene rubbers reinforced with polyester fibres. System accessories are manufactured from 2 mm thick polyethylene. |
