Marlow 21 Under-countertop Washbasin
Description

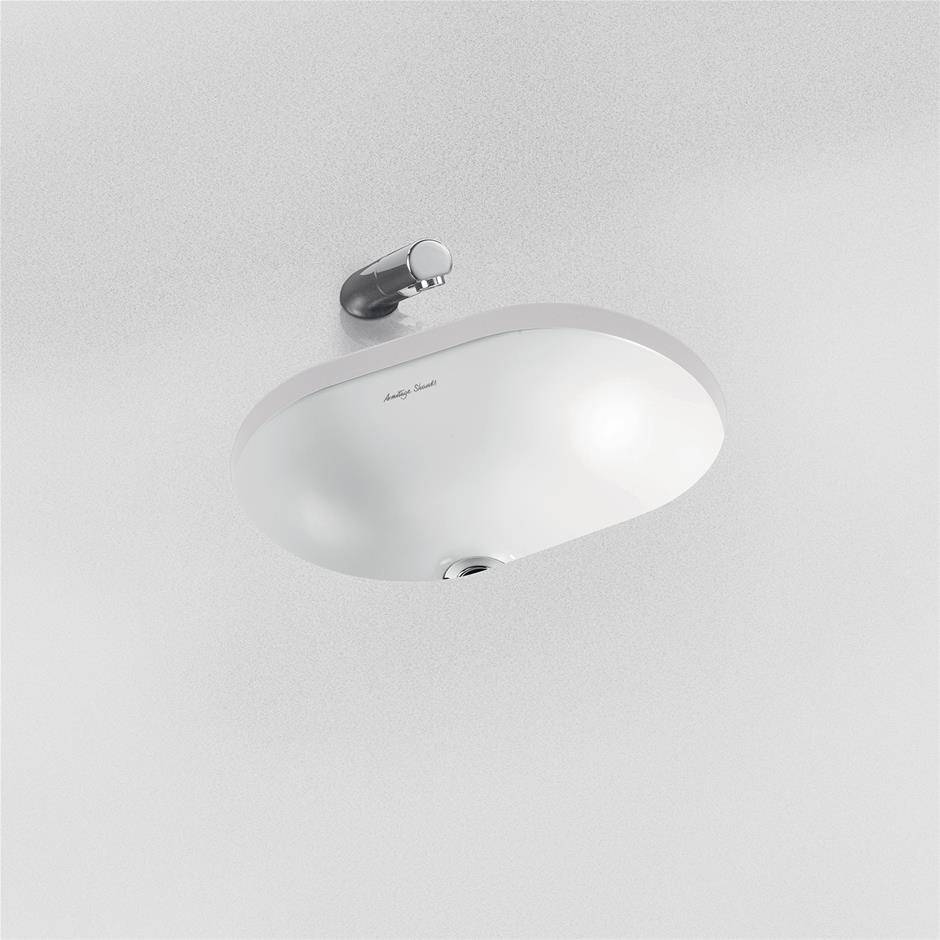

Marlow 21 Oval 48cm under-countertop washbasin with overflow

  • Domestic and commercial use
  • Modern oval design

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Color

White

Features

48 cm under-countertop washbasin, overflow

48 cm under-countertop washbasin, overflow, glazed underside

Material

Vitreous china

Shape

Oval

Size

479 x 350 x 175 mm

WarrantyDescription

Manufacturers warranty

CAWS

N13/335 Washbasins

Specification data

Product Reference

S2684 - Marlow 21 Oval 48/55cm Under-Countertop Washbasin

Marlow 21 Oval 48cm Under-countertop Washbasin, Overflow

S2685 - Marlow 21 Oval Under-countertop Washbasin

Marlow 21 Oval 55cm Under-countertop Washbasin, Overflow

S2692 - Marlow 21 Oval 48/55cm Under-Countertop Washbasin

Marlow 21 48cm Under-Countertop Washbasin

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Brassware

A4851 - Sensorflow 21 Compact Mixer

Sensorflow 21 Compact Washbasin Spout Integral Sensor, Battery

A4852 - Sensorflow 21 Compact Mixer

Sensorflow 21 Compact Washbasin Spout Integral Sensor, Mains

A4853 - Sensorflow 21 Compact Mixer

Sensorflow 21 Compact Washbasin Spout Integral Sensor, Link

B8260 - Washbasin Mixer

Piccolo 21 Single Lever 1 Hole Washbasin Mixer

Not required

Waste

S8733 - 1¼" Anti Theft Swivel Plug Waste

1¼" Waste, Swivel Plug, Slotted Tail

S8722 - 1¼" Brass Strainer Waste

1¼" Slotted Strainer Waste

S8803 - 1¼" Waste Click Plug

Waste Click Waste Slotted

Not required

Trap

E0079 - 1¼" Contemporary Bottle Trap

1¼" Contemporary Bottle Trap, 75mm seal

S8910 - Trap 1¼" Plastic Bottle

1¼"x75mm Seal Plastic Bottle Trap

S8920 - Trap 1¼" Plastic Bottle Resealing

1¼"x75mm Resealing Plastic Bottle Trap

Not required

Thermostatic Valve

A5900 - 15mm Thermostatic Mixing Valve

TMV Thermostatic Mixing Valve 15mm

Not required

Standard product features

Washbasin:

  • Capacity: 4.0 litres
  • Material: Fine Fireclay
  • Weight: 7.00 kg
  • Standards: Washbasin to BS EN 14688 & BS EN 31

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.60 kg
  • Flowrate: 3.70 lpm @ 3bar

Waste:

  • Material: Chrome Plated Metal
  • Weight: 0.22 kg

Trap:

  • Material: Plastic
  • Weight: 2.00 kg

Product Options

This washbasin is not suitable for separate pillar taps. Washbasin mounted on underside of countertop using fixing clips provided. Joint sealed using waterproof sealant (not supplied). Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900AA

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
