Marley PVC Waste Solvent System
Verified by manufacturer 9 months ago
32 mm
32 mm
BSI Kitemark
Certificate type
A range of PVC solvent weld pipes and fittings to suit most wastewater applications
Application
For internal and external waste water applications; for properties such as:
- Apartments
- Hotels
- Libraries
- Hospitals
- Public buildings
- Restaurants
- Residential properties.
Description
A range of black, white and grey, PVC solvent weld pipes and fittings, available in 32, 40 and 50mm.
Features and benefits:
- All components are manufactured in compliance with BS 5255 and BS EN 1566.
- Easy to handle on-site.
- Provides quick and hygienic removal of sanitary wastewater.
- UV stable, making it suitable for both internal & external applications
General information
Color | Black White Grey |
Finish | Smooth |
Material | Polyvinyl chloride (PVC) Guidance for specification option: Chlorinated |
Shape | Circle |
Length | 4000 mm |
Width | 32 mm 40 mm 50 mm |
Warranty description | Five year |
Uniclass | |
CAWS | R11/115 Above ground foul drainage system R11/350 MUPVC or PVC-C pipework R11/610 Fixing pipework R11/11 Plastics branch pipework R11/60 Fixing pipework |
Product range |
Specification data - Chlorinated polyvinyl chloride (PVC-C) above-ground wastewater pipes and fittings
Standard | To BS 5255 and BS EN 1566. |
Jointing type | Solvent weld. |
Nominal sizes | DN 32. |
Colour | Black.White. |
Fixings | Plug and screw fixed. |
Pipe couplings | KSC1. KEC1. Guidance for specification option: Expansion/ copper adaptor Manufacturer guidanceStraight couplings. |
Pipe clips | KF1. Guidance for specification option: Open clip WC3. Guidance for specification option: Closed clip |
Plug | KAP1. Manufacturer guidanceAccess plug |
Length | 4 m. |

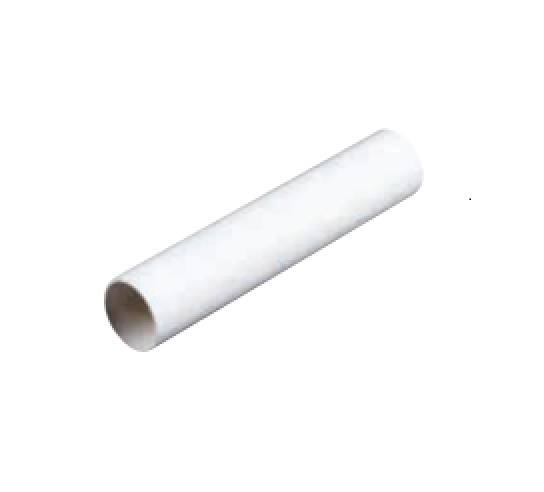

Pipes | KP104. |
Bends | KB1. Guidance for specification option: 88½° KB12. Guidance for specification option: 45° KBA12. Guidance for specification option: Spigot, 45° KBS1. Guidance for specification option: Solvent socket/ Spigot, 87½° KBK15. |
Adaptors | KFA1. KMA1. |
Adaptors and reducers | KR175 (socket reducers). |

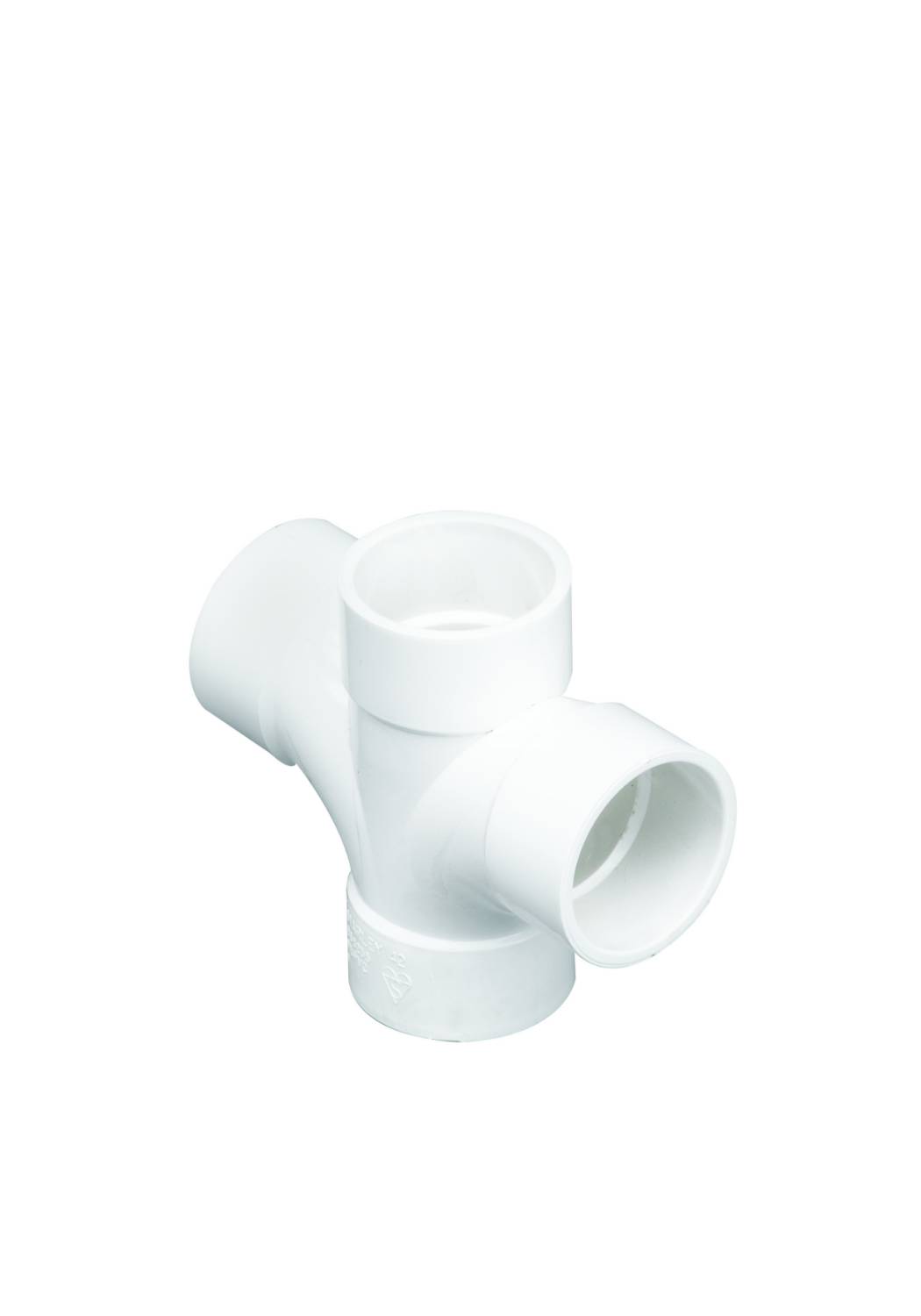

Fittings | KT1 (tees). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
BSI Kitemark
BS EN 1566
BSI Kitemark
BS 5255
Literature
Soil & Waste Design & Installation Guide
Specialist Building Services Range Guide
