Marley PVC Soil Solvent System
Verified by manufacturer 7 months ago
82 mm
82 mm
BSI Kitemark
Certificate type
PVC-U solvent-welded soil system.
Application
Suited for most drainage requirements:
- Commercial projects.
- Student accommodation.
- Hotels.
- Apartments.
- Hospitals.
- Residential
Pipes and fittings are also suitable for use as internal and external rainwater pipes to drain flat roofs and metal gutter systems on commercial and industrial buildings.
Description

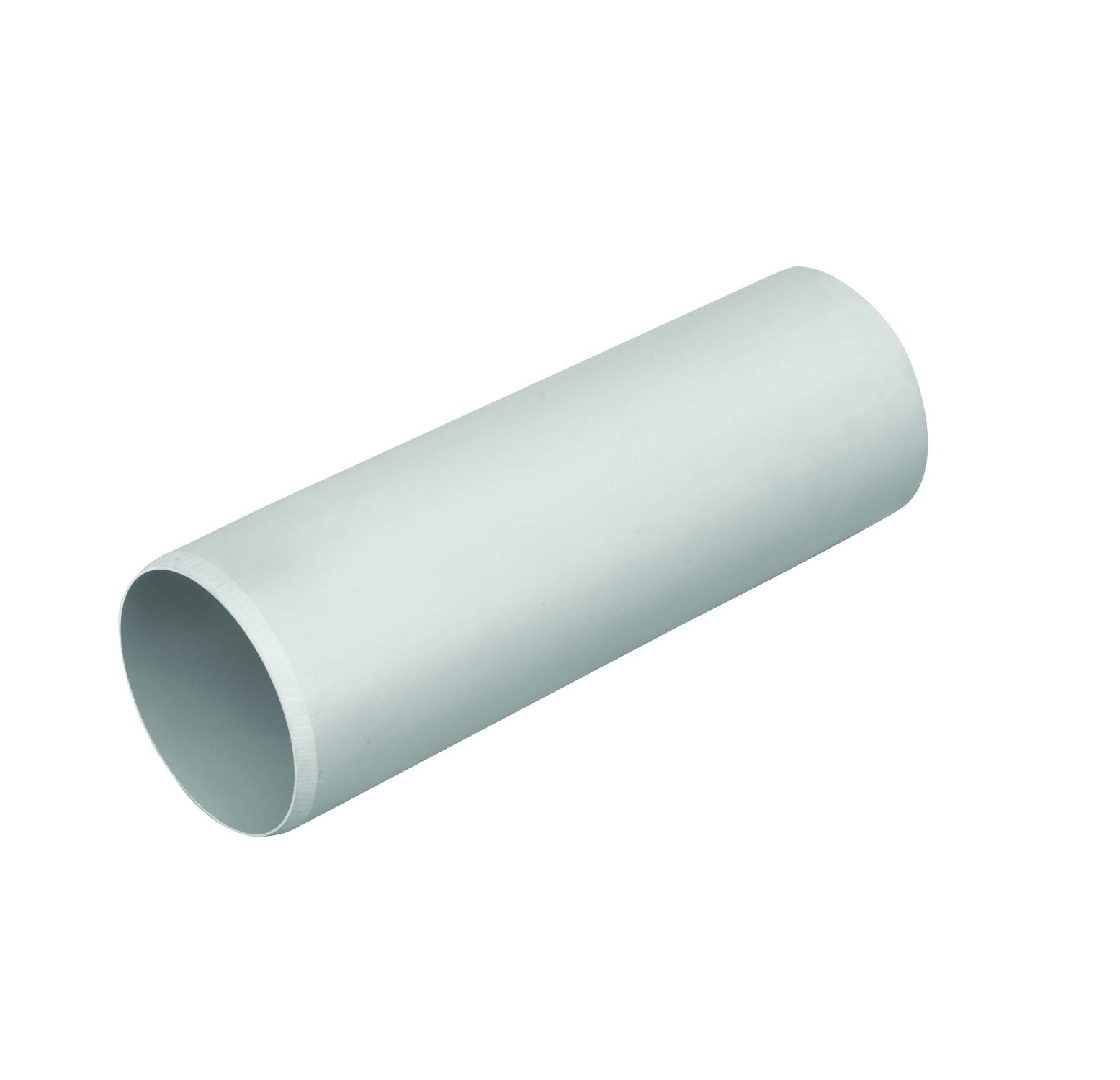

Solvent welded unplasticized polyvinyl chloride (PVC-U) soil system available in 82, 110 and 160 mm options, incorporating a plain-ended pipe. 110 and 160 mm pipe support components have been designed specifically to support horizontal or vertical suspended PVC-U pipework and is ideal for those who want a secure leak-free system.
Features and benefits:
- Quick to install.
- A choice of grey, black and white colour options.
General information
Color | Black Grey White |
Finish | Smooth |
Material | Polyvinyl chloride (PVC) |
Shape | Circle |
Length | 3000 mm 4000 mm |
Width | 82 mm 110 mm 160 mm |
Warranty description | Five year |
Uniclass | |
CAWS | R11/115 Above ground foul drainage system R12/346 Pipes, bends and junctions – pvc-u – solid wall R12/14 Pipes, bends and junctions – PVC-U – solid wall |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) above-ground drainage pipes and fittings
Standard | To BS EN 1329 and BS 4514. |
Third-party product certification | BSI Kitemark. |
Nominal sizes | DN 82. |
Colour | Black.Grey.White. |
Pipe couplings | SE300. Guidance for specification option: Straight couplings. Loose pipe socket SES301. Guidance for specification option: Straight couplings. Double solvent socket Manufacturer guidanceStraight couplings |
Bends and offsets | SNE300. Guidance for specification option: Offset bend. Push-fit solvent socket, 67.5° |
Rear access bends | SB38. Guidance for specification option: Push-fit socket/ spigot. |
Pipe clips and brackets | SC35. Guidance for specification option: PVC-U. SC35S. Guidance for specification option: For use with drive-in spike or backplate. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Literature
Soil & Waste Design & Installation Guide
Specialist Building Services Range Guide
