Marley PVC Condense and Overflow System

Verified by manufacturer 8 months ago

Aliaxis

PVCu solvent welded pipework and fittings for overflow and boiler condensate applications.

Jump to:
+44 (0) 330 111 4233 Website

Application

For overflow and boiler condensate applications; for properties such as:


  • Apartments
  • Hotels
  • Libraries
  • Hospitals
  • Public buildings
  • Restaurants
  • Residential properties.

Description

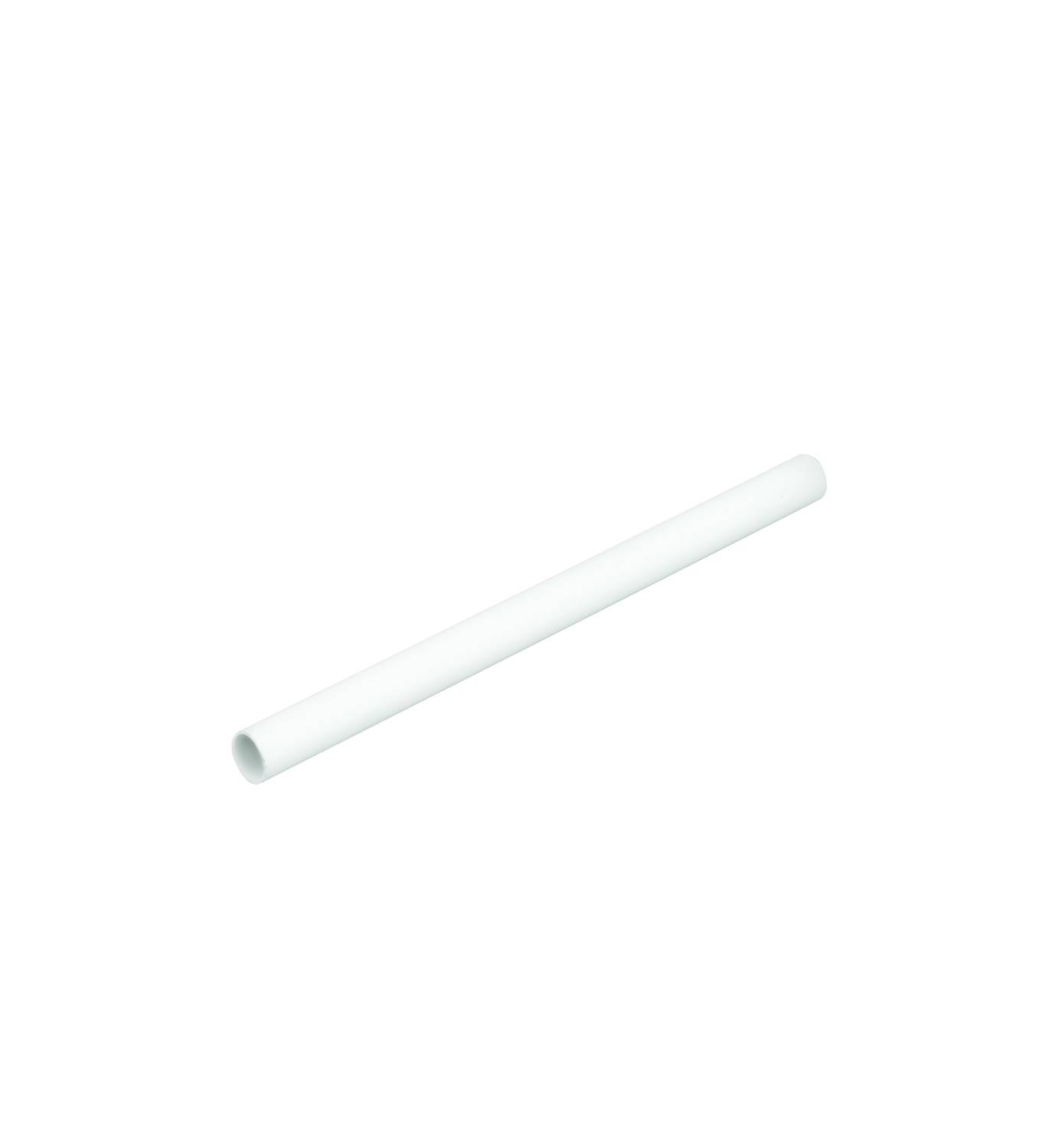

A full range of white PVCu solvent weld pipes and fittings, 21.5 mm.


Features and benefits:

  • PVCu overflow is designed to be installed to BS EN 806-4.
  • Easy to handle on-site.

General information

Color

White

Finish

Smooth

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Chlorinated

Shape

Circle

Length

3000 mm

4000 mm

Width

21.5 mm

Warranty description

One year

Uniclass

Pr_65_52_03_87 Unplasticized polyvinyl chloride (PVC-U) above-ground drainage pipes and fittingsPrimary

CAWS

R11/115 Above ground foul drainage system

R11/365 PVC-U pipework

R11/610 Fixing pipework

R10/35 PVC-U pipework

R11/11 Plastics branch pipework

R11/60 Fixing pipework

Product range

Standard Drainage Systems

Specification data - Unplasticized polyvinyl chloride (PVC-U) above-ground drainage pipes and fittings

Standard

To BS EN 806-4.

Nominal sizes

DN 21.5.

Colour

White.

Pipe couplings

OSC21.

Manufacturer guidance

Straight coupling

Pipe clips

OC21.

Soil pipe bends

OB45.

Guidance for specification option:

45°

OB90.

Guidance for specification option:

90°

Pipes

OP213.

OP21.

Guidance for specification option:

4 m length

Adaptors

OFA21.

Guidance for specification option:

Female iron

OCA21.

Guidance for specification option:

Straight, to 22 mm

OCL21.

Guidance for specification option:

Cap and lining

Connectors

OTC21.

Guidance for specification option:

Straight

OBC90.

Guidance for specification option:

Bent

Fittings

OT90 (tees).

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

Soil & Waste Design & Installation Guide

Soil & Waste Design & Installation Guide

Specialist Building Services Range Guide

Specialist Building Services Range Guide
