Markilux MX-3 Awning
Verified by manufacturer 5 months ago

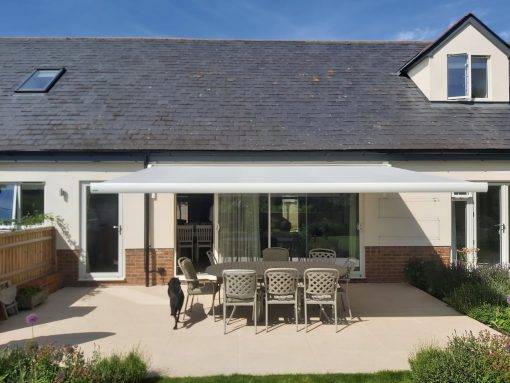

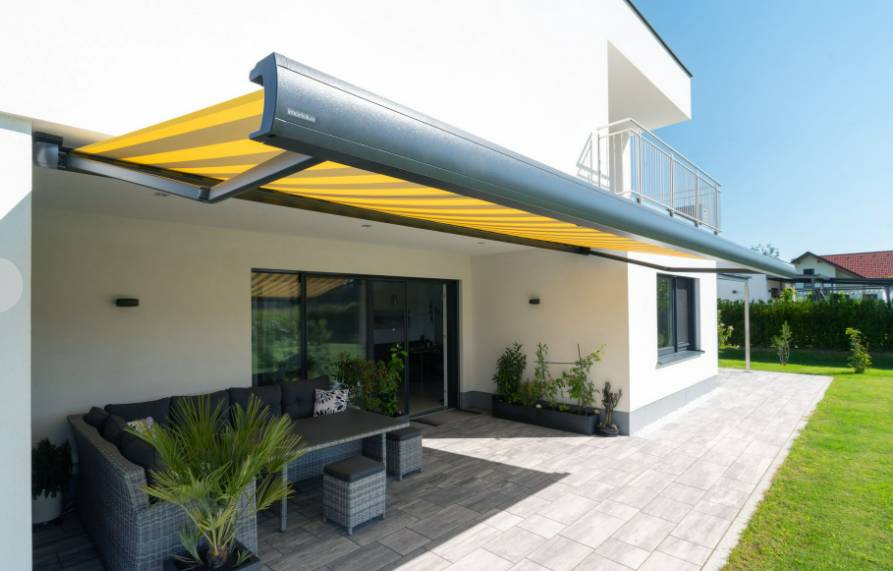

The Markilux MX-3 is a contemporary full cassette awning made from forged aluminium and available with a unique styling panel. The Markilux MX-3 can be up to 6 m wide with up to a 3.5 m projection.
Application
Suitable to commercial settings including hotels, restaurants, cafes, shopfronts, schools, hospitals and pubs. Also suitable for domestic settings with patio and balcony areas.
Description
Shapely curves, clean lines, a fascinating colour spectrum – these are the defining features of the new Markilux MX-3. The colour choice of the all-round styling panel offers a unique customisation options. When closed, the awning makes a good impression with its harmonious appearance, and when opened it fully reveals its technical superiority. The innovative designer awning Markilux MX-3 makes an excellent long-term impression with its very good price to performance ratio.
Feature and benefits:
- Maximum enjoyment of the most attractive shade: up to 600 × 300 cm / 500 × 350 cm (awning width × projection).
- Compact cover cassette, 120 mm × 230 mm (H × D).
- The styling profile colour continues in the end caps – in the standard awning or eight other distinctive colours.
- LED-Line recessed in or LED spotlights suspended under the cassette, dimmable.
- Good price to performance ratio.
General information
Color | Other Guidance for specification option: RAL available for surcharge. |
Finish | Powder-coated Guidance for specification option: powder coat your awning any RAL colour (surcharge applies). |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | B91/420 Waiting shelter B91/385 Shelter |
Product range |
Specification data - Open-sided shelters
Dimensions | |
Plan size | 6000 x 3000 mm.5000 x 3500 mm.Manufacturer guidance(Awning width × projection). |
Frame | |
Material | Aluminium. |
Finish | Powder coated.Guidance for specification option: Cassette and frame. |
Colour | Traffic white, RAL 9016.Metallic aluminium, RAL 9006.Grey brown, similar to RAL 8019.Off-white, textured finish, RAL 5233.Stone grey metallic, RAL 5215.Anthracite metallic, RAL 5204.Havana brown, textured finish, RAL 5229.Manufacturer guidanceIt is possible to powder coat your awning any RAL colour (surcharge applies). |
Roof covering | Sunvas.Sunsilk.Sunbow.Perla FR. |
Accessories | Not required.Only 2.5 kW infrared heater io or RTS.Guidance for specification option: io receiver is integrated, RTS receiver is external. LED Lighting. LED Lighting - LED Spotline light bar 110 x 70 mm at 1800 mm long with 3 spots.Guidance for specification option: Integrated io radio receiver or external RTS receiver. LED Lighting - LED Spotline light bar 110 x 70 mm at 3000 mm long with 5 spots.Guidance for specification option: Integrated io radio receiver or external RTS receiver. Automatic controls (light, wind, rain).LED Line or spotlights available on the underside of the awning cassette. |
Operation | Hard-wired motor operation. Radio-controlled motor io, 868 MHz. Spring-assisted crank handle. Radio-controlled motor RTS, 433 MHz. Crank handle. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Aluminium |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
