Markilux 1600 Awning

Verified by manufacturer 1 month ago

Roché Systems Ltd

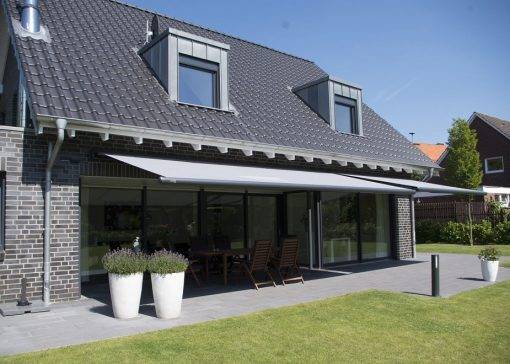

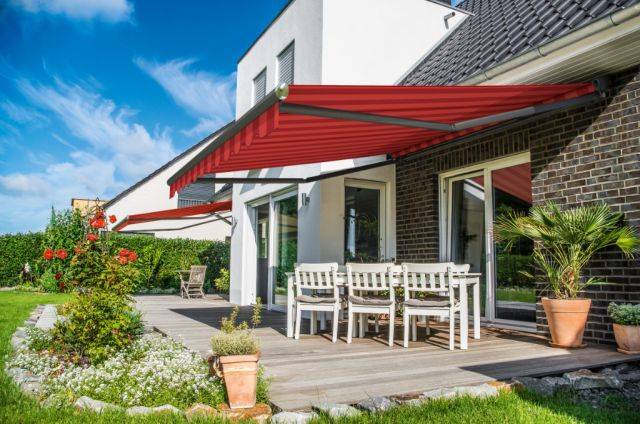

The Markilux 1600 is a contemporary semi cassette awning made from forged aluminium and with a rounded front profile. The Markilux 1600 can be up to 14 m wide with up to a 3.5 m projection.

Jump to:
BIM object icon
0800 085 1461 Website

Application

Suitable for domestic and commercial settings including hotels, restaurants, cafes, shopfronts, schools, hospitals and pubs.

Description

The folding-arm awning with exceptional, organic design characteristics and pivoting coverboard ideally suited for shading large areas.


Features and benefits:

  • The dynamically rounded coverboard gives it the appearance of a full cassette awning.
  • During the closing procedure, the coverboard tilts automatically down to meet the given pitch of the awning and together with the front profile encloses the roller tube completely (the awning is open underneath).
  • Coverboard with integrated brush so that debris does not get dragged into the awning as it closes.
  • Option of a drop valance up to a projection of 350 cm – vertical protection against low-lying sun, wind and inquisitive glances integrated into the front profile, can be be operated manually or by motor.
  • Awning with an extremely torsion-resistant, round torque bar which gives a certain degree of flexibility when choosing the fixture points.
  • Can be coupled to reach a maximum size of 14 m wide x 3.5 m projection.
  • With double chain link arms.

General information

Color

Other

RAL available for surcharge.

Finish

Powder-coated

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_07_05 AwningsPrimary

CAWS

B91/330 Canopy

Product range

Patio Awnings

Specification data - Awnings

Size (width x depth)

  • Cassette in the standard version: depth 254 mm, height 223 mm
  • Single unit: minimum width 174 cm at the smallest projection of 150 cm maximum width 710 cm at the largest projection of 400 cm.
  • Also available as a coupled unit.


14 x 3.5 m (maximum size when coupled), insert requirements.

Frame

-

Material

Power transference via corrosion-protected twin steel-link chains at the elbow joint, optionally with innovative bionic tendon made of high tensile, high-tech fibres – low in friction, noiseless, insensitive to corrosion and UV resistant

Aluminium.

Awning profile and folding arms: extruded aluminium and powder coated (moving parts are drop-forged aluminium). Pivot bolts are stainless steel. Side caps, front profile and torque bar end caps: high-quality plastic (powder coated)

Canopy

-

Material

Sunvas.

Standard. fabric range no 301.. / 309..–315.

Sunsilk.

Standard. fabric range no 324.. / 325.. / 328../ 369..

Sunbow.

Perla FR.

Optional. fabric range no 374.. / 375..

Valance detail

Valance as standard.

maximum awning projection 350 cm.

Headrail

-

Material

Galvanized steel.

Round roller tube 85 mm diameter with keyway, galvanized steel – excellent stability ensures near perfect cover performance even at the largest widths, the cassette side cap is die-cast aluminium, powder coated.

Colour

Traffic white, RAL 9016.

Metallic aluminium, RAL 9006.

Grey brown, similar to RAL 8019.

Off-white, textured finish, RAL 5233.

Stone grey metallic, RAL 5215.

Anthracite metallic, RAL 5204.

Havana brown, textured finish, RAL 5229.

Operation

-

Mode

Hard-wired motor operation.

Optional.

Radio-controlled motor io, 868 MHz.

Optional.

Spring-assisted crank handle.

Optional.

Radio-controlled motor RTS, 433 MHz.

Optional.

Crank handle.

Standard, manual operation only possible up to a 6000 mm width.

Wind resistance

Beaufort 5 - 17–23 mph.

Accessories

None.

Wall sealing profile (effective up to a maximum awning pitch of 15°).

To cover the gap between awning and wall.

Folding arm technology with bionic tendon.

Only 2.5 kW infrared heater io or RTS.

io receiver is integrated, RTS receiver is external.

LED spotline – light bar 110 x 70 mm at 1800 mm long with 3 W LED spotlights.

With integrated io radio receiver or external RTS receiver.

LED spotline – light bar 110 x 70 mm at 3000 mm long with 5 W LED spotlight.

With integrated io radio receiver or external RTS receiver.

Halogen spotline – light bar 89 mm x 40 mm with 20 W halogen spotlights.

Automatic controls (light, wind, rain).

Shadeplus.

LED Lines available in the arms.

Caps

Polished chrome.

Colour as frame.

Fixing

  • Face fixture, top fixture, eaves fixture.
  • Extruded aluminium, powder coated.
  • Pitch range 5°–50°, infinitely adjustable.
  • Spacer plates, stand-off brackets and other accessories are available.

Wall bracket 100 mm.

Spreader plate A 430 x 160 × 12 mm.

Spreader plate B 300 x 400 × 12 mm.

Stand-off bracket wide 80–300 mm.

Top fixture bracket 90 mm.

Show more

Sustainability data

Country of product manufacture

Germany
