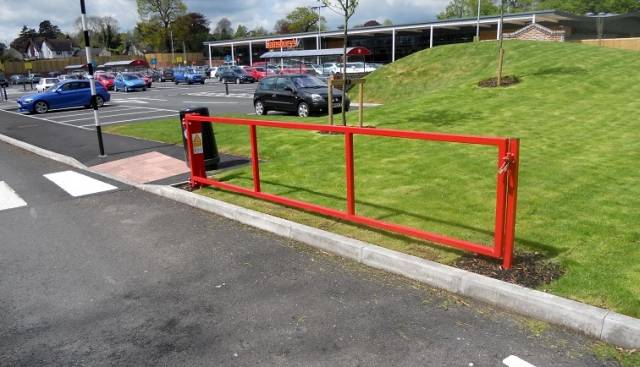

Manual Swing Arm Barrier

Application

Suitable for use in staff parking areas of larger multi-use sites or isolated car parks.

Description

Constructed from steel rectangular hollow section, the barrier boasts a sturdy arm to prevent access to unauthorized areas.


Features and benefits:

  • Adjustable rod eye bearing hinges.
  • Custom built to exact customer requirements.
  • It is lockable in both open and closed positions providing peace of mind during overnight periods when the parking area is often unmanned.
  • The barrier is supplied with two locking posts as standard.
  • The steel barrier arm can span openings of up to eight metres (16 metres with a pair of barriers).
  • Conforms to BS 6571 and is CE approved.

General information

Color

Red

Material

Carbon steel

Size

1000 mm

Height

Uniclass 2015

Pr_30_59_59_39 Horizontal swing vehicular barriersPrimary

CAWS

Q41/190 Vehicle access point barriers

Specification data - Horizontal swing vehicular barriers Enhanced data

Method of operation

Manual.

Dimensions

-

Height

1000 mm.

Span

2000–8000 mm.

Finish as delivered

-

Colour

Manufacturer's standard.

Corporate colours.

Red.

Accessories

None.

Fixing bolts.

Padlock and keys.
