Manual Call Points
Verified by manufacturer 1 day ago
MCP5A-RP01FG-K013-01
MCP5A-RP01FG-K013-01

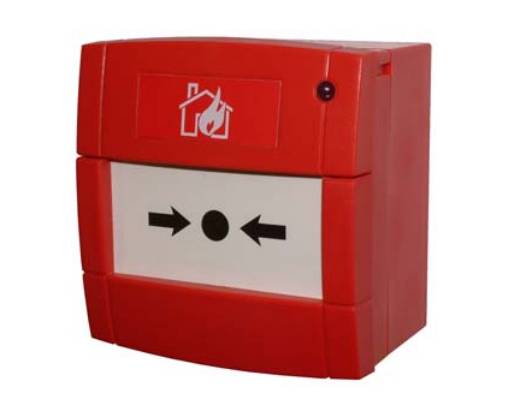

The MCP indoor call point range is a fully EN 54-11 compliant series of manual call points designed for quick installation, flexible configuration, and system integrity protection.
Application
Suitable for all building types.
Description
The MCP indoor call point range features a removable terminal block for pre-wiring, allowing installation without re-termination. Units can be configured as either break glass or resettable by changing the operating element, with no additional parts required. The design includes a tamper feature that triggers an alarm if the lid is removed. All models meet the latest EN 54-11 standard. The MCP5A model includes an advanced protocol, with an optional version offering built-in isolation.
Features and benefits:
- ‘Plug & Play’ installation concept.
- Total ‘Flex-Ability’ in the choice of operating element.
- Anti-tamper facility.
- Enhanced aesthetics and compact design.
- Fully approved to the latest standards.
- Backward compatibility.
- CPD approved.
- EN54-11 Certified.
General information
Color | Red |
Finish | Smooth |
Material | Acrylonitrile butadiene styrene (ABS) Polycarbonate |
Shape | Square |
Width | 89 mm |
Height | 93 mm |
Uniclass | |
CAWS | W90/336 Manual call points |
SKU Code | MCP5A-RP01FG-K013-01 |
Specification data - Manual call points
Classification data | |
Standard | To BS EN 54-11. |
Third-party certification | LPCB-approved. |
Designation | Type B. |
Frangible element | Non-resettable. |
Integral red visual indicator | Required. |
Environmental category | Indoor. |
Mounting | Flush. |
Protective covers | Not required. Required. |
Power source | Operating: 24 V d.c. Maximum: 32 V d.c. |
Current | Operating: 7.0 mA*. Standby: 8O μA* (no comms); 120 μA* (with comms). Guidance for specification option: *figures at 24 V.d.c. |
Ingress protection | IP24D. |
Humidity | 93± 3% non-condensing. |
Operating temperature | -100℃ to +550℃. |
Operating | Glass. |
Isolator | Not applicable. |
Colour | Red - RAL 3001. |
Accessories | Not required. SC070 - pack of ten test keys. MUS155 - pack of five glass elements. Guidance for specification option: Also available in packs of 10 and 50. PS210 - flexible operating element. PS200 - plain hinged cover. SC071 - pack of twenty terminal blocks. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) Polycarbonate |
Literature
Literature type

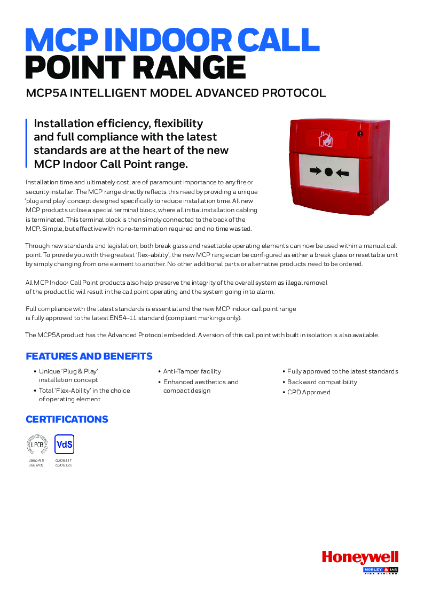

Morley-IAS Addressable Manual Call Points

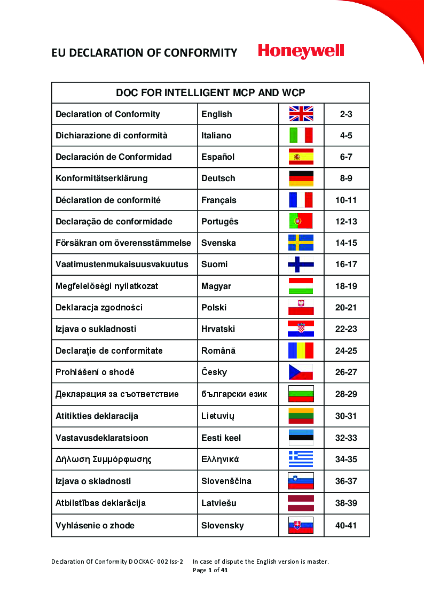

Morley MCP5A and WCP5A EMC & ROHS Declaration of Conformity
