Manual Barriers
Description

Manual Garrison barrier:

An easy to operate, counter-balanced manual barrier to obstruct or permit vehicle access, with lifting handle and locking bar at the pivot point. Booms up to 7500 mm.

Manual Standard barrier:

An easy to operate, counter-balanced manual barrier to obstruct or permit vehicle access, with lifting handle, locking bar and warning sign at the pivot point. Booms up to 9000 mm. Lower folding skirts up to 7500 mm.

Wagon stopper (Height restrictor):

A simple barrier designed to allow access to cars and light vans but control entry of higher vehicles by means of a height adjustable nudge bar, which warns if vehicles are too high. If entry is required by higher vehicles, the boom can be unlocked, pushed through 180 degrees, and padlocked to the latch back post which will secure the boom in the opened position. Booms up to 10 000 mm.

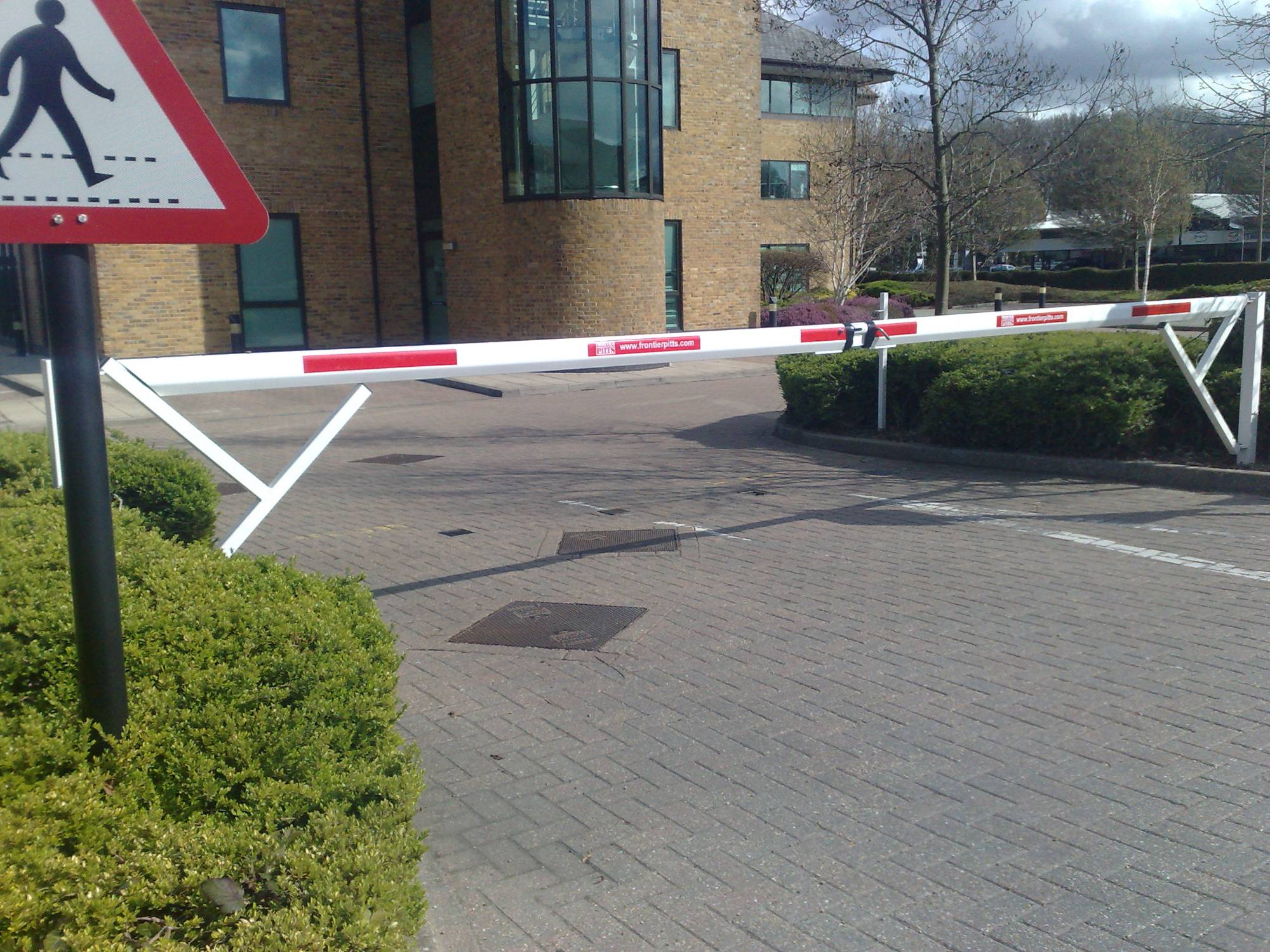

Road Closer (Swing barrier):

The Manual Road Closer is an economical barrier, designed to close off entrances which have sufficient room for horizontal opening and to control infrequent vehicle flow. The boom swings through 180 degrees and can be padlocked to the latch back post which will secure the boom in the opened position. Booms up to 7500 mm.

General information

Uniclass 2015

Pr_30_59_59_72 Rising arm vehicular barriersPrimary

CAWS

Q41/190 Vehicle access point barriers

Specification data - Rising arm vehicular barriers

Product Reference

Manual Garrison barrier

Manual Standard barrier

Road Closer (Swing barrier)

Wagon stopper (Height restrictor)

Length

Insert requirement from 'Options' below.

Colour

Manufacturer's standard

Special colour

Consult manufacturer for details and insert requirements.

End rest

Not applicable

Fixed

Garrison or Standard barriers only.

Pogo stick

Garrison or Standard barriers only.

Removable

Garrison or Standard barriers only.

Latch back post

Not applicable

Required

For Wagon stopper or Road Closer only; secures boom in the open position.

Skirts

Not required

Lower folding - up to 7500 mm

Standard barriers only.

Accessories

None

HGV height warning sign

Nudge bar

For Wagon stopper only.

Stop sign

Warning sign

Standard product features

Colour:

White with a white and red boom as standard. Special colours and customising barrier with unique branding are available on request.

Boom height:

1000 mm.

Product Options

Length (maximum):

  • Manual Garrison Barrier, Road Closer (Swing Barrier) and Wagon stopper (Height Restrictor): 7500 mm.
  • Manual Standard Barrier: 9000 mm.
