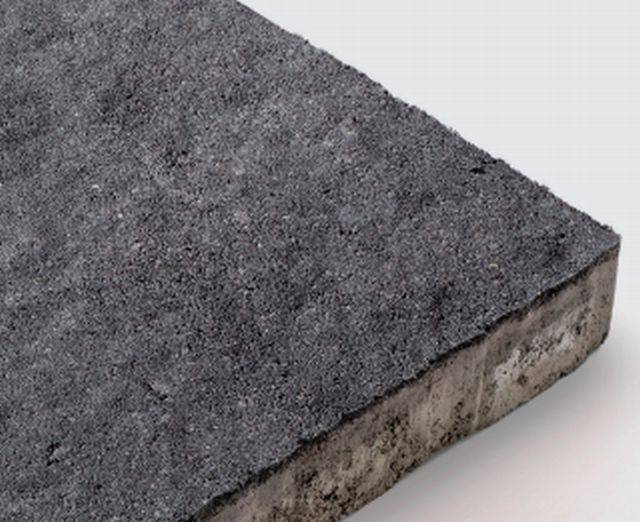

Undulated, granite aggregate flagstones.

Jump to:
+44 (0) 28 8778 8112 www.ag.uk.com
Description

Undulated, granite aggregate flagstones, supplied in a mix of four different sized units in patio packs.

General information

Finish

Textured

Uniclass 2015

Pr_25_93_60_16 Concrete flagsPrimary

CAWS

Q25/31 Concrete flag paving

Q25/315 Concrete flags

Specification data - Concrete flags

Product Reference

ManorStone®

Colour

Blackwater

Glenarm

Standard product features

Finish:

Textured.

Size (l x w):

Supplied in a mix of four different sized units in patio packs; 525 x 315 mm (19 kg per unit), 420 x 315 (15.2 kg per unit), 315 x 315 mm (11.4 kg per unit) and 210 x 315 mm (7.6 kg per unit).

Depth:

50 mm.

Edges:

Fettled waved edge.

Standard:

Manufactured to BS EN 1339:2003.

Surface layer:

Durable and hard wearing with a minimum surface layer of 8 mm. Minimum cement content 380 kg/m³.

Spacer nibs:

3 mm spacers on each paver leaving a 3–7 mm minimum joint between units due to the undulating edge detail.

Technical characteristics:

  • Granite content: Not less than 50% natural granite and quartz aggregate in surface layer.
  • Efflorescence: State-of-the-art factory-controlled vapour curing significantly reduces this naturally occurring chemical reaction.
  • Bending strength: >3.5 MPa (this applies to all sizes). For specific force performance on a given size, contact manufacturer's Technical Specification Department.
  • Slip/ skid resistance (USRV): >75 low potential for slip. Specific slip/ skid resistance results are available from manufacturer's Technical Specification Department.

Sustainability:

  • Energy use: 100% renewable energy.
  • Water used: 90% recycled water.
  • Recyclability: 100% of this product can be recycled.
  • Manufacturing location: Produced in the UK using responsibly sourced materials.
  • Non-primary materials: 61–70% (surface layer).
  • Waste wood and plastic: 100% recycled.
  • Carbon footprint: AG have a state-of-the-art wash­ing plant which enables them to produce walling from 100% recycled waste aggregate.
  • BREEAM rating: A Rating – according to the Green Guide to Specification 4th edition 2009. A+ Rating can be achieved when used in conjunction with a prepared recycled sub-base.

Product Options

Colour:

Consult manufacturer to obtain samples.

Installation:

To BS 7533-4:2006.

Third party certifications
  • BREEAM: A rating : (A+ rating can be achieved when used in conjunction with a prepared recycled sub-base)
