Application

Designed typically for installation on highways or in car parks.

Description

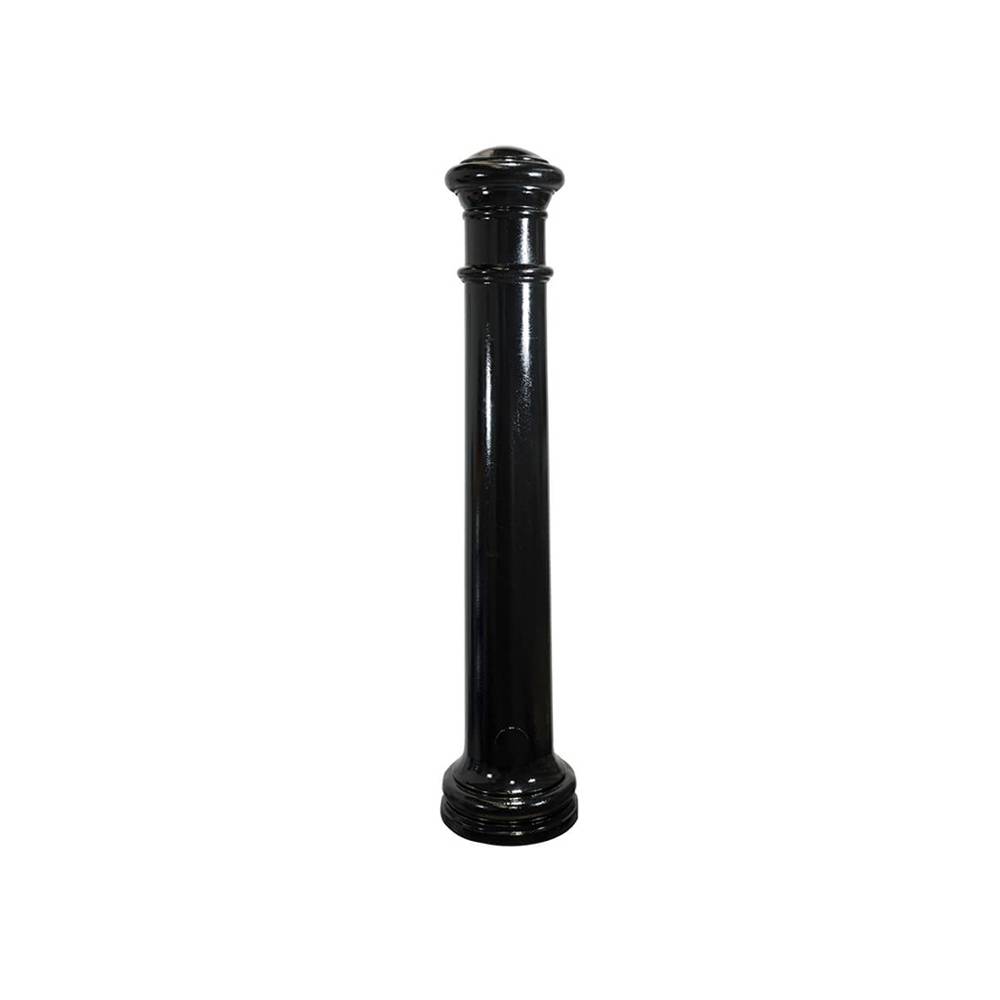

The Manchester Flex bollard is a root fixed bollard combining the look of a more traditional bollard with the technology of impact flex. The bollard flexes to absorb the typical force of a vehicle at impact but then returns to the vertical position afterwards with no damage the bollard and minimal damage to vehicle.

Complete Maintenance free "fit and forget" solution designed to minimise any future ongoing maintenance costs or replacements. Unlike metal bollards, polyurethane doesn’t corrode or rust which also adds to its longevity.


It is inserted 300 mm into the ground and is held in place with tarmac or concrete. It can be accessorised with reflective tape around the top of the bollard in red, white or a mix of both at an additional cost.


Features and benefits:

  • Part of the Impact-Flex™ range.
  • Lightweight.
  • Root fixed.
  • The option of red, white or red and white reflective tape.
  • Urethane technology and design.
  • Flexible enough to prevent damage to any ground installation.
  • Low maintenance.
  • Tough and durable.
  • Chip and damage resistant.
  • Weather and abrasion resistant.
  • One person installation.

General information

Color

Black

Red

Yellow

Finish

Smooth

Material

Polyurethane

Width

187 mm

Height

1070 mm

WarrantyDescription

Two year

Uniclass

Pr_20_76_08_62 Plastics bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Plastics bollards

Material

Polyurethane.

Steel reinforcement

Not required.

Dimensions

-

Size and profile

187 mm diameter.

Height

1070 mm.

Length below ground

300 mm.

Top profile

Rounded.

Base

Flat.

Finishes

-

Colour

Black.

Cast finish

Smooth.

Applied finishes

Retro-reflective tape, red.

Retro-reflective tape, white.

Retro-reflective tape, red and white.

Not required.

Fixing

Root fixed.

Weight

12 kg.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

Manchester Impact Flex Bollard

Manchester Impact Flex Bollard
