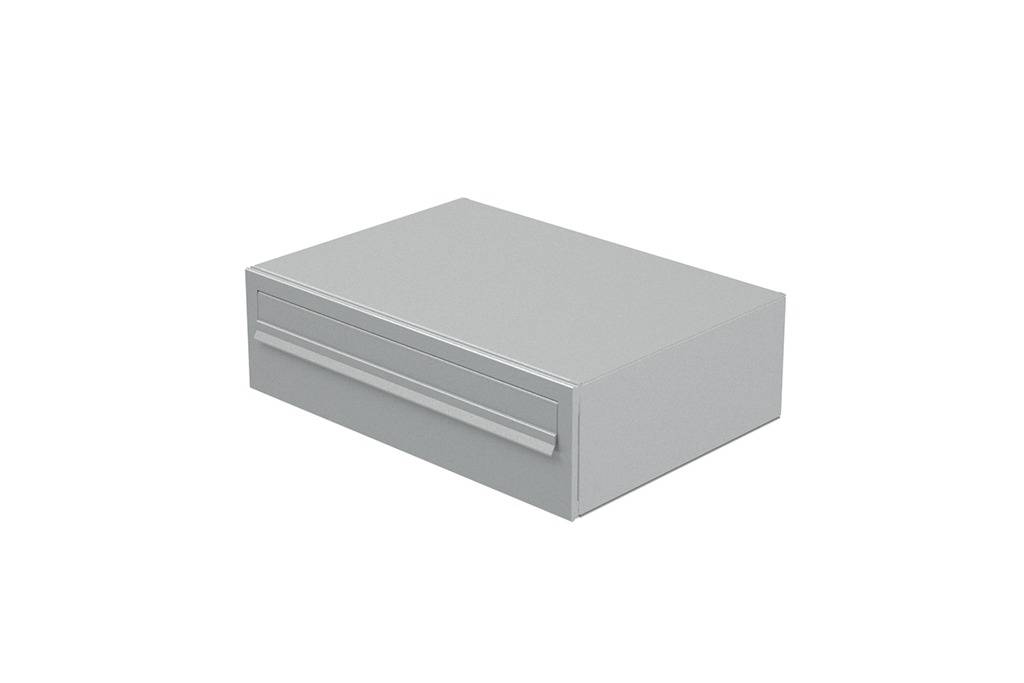

Mailforce 3 Telescopic Depth Mailbox - Wall Integrated Mailbox With Chute

Verified by manufacturer 1 month ago

The Safety Letterbox Company

A telescopic depth mail chute for use in external property wall where mail is posted in at the front (external) and retrieved at the rear (internal).

Jump to:
BOS
+44 (0)1639 633525 Website

Application

Internal and external applications.

Description

The Mailforce 3 Telescopic Mailbox is an in front / out back mail chute containing a lateral alignment and an adjustable depth allowing a range of wall thicknesses to be catered for. The mailbox uses a lateral alignment which accepts mail posted lengthways and can store mail up to A4 size. The mail chute contains a minimum depth of 280mm and a maximum depth of 400 mm, allowing any wall between these two depths to be catered for.


Telescopic mail chutes are useful for projects where the depth of the wall is not certain, for example where existing mailboxes are used and the dimensions of the exterior wall are approximate. The adjustable depth of the Mailforce 3 Telescopic is ideal for project where this is experienced.


The Mailforce 3 mail chute is a lateral version of the Mailforce 2 product, containing a larger width and slightly shortened starting depth (270 mm). Once mail has been entered into the front of the mail chute, it is stored in the mailbox until a user accesses the secured compartment with a coded key.


Features and benefits:

  • Has a sloping mail chute that accepts mail at the front of the box (typically located externally).
  • Accepts and securely stores A4 sized mail.
  • Supplied with a set of 2 keys. Master suited keys are available on request.
  • Manufactured using aluminium extrusions and steel.
  • Finished with any colour from our RAL colour range.
  • Can be manufactured as single or multiples.
  • Secured by design homes 2023 guide compliant.
  •  Royal mail compliant.
  • Made in the UK.

General information

Color

Ivory

Yellow

Red

Blue

Green

Show more

Manufacturer guidance

Any RAL colour from the standard colour range, contact manufacturer for details.

Finish

Powder-coated

Material

Steel

Aluminium

Shape

Rectangle

Length

380 mm

Width

420 mm

Height

112.5 mm

Warranty description

One year

Uniclass

Pr_40_30_50_46 Letter boxesPrimary
Pr_40_30_87_48 Lockers

CAWS

N10/400 Mailboxes

N10/96 Mailboxes

Specification data - Letter boxes

Standard

To BS EN 13724.

Classification grades (minimum)

-

Type of aperture

Aluminium extrusion flap, with build in security bridge.

Aperture size

330 x 18 mm.

Guidance for specification option:

Width x Height.

Security

Conforms to SBD homes 2023 guidelines.

Fire resistance

Class 0.

Form

Rectangle.

Size

420 x 112.5 x 380 mm.

Guidance for specification option:

Depth x Height x Width.

Materials

Zintec steel.

Aluminium extrusion.

Colour and finish

Polyester powder-coated.

Guidance for specification option:

All PPC finishes available.

Integral accessories

Supplied with a set of 2 keys.

Guidance for specification option:

Master suited keys are available on request.

Installation

Through the wall.

With door entry system.

Aperture size

18 x 230 mm.

Guidance for specification option:

H x W.

Accessories

None.

Aperture restrictors.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Aluminium

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
