Application

For use in a wide range of applications, including highways approved schemes, pedestrian areas, private parking areas, and driveways.

Description

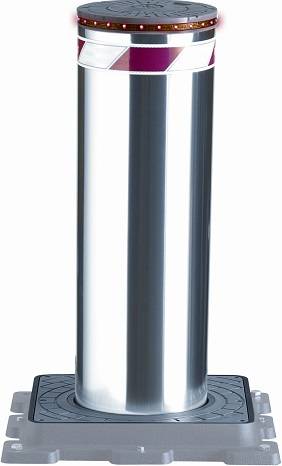

Automatic security bollard.

Suitable for use in a variety of applications, from private residential to public realm schemes, the bollards’ pleasing aesthetics allow for near seamless integration into the surrounding area, whilst a high duty cycle hydraulic pump ensures lasting performance.

Additional safety features, such as a safety pressure switch, flashing LED lights, audio sounder, ensure a high level of visual and audio warnings to users.

Complements the manufacturer's specially designed monitoring and control system, the bollard offers complete control over any vehicle restriction system.

Features and benefits:

  • Hydraulic pump integrated within bollard for ease of installation and increased reliability and intensive use.
  • Sleek design and pleasing aesthetics. Suitable for a wide variety of applications, including highways approved schemes.
  • Anti-corrosion treatment: Painted grey anthracite (standard).
  • High duty cycle, ensuring lasting performance and intensive use.
  • Optional blackout solenoid allows for safe automatic lowering in case of power failure.
  • Manual emergency lowering.
  • Safety reversal pressure switch.

Applications:

For use in a wide range of applications, including highways approved schemes, pedestrian areas, private parking areas, and driveways.

General information
Color

Anthracite (as standard)

Features

Hydraulic pump integrated for ease of installation, relaibility and intensive use, high duty cycle, long lasting performance and use, optional blackout solenoid allows for safe automatic lowering in case of power failure, manual emergency lowering

Finish

RAL painted

Material

S235JR NORMAL STEEL or X5CrNi 18-10 (AISI 304) STAINLESS STEEL or X5CrNiMo 17-12-2 (AISI 316) STAINLESS STEEL

Shape

Cylinder

Size

275 x 500 mm

275 x 800 mm

275 x 400 mm

275 x 600 mm

Uniclass 2015
Stainless steel rising bollards (Pr_20_76_08_84)Primary
Specification data - Stainless steel rising bollards
Product Reference

Macs PASS 275/800 Automatic Security Bollard

Material/ Finish

Brushed stainless steel, 1.4301 (304) grade

Brushed stainless steel, 1.4401 (316) grade

Painted stainless steel, 1.4301 (304) grade

Painted stainless steel, 1.4401 (316) grade

Powder coated Anthracite

RAL painted (S235JR) steel

Consult manufacturer for details and insert requirement.

Accessories

None

Blackout solenoid

Bollard reflecting adhesive strip - white (no-logo)

Buzzer acoustic signal

Control unit

Head without logo

Heating resistance for Pilomat bollards - transformer and thermostat one resistance for each bollard

Inductive card reader

Inductive detector for loops

Inductive loops

Integrated LED lights

Lock selector

Multiled flashing light- 8 led points

Pit In Aluzinc - counterframe and brackets one pit for each bollard

Radio receiver

Radio transmitter two-channel

Reflective adhesive strip – height 55 mm

Safety pressure switch

Timer programmer

Traffic light with two lights (green-red)

Standard product features

Height:

800 mm.

Diameter:

273 mm.

Thickness:

  • Moving cylinder S235JR steel thickness: 6 mm.
  • Moving cylinder stainless steel thickness 1.4301 (304) grade: 6 mm. 1.4401 (316) grade: 4 mm.

Technical characteristics:

  • Rising speed: 170 mm/ second.
  • Lowering Speed: 320 mm/ second.
  • Connection cable to control unit: Standard 10 mt (80 m or with heating resistance: 50 m (maximum).
  • Power requirement: 230 V - Single bollard: 6 A, Double bollard: 10 A.
  • Protection class: IP67.
  • Type of Use: Intensive – Life average: 3,000,000 movements. (2000 movements per day).
  • Impact Resistance (Without Deformation): 40,000 J.
  • Breakout resistance: 250,000 J.
  • Operating temperature: -40 to +70°C.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
