Application

For use at the entrance/ exit for areas such as car parks.

Description

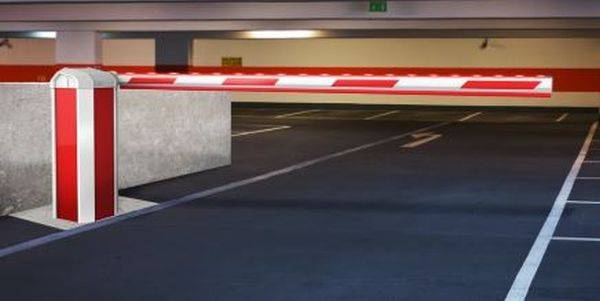

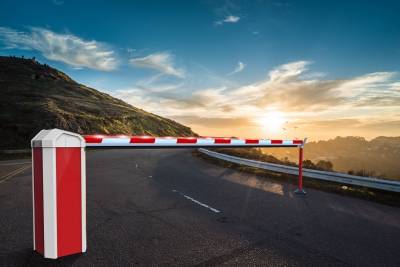

Automatic rise and fall barrier with a control panel and gearbox design, which means there is no requirement for any springs or counterweights to assist with operation.

Arm includes monitored safety edge to one side.

Features and benefits:

  • 100% duty cycle for heavy industrial use.
  • Safe, smooth operation.
  • Powered via an integral frequency inverter driven motor and gearbox drive, which only requires a single phase power supply.
  • 'Plug and Play' feature incorporated.
  • The programmable Feig control panel comes with fault diagnostics on the screen display, and can be programmed to suit any site configuration/ access control requirement.
  • Integrates with other devices to provide a secure perimeter.
  • Aluminium construction for a long, maintenance-free service life.
  • Provides a dual safety control for vehicles.
  • In the event of power failure, an easy to use manual release mechanism is supplied.
  • Easy to install.
  • Will accept 8k2 CAT3 safety elements.
  • High torque.
  • Arm lengths available up to 4 m.
  • CE marked and TUV approved.

Applications:

For use at the entrance/ exit for areas such as car parks.

General information
Color

Red with white lid, yellow with black lid

Features

Features a feig control panel, easy to install, low maintenance, built to last, effective security deterrent

Finish

RAL painted

Material

Aluminium

Size

1110 x 404 x 416 mm

Uniclass 2015
Rising arm vehicular barriers (Pr_30_59_59_72)Primary
Specification data - Rising arm vehicular barriers
Product Reference

Macs 6000B-19 Automatic Barrier

Material/ Finish

Aluminium, powder-coated, red body with white lid

Aluminium, powder-coated, yellow body with black lid

Aluminium, powder-coated, RAL

Special order. Consult manufacturer and insert requirements.

Arm

4 m maximum, insert requirements.

Accessories

Not required

Battery back-up

Flashing beacon

LED traffic light

Warning signage

Warning siren

Standard product features

Material:

Aluminium, powder-coated.

Size:

  • Cabinet: 1110 x 404 x 416 mm.
  • Pole: 94 x 64 mm (oval shape).

Fixings:

M12 anchor shield bolts (included).

Technical characteristics:

  • Power input: 240 V, single phase - 50 Hz - 10 A.
  • Drive unit: Three-phase motor and wormed gearbox.
  • Ingress protection: IP56.
  • Operation speed: 2–4 seconds (dependent upon barrier configuration).
  • Duty cycle: 100%.
  • Unit weight: 72 kg (including cabinet, contents and pole arm).
  • Operating temperature -20 to +60°C.
  • Type of use: Heavy industrial.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
