Application

For use in a wide range of applications, including highways approved schemes, pedestrian areas, private parking areas, and driveways.

Description

Automatic security bollard.

Suitable for use in a variety of applications, from private residential areas to commercial premises, the bollards combine stylish integration into the surrounding area, with a high-performance hydraulic pump to ensure lasting performance.

Additional safety features, such as safety pressure switch, flashing LED lights, audio sounder, ensure a high level of visual and audio warnings to users.

Complements the manufacturer's specially designed monitoring and control system, the bollard offers complete control over any vehicle restriction system.

Features and benefits:

  • Hydraulic pump integrated within bollard for ease of installation and increased reliability and intensive use.
  • Slimline design and pleasing aesthetics.
  • Anti-corrosion treatment: Painted grey anthracite (standard).
  • High duty cycle, ensuring lasting performance and intensive use.
  • Optional blackout solenoid allows for safe automatic lowering in case of power failure. Manual emergency lowering.
  • Safety reversal pressure switch.
  • Hydraulic pump built-in to bollard.

Applications:

For use in a wide range of applications, including highways approved schemes, pedestrian areas, private parking areas, and driveways.

General information
Color

Anthracite (as standard)

Features

Hydraulic pump integrated for ease of installation, relaibility and intensive use, high duty cycle, long lasting performance and use, optional blackout solenoid allows for safe automatic lowering in case of power failure, manual emergency lowering

Finish

Stainless steel or steel painted to match any RAL colour

Material

S235JR NORMAL STEEL or X5CrNi 18-10 (AISI 304) STAINLESS STEEL

Size

127 x 600 mm

127 x 800 mm

Uniclass 2015
Stainless steel rising bollards (Pr_20_76_08_84)Primary
Specification data - Stainless steel rising bollards
Product Reference

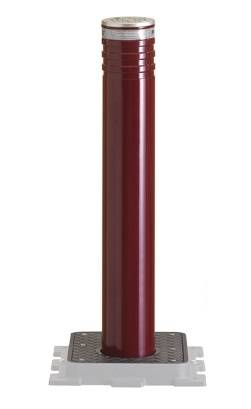

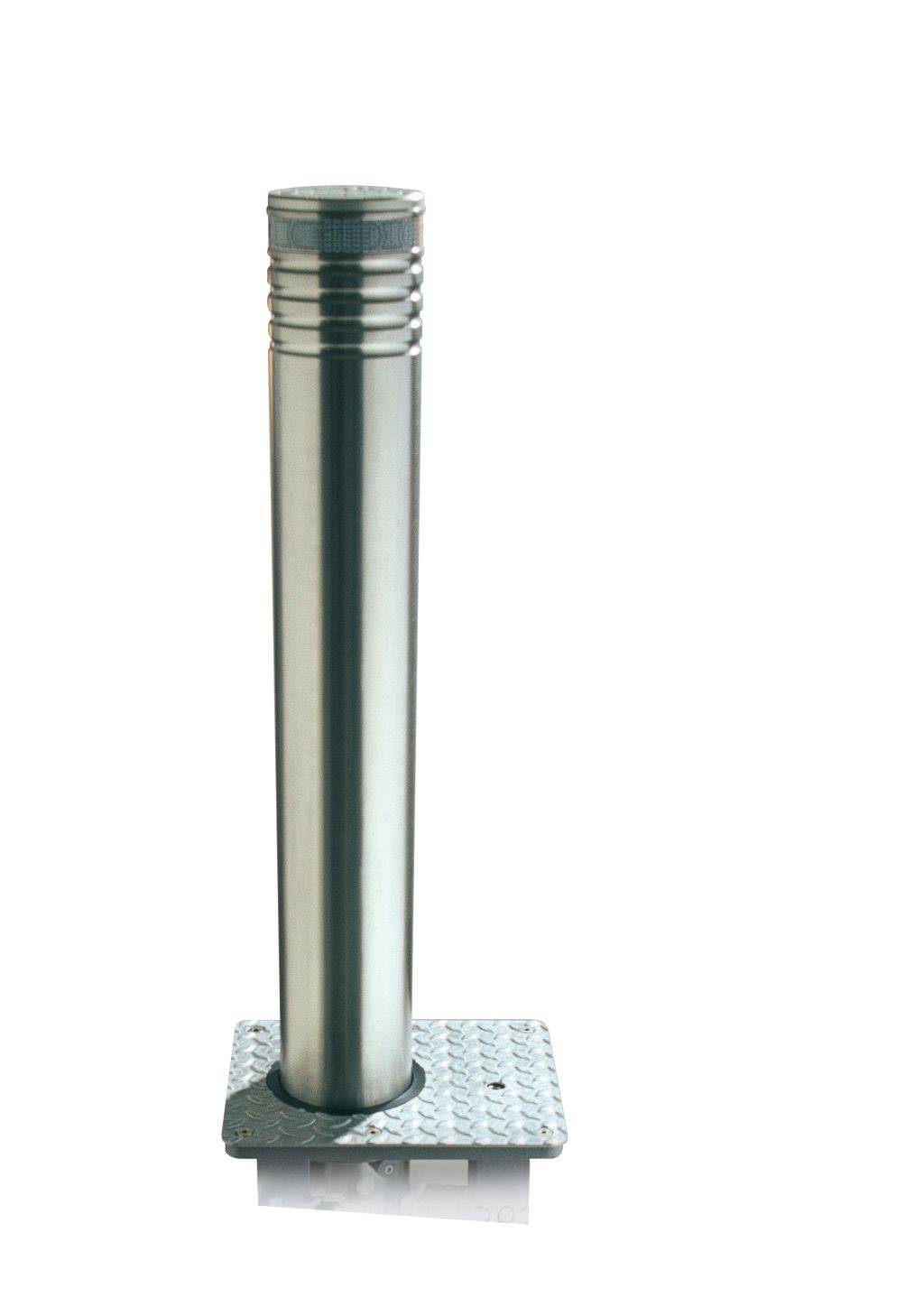

Macs PASS 127/800 Automatic Security Bollard

Material/ Finish

Brushed stainless steel, 1.4301 (304) grade

Painted stainless steel 1.4301 (304) grade

Powder coated Anthracite

RAL painted (S235JR) steel

Consult manufacturer for details and insert requirement.

Accessories

None

Blackout solenoid

Bollard reflecting adhesive strip - white (no-logo)

Buzzer acoustic signal

Control unit

Flashing light- 1 led point

Heating resistance for Pilomat bollards - transformer and thermostat one resistance for each bollard

Inductive card reader

Inductive detector for loops

Inductive loops

Integrated LED in bollard head

Lock selector

Pit In Aluzinc - counterframe and brackets one pit for each bollard

Radio receiver

Radio transmitter two-channel

Reflective adhesive strip – height 23 mm

Safety pressure switch

Timer programmer

Traffic light with two lights (green-red)

Standard product features

Height:

800 mm.

Diameter:

127 mm.

Thickness:

  • S235JRsteel: 6 mm.
  • Stainless steel: 4 mm.

Technical characteristics:

  • Rising speed: 150 mm/ second.
  • Lowering Speed: 250 mm/ second.
  • Connection cable to control unit: Standard 10 m (80 m or with heating resistance: 60 m (maximum).
  • Power consumption: 230 V. Single bollard 6 A. Double bollard 10 A.
  • Protection class: IP67.
  • Type of Use: Intensive – Life average: 3,000,000 movements. (2000 movements per day).
  • Impact Resistance (Without Deformation): 30,000 J.
  • Breakout resistance: 150,000 J.
  • Operating temperature: -40 to +70°C.
