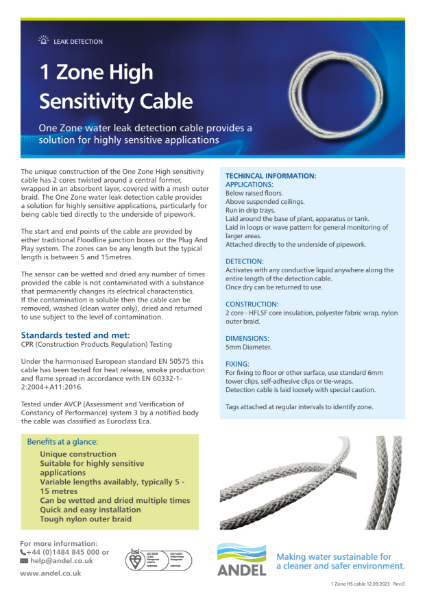

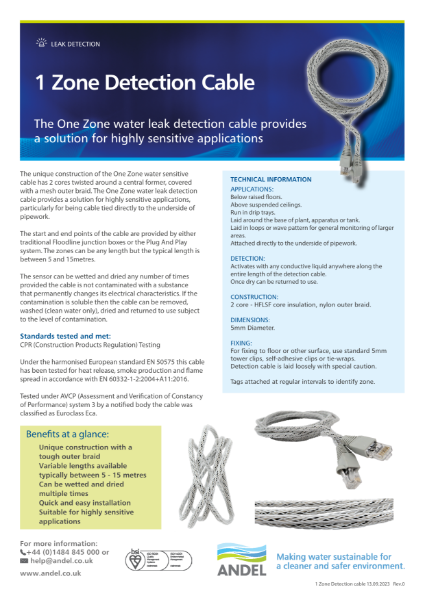

M1 - 1 Zone Detection Cable (Standard and High Sensitivity) - Water Sensing Cable

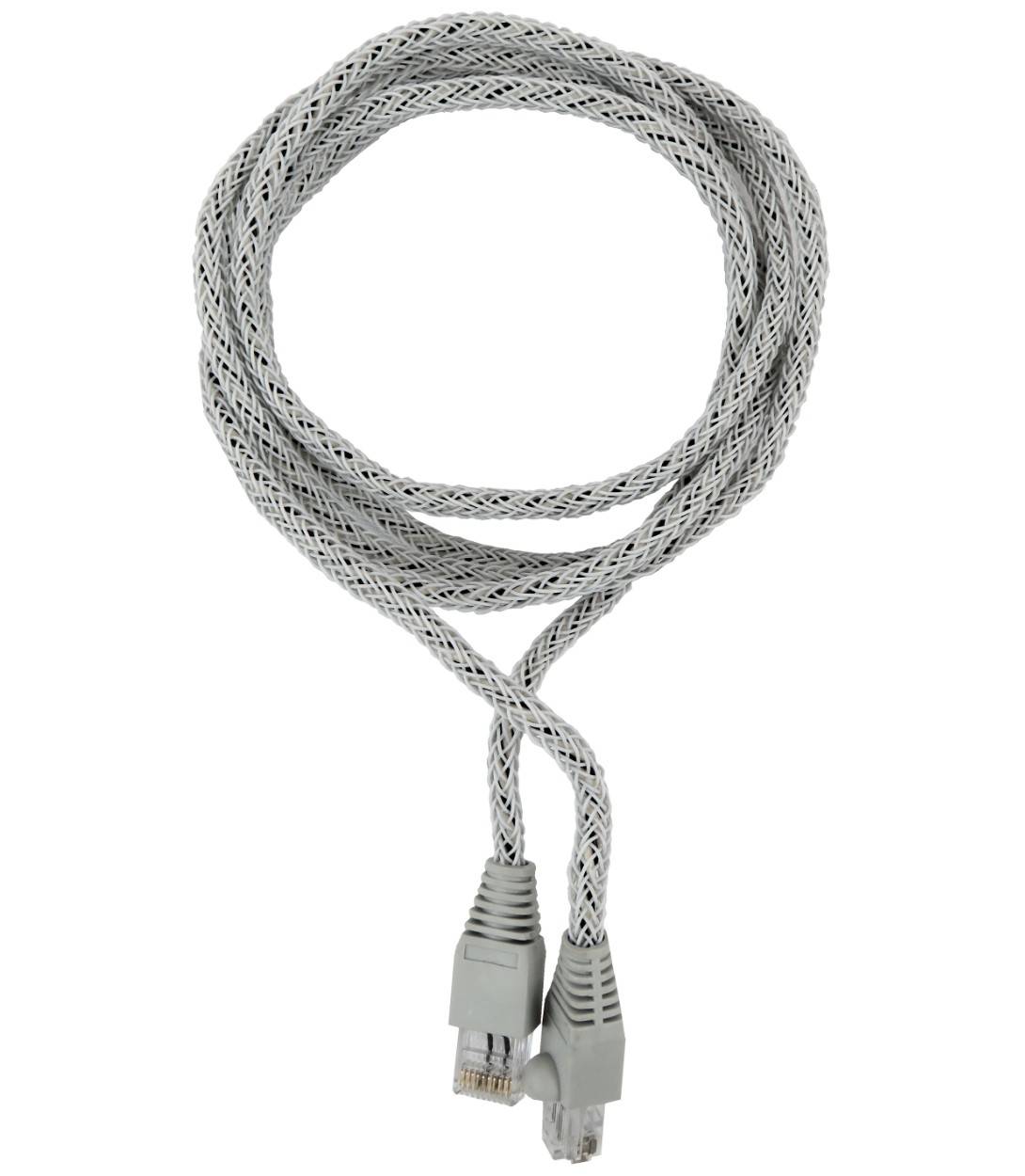

The One Zone water leak detection cable has a distinctive construction, with two cores twisted around a central former, covered with a mesh outer braid. The cable provides a solution for highly sensitive applications, particularly for being cable tied directly to the underside of pipework.

The start and end points of the cable are provided by either traditional Floodline junction boxes or the Plug and Play system. The sensor can be wetted and dried any number of times provided the cable is not contaminated with a substance that permanently changes its electrical characteristics. If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination.

Features and benefits:

• Distinctive construction with a tough nylon outer braid.
• The High Sensitivity cable has a polyester fabric wrap under the outer braid.
• Variable lengths available typically between 5–15 metres.
• Activates with any conductive liquid anywhere along the entire length of the detection cable.
• Can be wetted and dried multiple times.
• Quick and easy installation.
• Suitable for highly sensitive applications.

Standards:

• CPR (Construction Products Regulation) Testing.
• Under the harmonised European standard EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with EN 60332-1-2:2004+A11:2016.
• Tested under AVCP (Assessment and Verification of Constancy of Performance) system 3 by a notified body the cable was classified as Euroclass Eca.
