M-Tray® Sedum Modular Green Roof System - Sedum Species

Verified by manufacturer 5 months ago

Wallbarn Ltd Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Statement of compliance

    Certificate type

  • Wind Uplift Test Certificate

    Certificate type

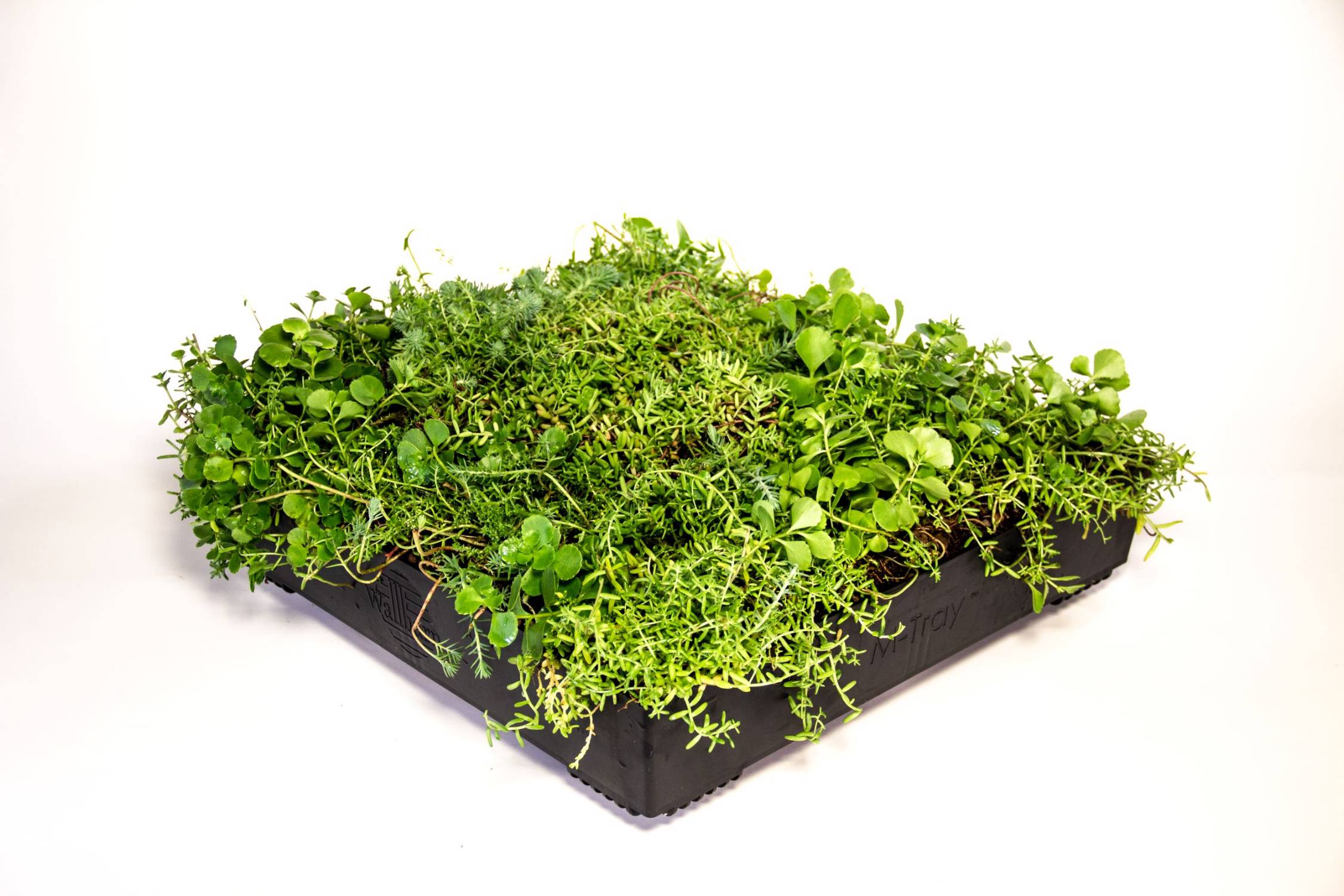

M-Tray modular green roof system, comprising plastic carrier / drainage module, free draining low nutrient substrate, standard sedum mix grown from seed and recycled polyester filtration membrane.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Suitable for domestic, retro-fitted or large scale commercial green roofs.


Description

M-Tray modular green roof system, comprising plastic carrier / drainage module, free draining low nutrient substrate, sedum mix grown from seed and recycled polyester filtration membrane.


Standard sedum species used for M-Tray® modular green roof units. A mixture of colours, leaf structures and different flowers selected to encourage bees, butterflies and other wildlife.


All sedum species will create a comprehensive layer over green cover all year round with flowers appearing at different intervals throughout the spring and summer.


Features and benefits:

  • B Roof T4 Certified
  • A fast and easy way to install truly instant, future-proof green roofs.
  • Portable and lightweight, ideal for areas with restricted access.
  • Mix of succulent sedum species to ensure year round coverage and low maintenance.
  • Supplied as complete ready-grown units.
  • Mix of at least 12 species of Northern European sedum species grown from seed.
  • Each unit or module clips together to the next to give a seamless surface of vegetation.
  • The sedum will grow over the top of the side walls of the tray.
  • All plants fully established and grown for a minimum of six months to ensure strong, healthy vegetation with at least 85% coverage.
  • Sustainably sourced, bespoke substrate mix developed to ensure plant growth in long-term.
  • Substrate depth and makeup is consistent across the roof.
  • Plants less likely to be shocked or need time to bed into substrate after installation.
  • An instant green roof.
  • No fixings required; the weight of the system holds everything in place.
  • Mess, disruption and time of installation are avoided as all soil and substrate is contained.
  • Access to the roof deck is easy - simply lift one module up.
  • Improved connection.
  • Optimum drainage.
  • Modules made from recycled polypropylene.
  • Made in UK.
  • Substrate: Less than 50% organics. Tested to and complies with BS 8616:2019.
  • Complies with GRO Code 2021.
  • Tested in accordance with CEN/TS 1187 Test 4. . Achieves fire classification of BROOF t(4).
  • Has EXAP Report based on CEN/TS 16459:2019.

General information

Color

Black

Guidance for specification option:

Tray.

Green

Guidance for specification option:

Vegetation.

Pink

Guidance for specification option:

Flowering species.

White

Guidance for specification option:

Flowering species.

Yellow

Guidance for specification option:

Flowering species.

Finish

Natural

Material

Other

Shape

Square

Length

500 mm

Width

500 mm

Height

100 mm

Warranty description

One year

Guidance for specification option:

Plastic limited warranty is 15 years, substrate warranty limited to specification and compliance to British Standards.

No warranty on living products.

Uniclass

Ss_45_40_47_28 Extensive green roof systemsPrimary

CAWS

Q37/130 Extensive green roof

Product range

Green Roof - Modular, Rollout, Extensive and Intensive

Specification data - Extensive green roof systems

Protection

-

Protection layer

Wallbarn PPST geotextile fabric.

PECT geotextile fabric.

Manufacturer guidance

Loose laid.

Root barrier

Not required.

Separation layer

Wallbarn PPST geotextile fabric.

Wallbarn PECT geotextile fabric.

Manufacturer guidance

Loose laid.

Moisture control

-

Drainage layer

Included.

Filter membrane

Included.

Moisture retention mat

Included.

Drainage ancillaries

Included.

Planting systems

-

Planting medium

Included.

Edge restraints

Aluminium.

Vegetation

Sedum acre.

Sedum Kamchaticum.

Sedum acre Oktoberfest.

Sedum montanum Orientale.

Sedum album.

Show more

Manufacturer guidance

Available as a pre-established, mature sedum product or with a native wildflower mix.

Aluminium edging

Not required.

Required.

Components

Tray comprises pre-grown, multi-layered green roof system with drainage membrane, filtration layers, substrate and vegetation pre-installed.

Weight

25 kg.

Guidance for specification option:

Planted, saturated weight.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Guidance for specification option:

and India

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Warringtonfire

Warringtonfire

M-Tray® Modular Green Roof System - t(4) External Fire Exposure to Roofs

Warringtonfire

Warringtonfire

M-Tray® Modular Green Roof System - t(4) External Fire Exposure to Roofs - Classification Report

Warringtonfire

Warringtonfire

M-Tray® Modular Green Roof System - t(4) External Fire Exposure to Roofs - Extended Application Report

Warringtonfire

Warringtonfire

M-Tray® Modular Green Roof System - t(4) External Fire Exposure to Roofs - Indicative Test Report

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Statement of compliance

Statement of compliance

Certification - M-Tray Substrate Analysis Report

Wind Uplift Test Certificate

Wind Uplift Test Certificate

Certification - M-Tray Wind Uplift Test

Literature

Brochure - M-Tray® Modular Green Roof System

Brochure - M-Tray® Modular Green Roof System

Certification - M-Tray B ROOF t4 Classification (short form)

Certification - M-Tray B ROOF t4 Classification (short form)

Certification - B ROOF t4 - M-Tray

Certification - B ROOF t4 - M-Tray

Certification - M-Tray B ROOF t4 Extended Application Report

Certification - M-Tray B ROOF t4 Extended Application Report

Certification - M-Tray B ROOF t4 Test Report

Certification - M-Tray B ROOF t4 Test Report

Installation Guide - M-Tray® Green Roof

Installation Guide - M-Tray® Green Roof

O & M Manual - M-Tray® Green Roof

O & M Manual - M-Tray® Green Roof

Certification - M-Tray Substrate Analysis Report

Certification - M-Tray Substrate Analysis Report

Datasheet - M-Tray Sedum Species List

Datasheet - M-Tray Sedum Species List

O & M Manual - M-Tray (Modular Green Roof)

O & M Manual - M-Tray (Modular Green Roof)

Datasheet - Pebbles (Green Roof Installations)

Datasheet - Pebbles (Green Roof Installations)

Datasheet - M-Tray Wildflower Species List

Datasheet - M-Tray Wildflower Species List

Case studies

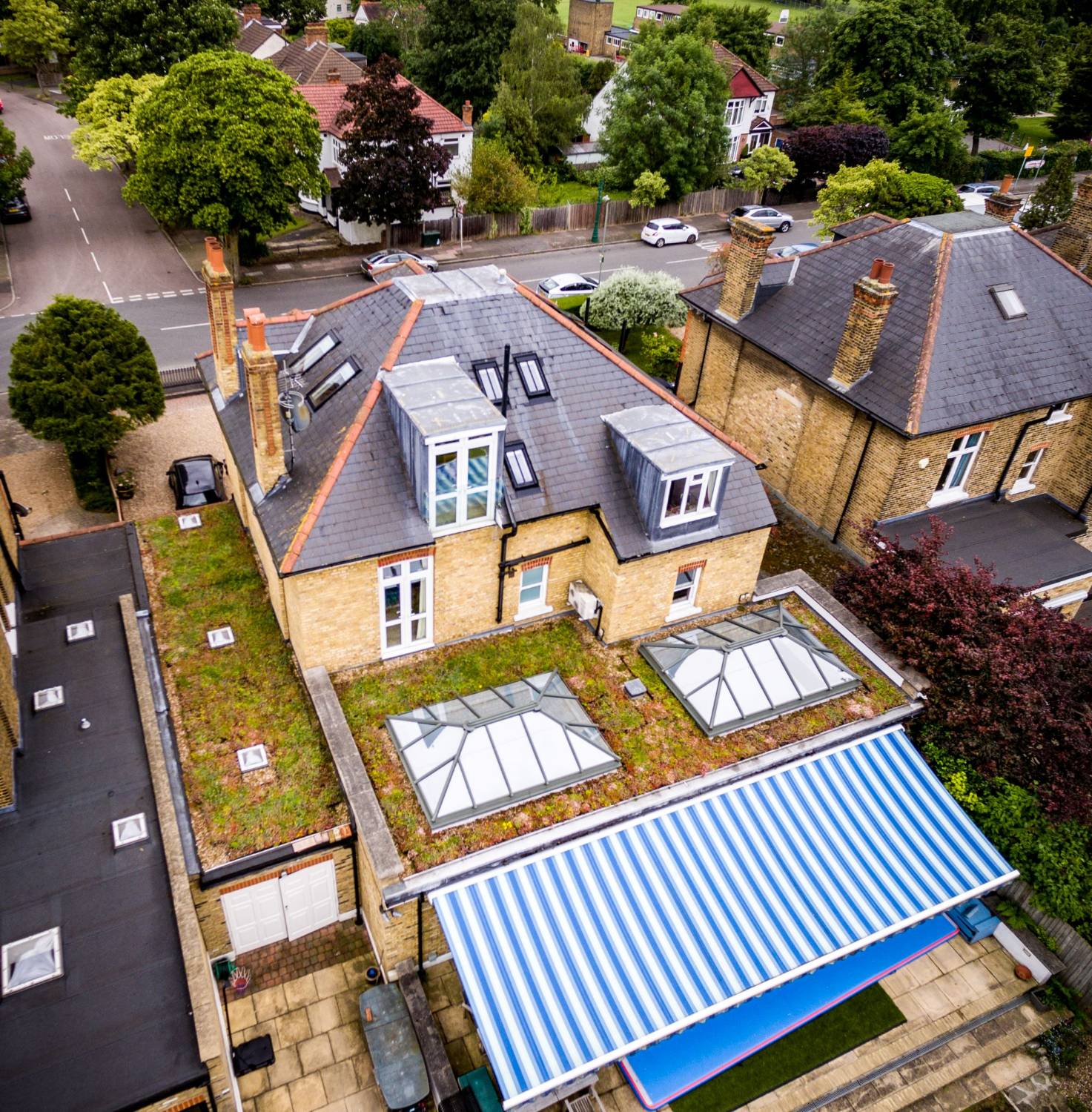

Domestic retro-fit green roof - Sydenham
