M-Line - Shower drain
Application

New construction or renovation.

Description

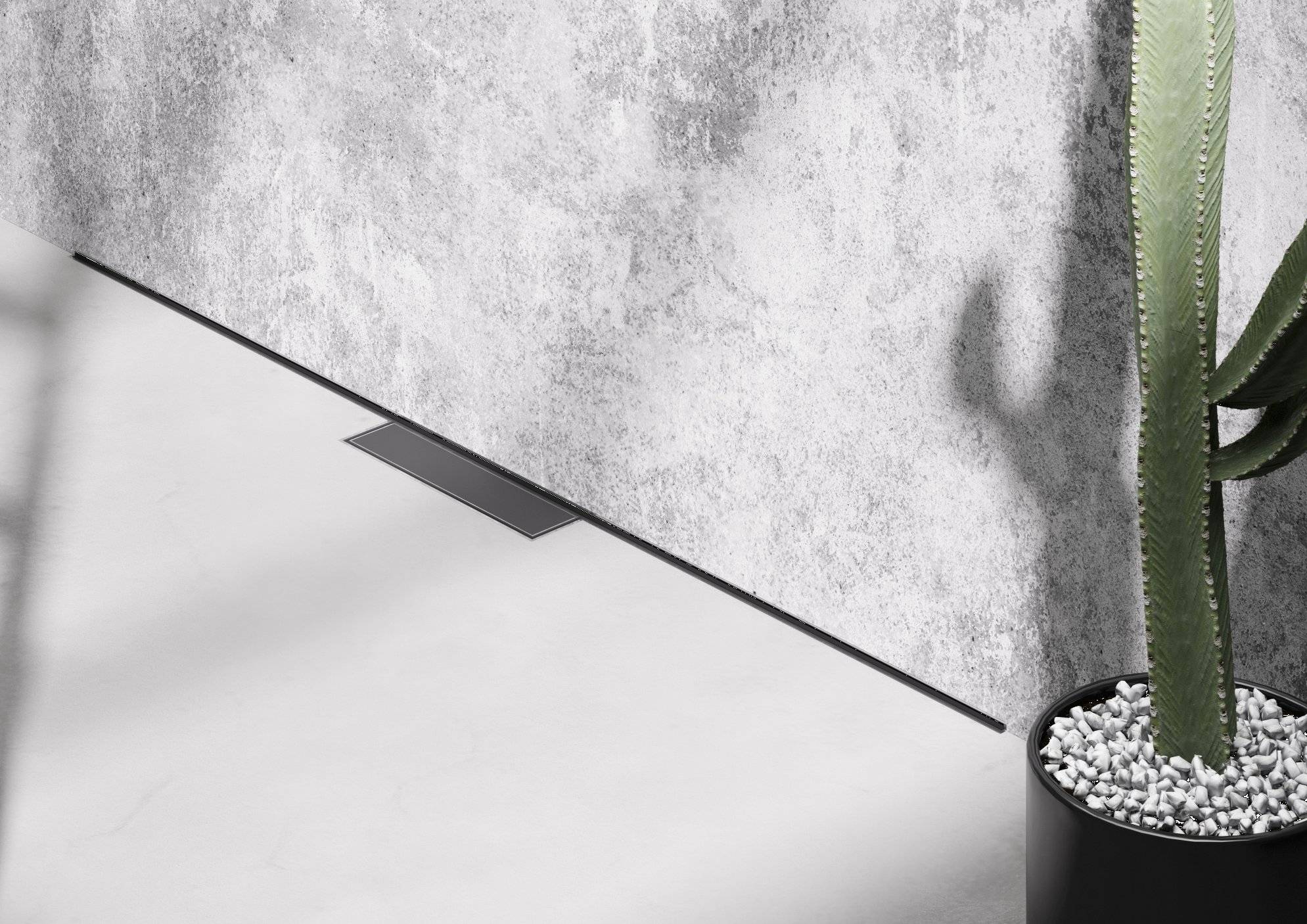

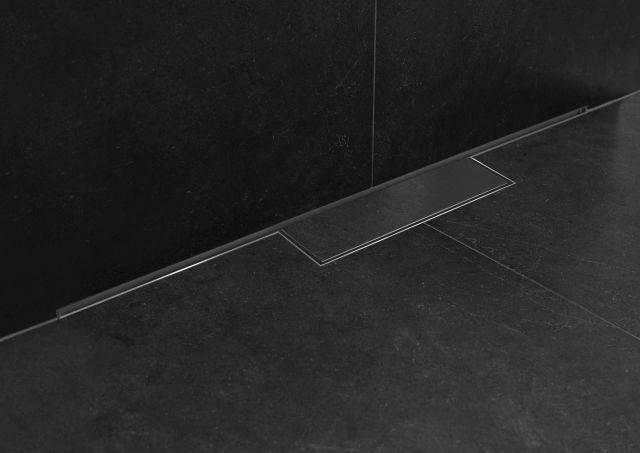

Invisible and stylish wall drainage system, equipped with the patented TAF system and WPS. The TAF system is specially developed to enable secondary drainage, while the pre-assembled sealing membrane (WPS) ensures a complete, watertight installation.

Features and benefits:

  • Easy-to-clean siphon.
  • Pre-assembled sealing membrane – Water Protection System (WPS) technology.
  • Installation: directly at the wall.
  • Complete set.
  • Height-adjustable TAF frame (7–18 mm).
  • High drainage capacity of up to 42 L/min.
  • One-sided installation.
  • Wheelchair-accessible.
  • Wall installation option.
  • Adjustable grate.
  • EN 1253-certified (50 mm water seal).

Application:

New construction or renovation.

General information

Material

Stainless steel

Size

700x70x70mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

M-Line - Shower drain

Standard

To EN 1253 + ETAG-022

Body

-

Configuration

Siphon

Material

Polypropylene (PP)

Cover or grating

-

Type

Reversible tile with Zero+ brushed underside

For 12 mm depth tile.

Outlet

Horizontal fixed

Installation depth (minimum)

63 mm- M Line 30

83 mm- M Line 50

Length

700 mm

800 mm

900 mm

1000 mm

1200 mm

Water seal height

30 mm

32 L/m drainage capacity, 63 mm installation depth, 70 mm installation height.

50 mm

42 L/m drainage capacity, 83 mm installation depth, 90 mm installation height.

Connection

30 mm water seal height: 40 mm; 50 mm water seal height. Global: 50 mm; UK: 56 mm

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors

Suitable floor finishes

Natural stone, thin tiles, tiles/ mosaic, glass/ mosaic

Installation height

70 mm- M Line 30

90 mm- M Line 50

Standard product features

Features:

Adjustable grate.

Finish:

Brushed frame.

Material:

Stainless steel grade 1.4301 (304) frame.

Shape:

Rectangular.

Size:

70 mm width.

Warranty description:

Water Protection System: Ten years.

Country of origin:

The Netherlands.

Country of manufacture:

Germany.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
