Low Waist Tripod Security Turnstiles
Verified by manufacturer 1 month ago
Durapod DT 100
Durapod DT 100
QA Certificate
Certificate type
Achilles Information Limited - Procurement Management
Certificate type
ADSA
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
CHAS
Certificate type
Alcumus SafeContractor
Certificate type
Constructionline Gold
Certificate type
Physical access control and security turnstiles.
Application
Suitable for advanced security in heavy traffics areas such as:
- Construction sites.
- Stadiums.
- Government buildings.
- Public transport areas.
- Retail outlets.
- Banks.
- Leisure Centres.
Description
Robust turnstiles for heavy traffic use with stainless steel arms.
Bi-directional, logic controlled, LED indicators included on both entrance and exit sides. Hand-operated; hand operated with drop arm; motor driven with drop arm options available.
Record low waist Turnstiles ensure secure access to safeguarded indoor and outdoor areas against un-authorised access by controlling pedestrian flow to provide safe access for all.
With a range of security features Record Security Turnstiles restrict access whilst ensuring safe passage for pedestrians and staff in the case of emergencies with fail-safe features and security system compatibility.
Compact and cost-effective, the Record Tripod Turnstiles is designed with a smooth and silent operation and can be customised to suit the surrounding environment and design aesthetics.
Designed for smooth and silent operation, less wear and tear and reduced power consumption, these security turnstiles are suitable for areas where there is a large flow of people.
Features and benefits:
- Stainless steel housing.
- Stainless steel lid and arms.
- Cast and machined aluminium tripod hub.
- CE marked.
- Mean time to repair (MTTR): <30 minutes.
Security Features
- Power failure/fire alarm compatibility.
- Positive locking for one passenger at a time.
- Self centering mechanism.
- Hydraulic damper for smooth operation.
- Anti-backup device.
General information
Color | Silver Grey Other Clear Beige |
Finish | Powder-coated |
Material | Stainless steel Aluminium |
Shape | Other |
Length | 1050 mm 1200 mm |
Width | 250 mm |
Height | 1000 mm |
Warranty description | Five year |
Uniclass | |
CAWS | Q50/160 Turnstile |
Specification data - Stainless steel half-height turnstiles
Turnstile type | Tripod arms. |
Rotation | Bidirectional. |
Control unit | Required. |
Weight | 51 kg. |
Arm length | 480 mm. |
Passage width | 530 mm. |
Voltage | 24 V d.c. Manufacturer guidanceLogic |
MeanTimeBetweenFailure | Ten million cycles. Guidance for specification option: Mean cycle between failure (MCBF). |
Casework | 250 x 1050 x 1000 mm. |
Ingress protection (IP) rating | IP54. |
Operating temperature range | -10 to +70°C. |
Power supply | 100 V a.c. Guidance for specification option: 50 Hz. 240 V a.c. Guidance for specification option: 60 Hz. |
Casework/ lid material | AISI 304 stainless steel. Guidance for specification option: Standard. AISI 316 Stainless steel. Powder-coated steel in RAL colors. |
Interfaces | Logic controlled interface, bi-directional operation. Guidance for specification option:
|
Standby power | 3.8 W. |
Integral accessories | Stainless steel apron infill. Tempered glass infill. Mounting plate for raised/ suspended floor. Ramp plate. Heating kit for -40°. |
Sustainability data
Material | Stainless steel Aluminium |
Third party certifications
QA Certificate
Acclaim SSIP
Achilles Information Limited - Procurement Management
Achillies Building Confidence
ADSA
ADSA Company Membership Certificate
ADSA
ADSA Membership
ISO 45001 Health and Safety Management
British Assessment Bureau - ISO 45001:2018
ISO 9001 Quality Management
British Assessment Bureau ISO 9001:2015
CHAS
CHAS Elite
Alcumus SafeContractor
Safe Contractor EX1256
Constructionline Gold
Constructionline Gold
Alcumus SafeContractor
Alcumus Safe Contractor
Literature

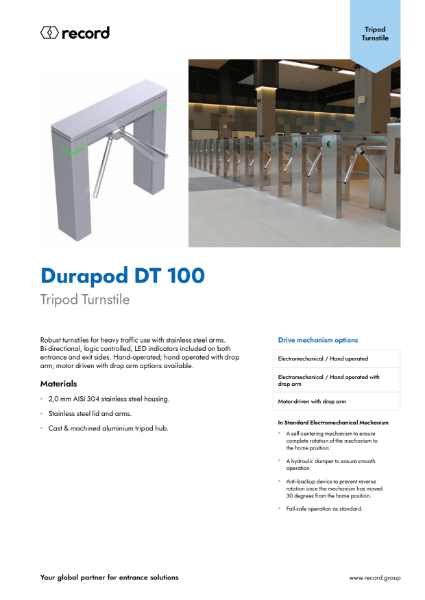

Record_SEC_Datasheets_Durapod_DT100

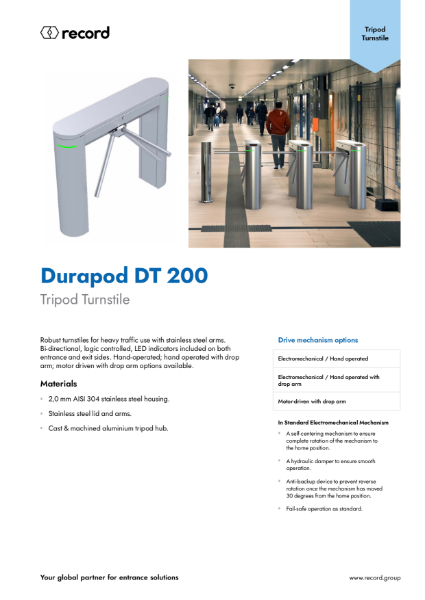

Record_SEC_Datasheets_Durapod_DT200
