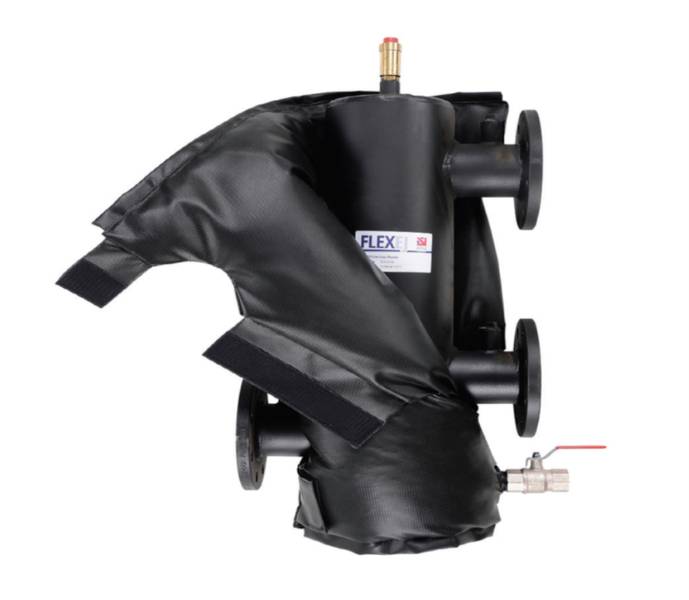

Low Loss Header / Hydraulic Separator Insulation
Verified by manufacturer 8 months ago
FEJLLH020BSPINS
FEJLLH020BSPINS
A range of insulation jackets for FlexEJ Low Loss Headers.
Application
Insulation Jacket for FlexEJ Low Loss Header.
Description
Flexible filled glass cloth insulation jacket with Velcro hook and loop flaps plus drawcord. May be fitted to the Low Loss Header when all piping is complete and is easily removed/reinstalled for maintenance.
Features and benefits:
- Manufactured in the UK.
- Rating: 110°C
- Fire classification: A1 to EN 13501-1.
General information
Color | Black |
Finish | Natural |
Material | Silicone Glass Mineral fibre |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | S90/570 Insulation to pipework S90/570 Insulation to pipelines T90/450 Insulation to pipelines to control heat loss T90/450 Insulation to pipelines to control heat loss |
Specification data - Valve and flange insulation
Material | Silicone coated 530 g/m² e-glass cloth inner and outer, black; Mineral rock fibre blanket filler 0.040 W/mK. |
Form | Removable and reusable jackets. |
Compatibility | For use with Low Loss Header FEJLLH020BSP. |
Reaction to fire | To EN 13501-1, Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Literature
Product Data Sheet - Low Loss Headers - Low Power Insulation
Product Data Sheet - Low Loss Headers - High Power Insulation
