Louvre Window Airstream - AOV Smoke vent SHEV - Louvre

Name: Louvre Window Airstream - AOV Smoke vent SHEV - Louvre
Brand: Lamilux Rooflights Ltd
SKU: xpP6pzNKkqXPYvbtWWwBSc

Verified by manufacturer 1 month ago

Lamilux Rooflights Ltd

Product certifications:

TUV - Safety and Quality Report
Certificate type
TUV - Safety and Quality Report
Certificate type

Thermally separated aluminium framed louvre windows for EN12101-2 certified smoke and heat ventilation. Suitable for integration into the façade of industrial and commercial buildings.

Jump to:

01284 749051 Website

Application

Suitable for installation in vertical industrial and commercial facades. (90°)

Description

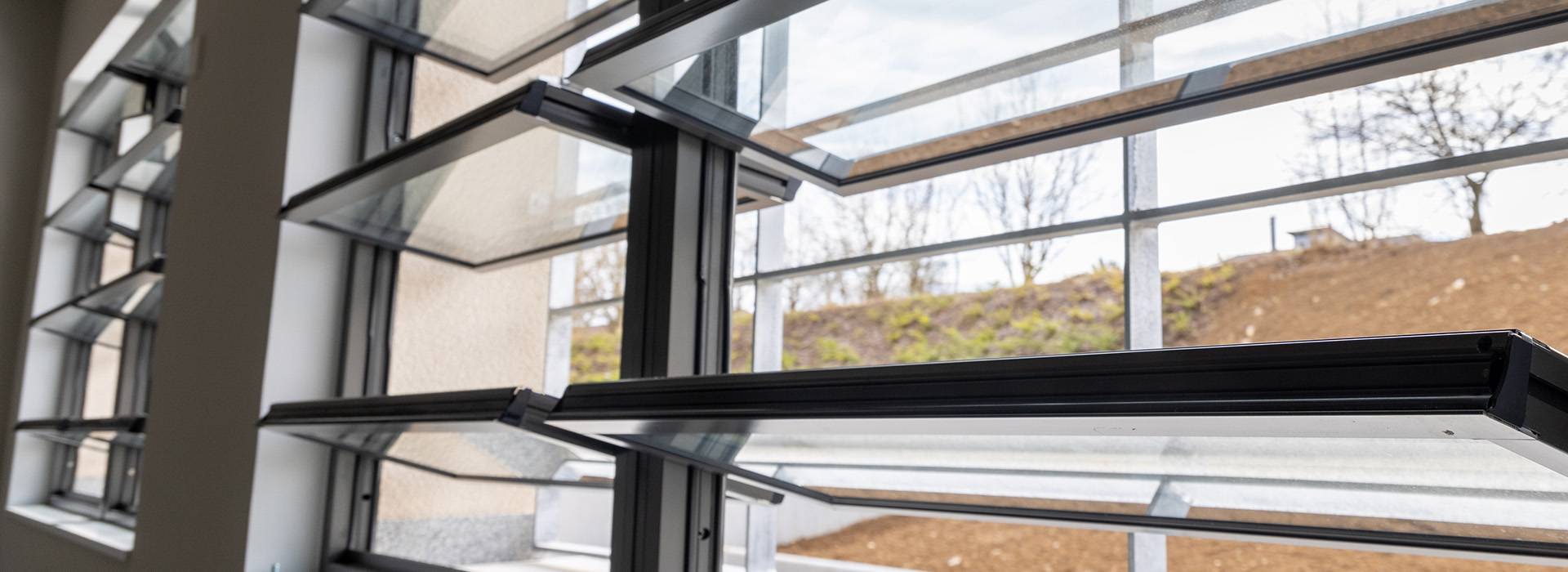

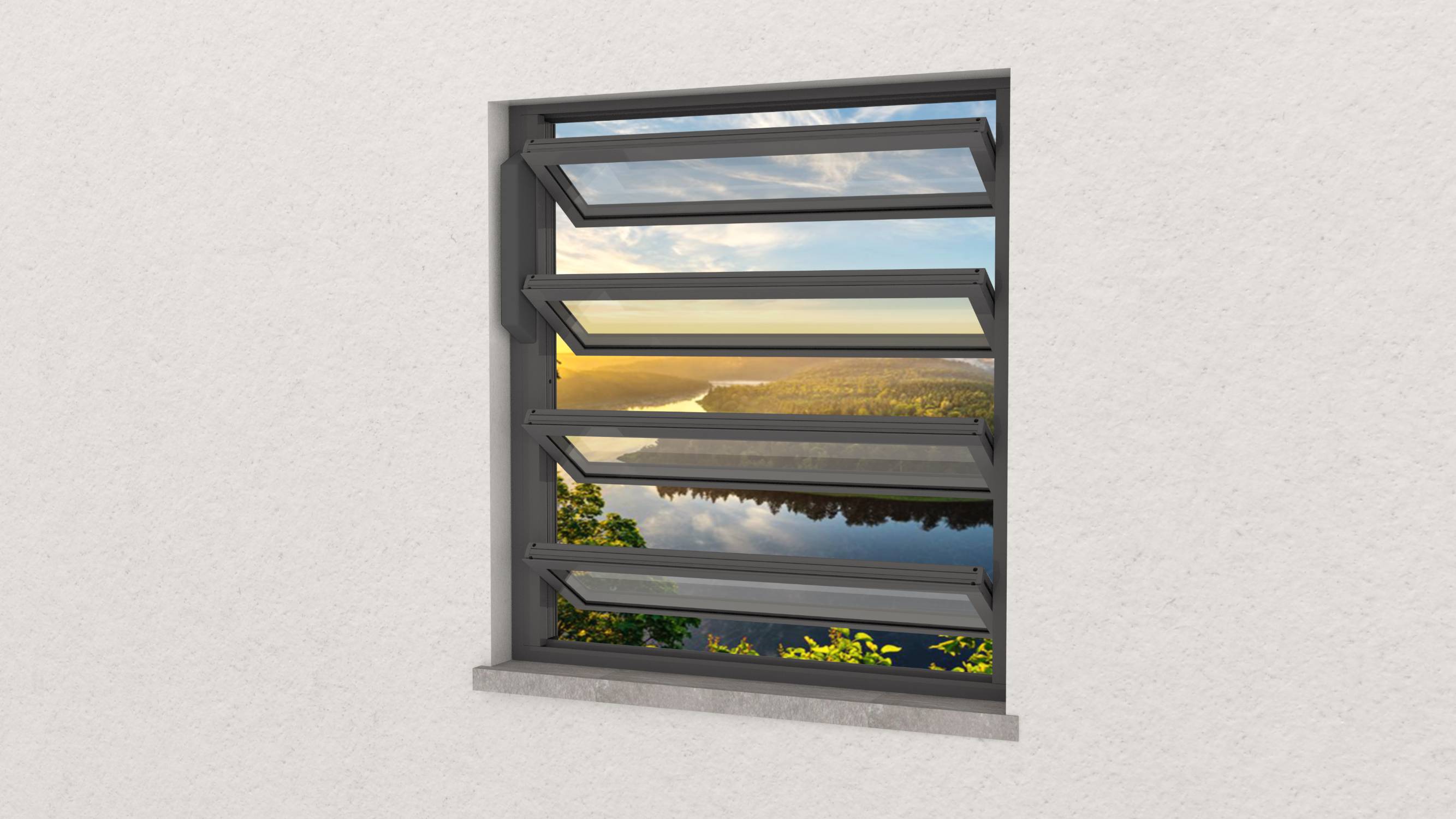

LAMILUX Airstream Louvre Window – Premium Ventilation and Smoke Vent Solution

The LAMILUX Airstream Louvre Window is a high-performance louvre window designed for effective natural ventilation and EN12 101-2 certified smoke vent functionality. Ideal for commercial and industrial buildings, it ensures optimal airflow and rapid smoke extraction in the event of a fire. Its sleek, aerodynamic design minimizes resistance while maximizing efficiency, and the durable aluminum construction guarantees long-term performance. The LAMILUX Airstream functions as both a louvre window and a smoke vent, making it a reliable and versatile solution for safety and comfort in modern architecture.

General information

Color	Clear
Finish	Glazed Guidance for specification option: Double glazed 1.1 UT 1.1 (W/m²k) Triple glazed UT 0.9 (W/m²k)
Material	Aluminium Glass
Shape	Rectangle Square
Length	500 mm 2500 mm Manufacturer guidance window length (height) available from 500-2500mm with 1mm increments available
Width	400 mm 1400 mm Manufacturer guidance window width available from 400-1400mm with 1mm increments available
Height	Bespoke Manufacturer guidance window height available from 500-2500mm with 1mm increments available. Slat heights technical feasible from 150-400mm with the slat number and height resulting from calculating the specified overall window width and height

Uniclass	Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary Pr_30_59_98_02 Aluminium window units
CAWS	L10/54 Louvres L10/490 Roof ventilators L10/47 Roof ventilators L10/650 Metal louvres

Product range	Smoke ventilation

Specification data - Natural smoke and heat exhaust ventilators

Classification data
Standard	To EN 12101-2.
Opening type	B. Guidance for specification option: E24V Actuator: Useable for smoke ventilation as well as daily natural ventilation. Voltage 24 V d.c. Current consumption: 1.4 A \| 1.6 A. Nominal force: 1400 N \| 1800 N. Stroke Length: max. 90 mm ± 2 %. Service life: >20 000 double strokes. Closing edge protection = activated (3 repetitions of stroke). Locking relief = activated.
Mounting	Wall-mounted. Guidance for specification option: Vertical installation (90°) For integration into the facades of industrial and commercial buildings.
Aerodynamic free area	S200 -S1: 800 x 2000 mm (Aa 0.77 m², Ageo 1.1 m²). Guidance for specification option: 11 louvre. S200 -S2: 1000 x 1500 mm (Aa 0.72 m², Ageo 1.05 m²). Guidance for specification option: Eight louvre. S200 -S3: 1000 x 2000 mm (Aa 0.98 m², Ageo 1.41 m²). Guidance for specification option: 11 louvre. S200 -S4: 1200 x 1200 mm (Aa 0.73 m², Ageo 0.98 m²). Guidance for specification option: Seven louvre. S200 -S5: 1200 x 1800 mm (Aa 1.07 m², Ageo 1.53 m²). Guidance for specification option: Ten louvre.
Reliability classification	>20 000 double strokes.
Wind load classification	To EN 12101-2:2003, WL 3000.
Materials	-
Ventilator	-
Frame	Extruded aluminium. Guidance for specification option: Profiles with a frame construction depth of 50 mm and a frame face width of 38 mm.
Louvres	Glass panel louvre blades. Guidance for specification option: Total thickness of slats: BT50 - 24 mm, BT60 - 32 mm, BT70 - 44 mm. BT50 variable slat height: 120–400 mm. BT60 / BT70 variable slat height: 200–400 mm.
Finish	Anodized. Guidance for specification option: 25 micrometres. Powder coated. Guidance for specification option: 60–80 micrometres.
Colour	Anodized silver - E6 EV1. Anodized E6/C31 - 35. Guidance for specification option: Insert requirements. RAL. Guidance for specification option: Can be powder coated to any RAL colour. Insert requirements.
Seals	Lateral with sealing brushes, horizontal profile joints with sealing brushes and EPDM gasket.
Fire resistance	To EN 12101-2:2003, Resistance to heat B 300 E.
Acoustic performance rating	To DIN EN ISO 717-1, 38 dB. To DIN EN ISO 717-1, 39 dB.
Standard:	To EN 14351-1:2006+A1:2010. Resistance to repeated opening and closing class 3 (DIN EN 1191).
Operation	Electrically via 230 V AC. Electrically via 24 V DC. Pneumatically.
Electrical supply	E-motor WAL, 24V, 0,65 A, 1600 N, IP50, E6/EV1, stroke 36 mm with 3,0 m cable (black), without pushbutton, without control.
Fixing	Profiles for fixing in post beam construction, window construction or masonry.
Dimensions and configurations	Insert requirements. Guidance for specification option: Minimum frame width = 300 mm. Maximum frame width = 2000 mm (broader elements are available divided by glazing bars). Maximum frame width can be extended to 2500 mm with tandem control or double-acting drive.
Wind resistance	To DIN EN 12211, C5.
