Loox 24V Lighting - Surface-mounted LED Luminaires

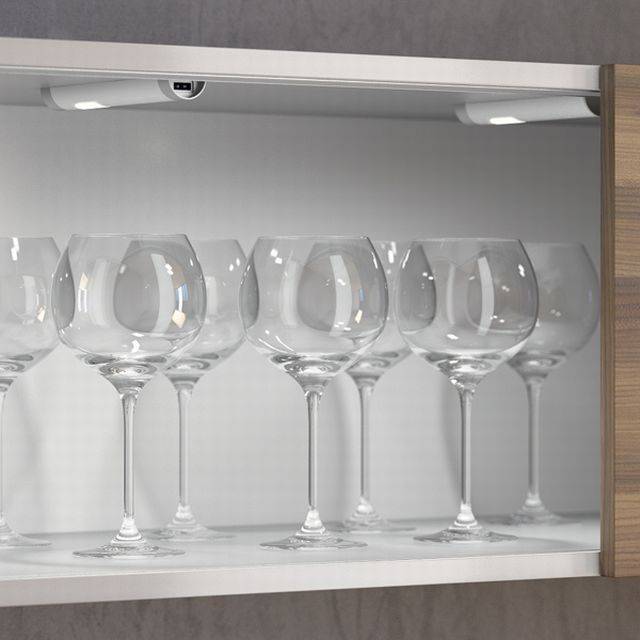

24 V surface-mounted LED luminaires and accessories for use in the Loox 24V modular LED lighting system for furniture.
For use in furniture lighting systems.
24 V surface-mounted LED luminaires and accessories for use in the Loox 24V modular LED lighting system for furniture.
Features and benefits:
- Includes innovative and powerful drivers.
- The simple and flexible design of the system is reflected in the standardized Plug and Play technology, making it easy to integrate LED lighting in furniture and fittings.
- The flexible and modular system components make it possible to have a wide range of applications and solutions, simplify installation or provide meaningful combinations of different lights and switches.
- Matching recessed luminaries also available (specified separately).
Application:
For use in furniture lighting systems.
Uniclass 2015 | |
CAWS | V90/45 Luminaires V90/510 Luminaires |
Product Reference | LED 3005, surface mounted lightsLED 3006, surface mounted lightsLED 3007, drawer lightLED 3009, surface mounted lightsLED 3011, flexible strip lightLED 3013, flexible strip lightLED 3015, flexible strip lightLED 3017, flexible strip lightLED 3018, flexible lightLED 3019, surface mounted lights |
Accessories | - |
Drivers | 833.77.90015 W maximum output. 833.77.91220 W maximum output. 833.77.90130 W maximum output. 833.77.91475 W maximum output. |
Multi-driver box | Not required833.89.061, multi-driver box |
Switches | 833.89.044, push switch, black833.89.045, door contact switch833.89.046, foot switch833.89.070, touch-free switch833.89.071, door sensor switch833.89.072, motion detector833.89.073, touch-free dimmer833.89.074, push switch, silver |
Switch accessories | Not required833.89.048, surface mounted housing, black833.89.049, surface mounted housing, silver833.89.090, surface mounted housing, silver833.89.060, multi-switch boxAllows up to three switches for one luminaire. |
Leads and distributors | Not required833.89.067, 2000 mm extension lead for switches833.89.068, 500 mm lead for multi-switch box or multi-driver box833.89.069, 2000 mm lead for multi-switch box or multi-driver box833.77.706, 500 mm extension lead for lights833.77.707, 1000 mm extension lead for lights833.77.708, 2000 mm extension lead for lights833.77.800, four-way extension lead for lights833.77.722, six-way distributor833.77.720, three-way distributor with switching |
Profiles | Not required833.74.729, surface mounting aluminium profile833.72.735, aluminium wardrobe rail profile833.74.810, surface mounting aluminium profile, milky cover833.74.811, surface mounting aluminium profile, frosted cover833.74.812, corner mounting profile833.74.813, surface mounted rectangular profile833.74.814, surface mounted round profile |
Cable channel | Not required833.89.013, white, RAL 9010Length: 2500 mm. 833.89.023, brown, RAL 8007Length: 2500 mm. 833.89.033, black, RAL 9005Length: 2500 mm. |
Product Options | Profiles: For mounting LED 3013 and LED 3015 strip lights. |
