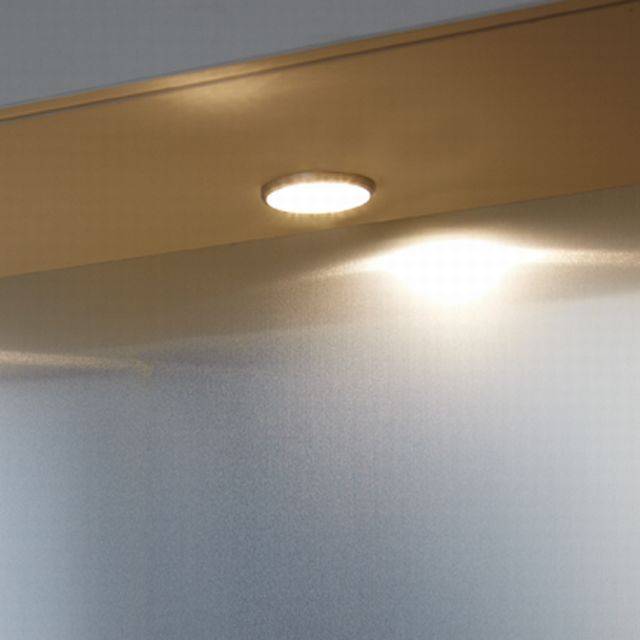

Loox 12V Lighting - Surface-mounted LED Luminaires

Hafele UK Ltd

12 V surface-mounted LED luminaires and accessories for use in the Loox 12V modular LED lighting system for furniture.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Application

For use in furniture lighting systems.

Description

12 V surface-mounted LED luminaires and accessories for use in the Loox 12V modular LED lighting system for furniture.

Features and benefits:

  • Includes innovative and powerful drivers.
  • The simple and flexible design of the system is reflected in the standardized Plug and Play technology, making it easy to integrate LED lighting in furniture and fittings.
  • The flexible and modular system components make it possible to have a wide range of applications and solutions, simplify installation or provide meaningful combinations of different lights and switches.
  • Matching recessed luminaries also available (specified separately).

Application:

For use in furniture lighting systems.

General information
Specification data
Product Reference

LED 2001, surface mounted lights

LED 2002, surface mounted lights

LED 2007, glass edge light

LED 2010, surface mounted lights

LED 2011, flexible strip lights

LED 2012, flexible strip lights

LED 2013, flexible strip light

LED 2014, flexible strip light

LED 2015, flexible strip light

LED 2016, flexible strip light

LED 2017, LED bar strip light

LED 2018, flexible lights

LED 2019, glass edge light

Accessories -
Drivers

833.74.900

15 W maximum output.

833.74.917

20 W maximum output.

833.74.901

30 W maximum output.

833.74.913

60 W maximum output.

Converters and multi-driver boxes

Not required

833.89.061, multi-driver box

833.80.912, converter for 350 mA lights

Switches

833.89.044, push switch, black

833.89.045, door contact switch

833.89.046, foot switch

833.89.070, touch-free switch

833.89.071, door sensor switch

833.89.072, motion detector

833.89.073, touch-free dimmer

833.89.074, push switch, silver

Switch accessories

Not required

833.89.048, surface mounted housing, black

833.89.049, surface mounted housing, silver

833.89.090, surface mounted housing, silver

833.89.060, multi-switch box

Allows up to three switches for one light.

Leads and distributors

Not required

833.89.067, 2000 mm extension lead for switches

833.89.068, 500 mm lead for multi-switch box or multi-driver box

833.89.069, 2000 mm lead for multi-switch box or multi-driver box

833.74.724, 500 mm extension lead for lights

833.74.725, 1000 mm extension lead for lights

833.74.726, 2000 mm extension lead for lights

833.74.765, four-way extension lead for lights

833.75.743, six-way distributor

833.74.742, three-way distributor with switching

Profiles

Not required

833.74.729, surface mounting aluminium profile

833.72.735, aluminium wardrobe rail profile

833.74.810, surface mounting aluminium profile, milky cover

833.74.811, surface mounting aluminium profile, frosted cover

833.74.812, corner mounting profile

833.74.813, surface mounted rectangular profile

833.74.814, surface mounted round profile

Cable channel

Not required

833.89.013, white, RAL 9010 – 2500 mm long.

833.89.023, brown, RAL 8007 – 2500 mm long.

833.89.033, black, RAL 9005 – 2500 mm long.

Product Options

Profiles:

For mounting LED 2013 and LED 2015 strip lights.
