Application

Suitable for ceilings where regular access to loft space is required. Will fit into the structural membrane of a joint-less plasterboard ceiling system.

This panel is not fire rated, acoustic rated, air pressure tested or smoke tested.

Structural opening should be at least 7 mm larger than the panel size.

Description

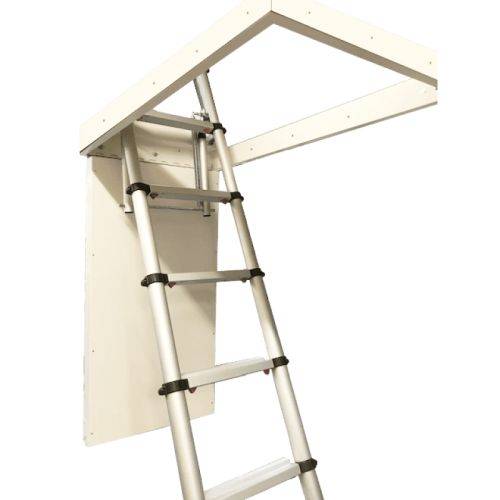

Loft hatch with telescopic, nine-tread ladder.

Features and benefits:

  • Manufactured in the UK.
  • The ladder is pre-fitted to the rear of the loft access frame to allow for easy installation.
  • Thermal transmittance (U-value) of 0.567 W/m²K.
  • Feet are manufactured from plastic, for safety and to protect the flooring.
  • Adjustable to heights between 2.17–2.61 m.
  • Lockable using heavy-duty three-point locking (supplied).
  • Hinged with a full length piano hinge, and opens with an automatic lock/ release.
  • Includes a fully insulated door tray and draft sealing.
  • Tested in accordance with BS EN 14975.
  • Ten-year inclusive warranty.

Applications:

Suitable for ceilings where regular access to loft space is required. Will fit into the structural membrane of a joint-less plasterboard ceiling system.

This panel is not fire rated, acoustic rated, air pressure tested or smoke tested.

Structural opening should be at least 7 mm larger than the panel size.

General information
Finish

RAL 9010, 30% gloss

Material

Hatch: Zintec steel

Ladder: Anodized aluminium

Feet: Plastic

Uniclass 2015 Access panels (Pr_30_59_36_01)
Specification data
Product Reference

Loft Hatch With Youngman Ladder (TAP12-000-MD-PF-3WL-LML)

Size -
Hatch

540 x 940 mm

Structural opening size: 547 x 947 mm.

540 x 1040 mm

Structural opening size: 547 x 1047 mm.

540 x 1140 mm

Structural opening size: 547 x 1147 mm.

640 x 940 mm

Structural opening size: 647 x 947 mm.

640 x 1040 mm

Structural opening size: 647 x 1047 mm.

640 x 1140 mm

Structural opening size: 647 x 1147 mm.

Bespoke

Consult manufacturer and insert requirements.

Finish

RAL 9010, 30% gloss

Locking

Three-way locking

Standard product features

Material:

  • Hatch: Zintec steel.
  • Ladder: Anodized aluminium.
  • Feet: Plastic.

Frame:

25 mm.

Thickness (hatch):

  • Door: 0.9 mm.
  • Frame: 1.2 mm.

Load capacity:

150 kg.

Product Options

Finish:

Other colours are available on request, consult manufacturer for details.

Locking:

Other lock options are available on request, consult manufacturer for details.
