LOFT 20 Glazed Partition System
Application

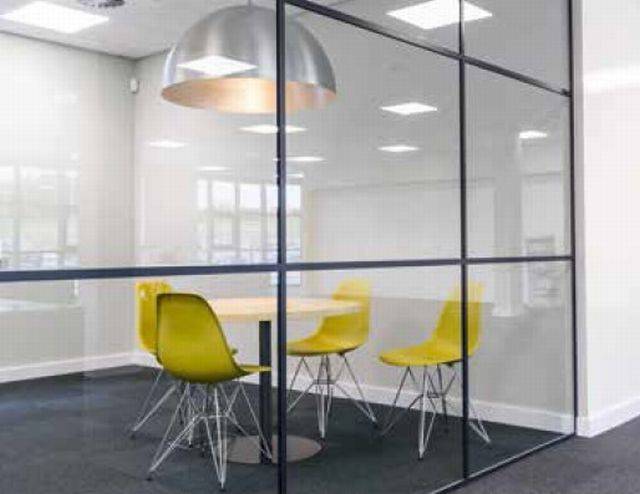

The slender framework and striking bands lends itself to a multitude of environments and uses. It is popular in both corporate and residential projects and can be used for anything from office room dividers, where acoustics are low priority, to creating an industrial feel in a domestic property.

Description

Single glazed partition system with 20 mm wide framework, offering the opportunity to create the original, retro feel of the ‘Art Deco’, New York loft style, banded glazing. The system is ideal when combined with frameless, all glass door leaves, which can have banding applied for a consistent look. If privacy is a requirement, the system can be combined with the slim framed IsoTec doorset, for performance without compromising the aesthetic.

Can be manufactured to conform with BREEAM, SKA and LEED requirements, contact manufacturer for more information.

Applications:

The slender framework and striking bands lends itself to a multitude of environments and uses. It is popular in both corporate and residential projects and can be used for anything from office room dividers, where acoustics are low priority, to creating an industrial feel in a domestic property.

General information
Uniclass 2015
Pr_25_71_57_60 Partition panelsPrimary
CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Specification data - Partition panels
Product Reference

LOFT 20 Glazed Partition System

Partition -
Size (w x h)

As drawing

Insert reference.

Strength grade

Not applicable

For non-load bearing applications.

0.74 kN/m

1.5 kN/m

3.0 kN/m

Sound insulation (to BS EN ISO 10140-2 and ISO 717-1)

35 dB (Rw)

36 dB (Rw)

37 dB (Rw)

38 dB (Rw)

40 dB (Rw)

Finish/ Colour

Etched and anodized

Insert requirement.

Linished and chemically brightened

Insert requirement.

Polished and chemically brightened

Insert requirement.

Polyester powder coated, RAL

Insert colour requirement.

Glazing

Single, offset glazed heat soaked toughened glass

Single, offset glazed laminated glass

Single, offset glazed toughened glass

Head detail

No deflection

27 x 20 mm (d x w) aluminium channel (K201–K204 to suit).

±15 mm deflection

60 x 35 mm (d x w) two-part aluminium channel (K205–K208 to suit).

±25 mm deflection

90 x 35 mm (d x w) two-part aluminium channel (K209–K212 to suit).

±40 mm deflection

145 x 35 mm (d x w) two-part aluminium channel (K623–K626 to suit).

Doorset -
Type

Insert requirement from 'Options' below.

Size (w x h)

As drawing

Insert reference.

As standard

Insert reference.

Finish/ Colour

Etched and anodized

Insert requirement.

Linished and chemically brightened

Insert requirement.

Polished and chemically brightened

Insert requirement.

Polyester powder coated, RAL

Insert colour requirement.

Vision panels

Not applicable

For glazed doors.

Required

Insert requirements, for timber doors.

Ironmongery

Insert requirements from Planet's standard ironmongery suite.

Manifestation

Two rows of 50 mm dots, opal frost

Two rows of 50 mm squares, opal frost

Special order

Insert requirement, artwork and custom manifestations are available, contact manufacturer for information.

Accessories

Insert requirements, contact manufacturer for information.

Standard product features

Framing:

Extruded aluminium sections.

Floor detail, wall abutments, skirtings and sills:

27 x 20 mm (d x w) two-part aluminium channel.

Glazing junctions/ corners:

LOFT 25 mm aluminium glazing bar bonded to both sides of glass.

Fire resistance of complete system (to BS 476-22):

Non-fire rated.

Product Options

Partition size:

Available up to 3500 in height (for partitions over 3000 mm in height, please consult manufacturer for further information).

Doorset type:

- Planet Eclipse Sliding door system.

- Planet K517 aluminium door frame, with single leaf set:

  • Planet IsoClear 12 mm door leaf - non-acoustic.
  • Planet IsoClear 12 mm door leaf - 34 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf - 39 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf - 42 dB (Rw).
  • Planet IsoPro single glazed metal framed door leaf - 34 dB (Rw).
  • Planet IsoTec 12 mm door leaf - non-acoustic.
  • Planet IsoTec 12 mm door leaf - 34 dB (Rw).
  • Planet Sonotec double glazed metal framed door leaf - 39 dB (Rw).
  • Planet Sonotec double glazed metal framed door leaf - 42 dB (Rw).
  • Planet Sonotec single glazed metal framed door leaf - 34 dB (Rw).

- Planet K518 aluminium door frame, with single leaf set:

  • Timber 44 mm leaf on hinges - 32 dB (Rw) with threshold seal.
  • Timber 54 mm leaf on hinges - 33 dB (Rw) with threshold seal.

- Planet K521 aluminium door frame, with hospital door:

  • Planet IsoClear 12 mm door leaf - non-acoustic.
  • Planet IsoPro double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf (rebated) - 33 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf (rebated) - 35 dB (Rw).
  • Planet IsoPro double glazed metal framed door leaf (rebated) - 36 dB (Rw).
  • Planet IsoTec 12 mm door leaf - non-acoustic.
  • Planet Sonotec double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).

- Planet K521 aluminium door frame, with double door:

  • Planet IsoClear 12 mm door leaf on hinges - non-acoustic.
  • Planet IsoClear 12 mm door leaf on offset pivot - non-acoustic.
  • Planet IsoPro double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).
  • Planet IsoPro single glazed metal framed door leaf (non-rebated) - non-acoustic.
  • Planet IsoTec 12 mm door leaf on hinges - non-acoustic.
  • Planet Sonotec double glazed metal framed door leaf (non-rebated) - 31 dB (Rw).
  • Planet Sonotec single glazed metal framed door leaf (non-rebated) - non-acoustic.

- Planet K523 aluminium door frame, with double door:

  • Timber 44 mm leaf on hinges - non-acoustic.
  • Timber 54 mm leaf on hinges - non-acoustic.

Glazing manifestation:

Should be in accordance with the requirements of Approved Document K.
