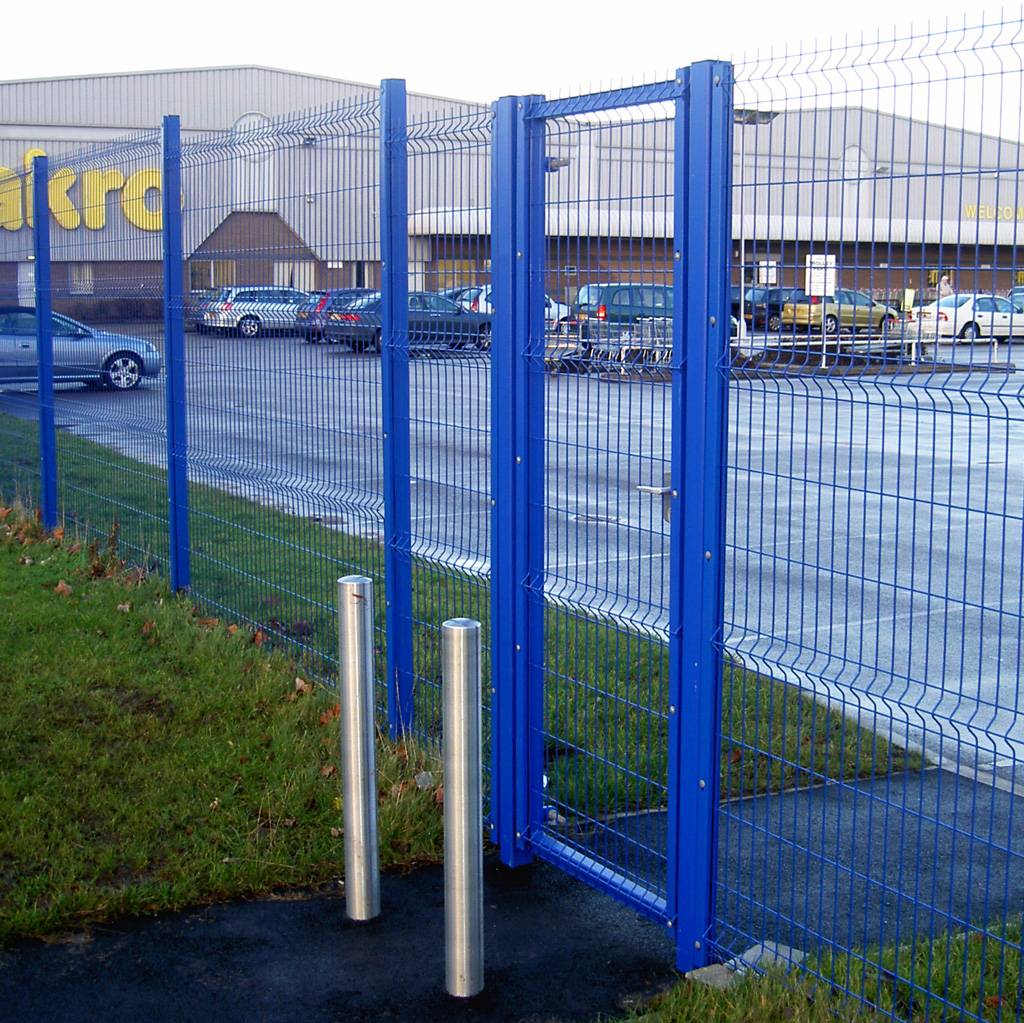

Single leaf swing gate.
LockMaster™ gates are of welded SHS construction, with the rigid mesh panels fixed by standard clamp bar and through fixings. All hinges are anti lift-off and adjustable, the gates back-hung and fitted with the LockMaster™-type locking mechanism, an integral swing bolt lockcase complete with a eurocylinder eliminating footholds and providing a facility that can be suited with most modern door lock systems or one of the many lock arrangements from the CLD range. The gates are supplied with steel drop bolt sockets to be set in concrete. The drop bolts are lockable in both closed and open positions. A variety of toppings are available for the range of gates, including standard barbed wire or razor wire, or more sophisticated toppings such as anti-climb rotating spike or saw-tooth edge.
Features:
Applications:
Color | Any RAL Colour |
Features | Single leaf opening, gate infill to match fence system, lockable drop bolts, secure design, automation option |
Finish | Hot dip galvanized and polyester powder-coated. Available in the RAL range of colours |
Material | Galvanized steel |
WarrantyDescription | 15 Year Manufacturers Guarentee against Defects |
Uniclass 2015 | |
CAWS | Pr_30_59_34_14 Loose laid gas retardant damp proofing Q40/45 Gates/ Gate posts Q40/570 Gates Q50/130 Gate Q50/20 Gate |
Product Reference | LockMaster™Swing gates. |
Type | DoubleSingle |
Height | 400 mm600 mm1200 mm1400 mm1800 mm2000 mm2400 mm3000 mm3800 mm |
Hinges | Left hand hungRight hand hung |
Gate width | Insert requirements from 'Options' below. |
Mesh | DulokDulok 25Dulok liteDulok reboundEclipseExemplaMultiplusSecurus flatUltimateUltimate extraVertical bar |
Colour and finish | Galvanized and polyester powder coated, RALFull RAL range of colours available. |
Locking mechanism | CodeLockFire exit panic latchLockMaster slide barLockMaster cylinder |
Anti-intruder security topping | NoneAnti-climb rotating spikeBarbed wireRazor wire, coiledSaw-tooth edge |
Standard product features | Posts: 80 x 80 x 4 to 250 x 250 x 6.3 mm SHS, depending on gate height. |
Product Options | Gate size: - Height: 400–3800 mm as standard - other heights are available on request. - Width:
Mesh: Insert panel system required to match. Colour and finish: Polyester powder-coated green RAL 6005 as standard. Full spectrum of colours available subject to quantity and price. Locking mechanism: A large and varied range of access control options are additionally available to complement the range of fence systems and gates. Contact manufacturer for details. |
