Locker Stands and Seat Stands
Verified by manufacturer 14 days ago
Locker stands and locker seat stands.
Application
Applicable for wet and dry environment. Seat stands are also great for saving space in smaller changing rooms. Ideal for commercial, leisure and spa facilities.
Description
Stands and seat stands are compatible with most of Helmsman lockers. For laminate and leisure lockers stands and seat stands should be welded 40 x 40 mm square steel tube. For essential metal lockers stands and seat stands should be welded 25 x 25 mm square steel tube.
Features and benefits:
- Floor clearance underneath allows for easy cleaning.
- Clears skirting boards and pipes.
- Stands with seats are designed to allow locker rows to meet at corners exploiting maximum utilisation of available space for providing practical seating.
- Ash hardwood or laminate seating options available.
- Powder coated finish.
General information
Color | White Other Manufacturer guidanceconsult manufacturer and insert requirement. |
Finish | Smooth Powder-coated |
Material | Steel Guidance for specification option: Stands: Mild steel metal. Seats: Zinc plated mild steel, specify upon request. Wood Guidance for specification option: Seats. Laminate Guidance for specification option: Seats: Solid grade laminate. Specify upon request. |
Shape | Square Rectangle |
Length | 300 mm 380 mm 450 mm |
Width | 300 mm 380 mm 450 mm |
Warranty description | One year |
Uniclass | |
CAWS | N10/170 Benches and linked seats N10/220 Lockers N10/10 Purpose-made N13/14 Unisex accessible shower room equipment packages (Document M) N13/448 Seats |
Specification data - Carbon steel frames
Section | Square section. |
Size | 300 x 300 mm.300 x 450 mm.380 x 380 mm.380 x 450 mm.450 x 450 mm. |
Finish | |
Coating | Powder coating.Black nylon coating.Guidance for specification option: Optional extras for stands and east stands. Cladding.Guidance for specification option: Optional extras for stands with powder-coating mild steel or solid grade laminate. |
Colour | Guidance for specification option: Consult manufacturer and insert requirement. |
FrameMaterial | Mild steel. Guidance for specification option: For dry areas. Zinc-plated mild steel. Guidance for specification option: For wet areas. |
Seat | Ash hardwood. Solid grade laminate. Manufacturer guidanceMaterial/Finish. |
Seat | Three slats. Guidance for specification option: As standard. Bespoke. Guidance for specification option: Bespoke options available, consult manufacturer. |
Accessories | Not required. Adjustable feet. Guidance for specification option: From 15 and 50 mm of adjustment in height to help compensate for uneven floors. Floor fixing. Guidance for specification option: Available for stability, adjustable feet can be supplied with a metal bracket for fixing to the floor. The bracket is manufactured from mild steel coated in black plastic. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Guidance for specification option: Stands: Mild steel metal. Seats: Zinc plated mild steel, specify upon request. Wood Guidance for specification option: Seats. Laminate Guidance for specification option: Seats: Solid grade laminate. Specify upon request. |
Recyclability | Mild Steel, Aluminium |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Bench Seating

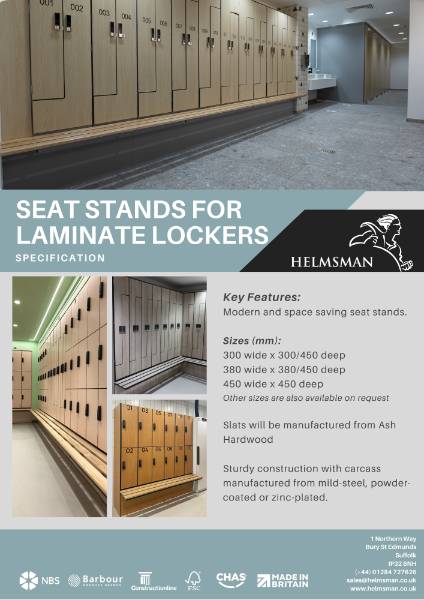

Seat Stand Spec Sheet
