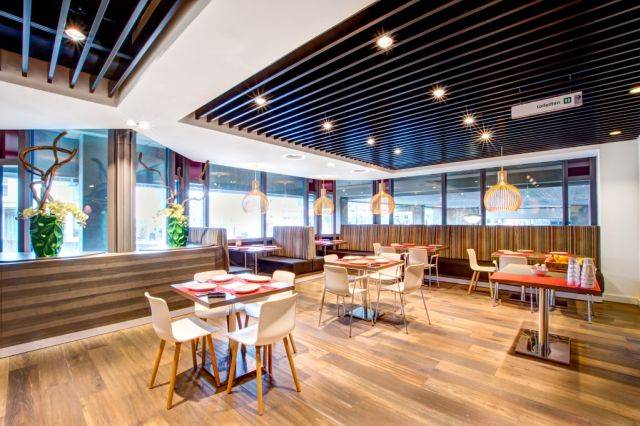

LMD-L 601 Baffle Ceiling

Description

Metal ceiling baffles with customized surfaces, suspended with a movable connector, screwed to a suspension channel. Manufactured in accordance with European standards and the technical regulation of TAIM e.V.

System comprises:

  • Metal baffle.
  • Vernier suspension: Manufactured from zinc-galvanized steel, consisting of hanger upper section, hanger lower section, and safety split pins which are variably adjustable for suspension of channel.
  • Suspension channel: Manufactured from zinc-galvanized steel as basis for fastening of metal baffles.
  • Connector: Horizontally movable connector made of galvanized steel, installed on the upper side of baffle.

General information

Finish

Electrostatically applied powder coating

Uniclass 2015

Ss_30_25_22_90 Unit/ modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Product range

Ceilings

Specification data - Unit/ modular suspended ceiling systems

Product Reference

LMD-L 601

Type

One-piece baffle

Height up to 260 mm.

Two-piece baffle

Height up to 600 mm.

Baffle

-

Size

Length up to 3000 mm, thickness between 30–55 mm, consult manufacturer and insert requirements.

Perforation

None

Plain.

Rd 1,6-25

Rv 1,8–20

Rg 2,5–16

Rv 3,0–20

Colour

RAL 9010

Manufacturer's standard.

RAL

Insert requirements.

NCS

Insert requirements.

Standard product features

Fire performance (BS EN 13501):

A2-s1, d0.

Edge:

Square.

Finish:

Electrostatically applied powder coating.

Sound absorption:

Dependent on level of perforation and acoustic inlay. Consult manufacturer.

Product Options

Perforation:

Four standard perforations available. Other perforations available on request. Consult manufacturer for perforation patterns.
