LMD-E 340 Corridor Ceiling

Description

Metal ceiling panels with customized surfaces supported by aluminium drop/ slide profiles, manufactured in accordance with European standards and the technical regulation of TAIM e.V.

System comprises:

  • Metal ceiling panel.
  • L-angle: Manufactured from zinc-galvanized steel for fastening of supporting profiles, attached to adjacent partition by approved anchors.

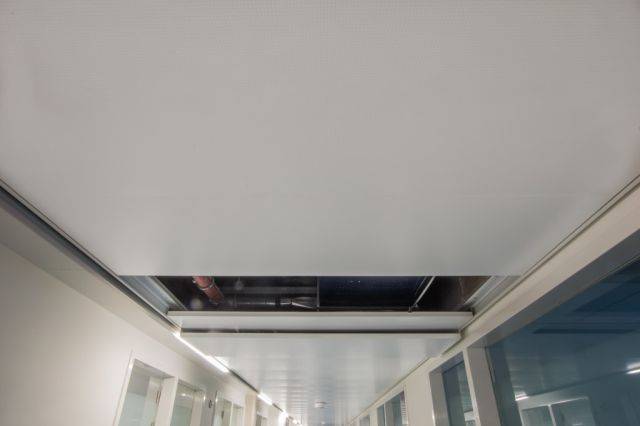

  • Drop-slide hook-on profile: Manufactured from aluminium, surface matching to the ceiling top layer, designed to provide for the drop-slide operation of the ceiling panels, installed as wall connection for the ceiling panels.

General information

Finish

Electrostatically applied powder coating

Uniclass 2015

Ss_30_25_22_90 Unit/ modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Product range

Ceilings

Specification data - Unit/ modular suspended ceiling systems

Product Reference

LMD-E 340

Panel

-

Panel size

Length up to 3000 mm, width up to 600 mm, manufactured from 0.6 or 0.7 mm zinc-galvanized steel, insert requirements.

Perforation

None

Plain.

Rd 1,6-25

Rv 1,8–20

Rg 2,5–16

Rv 3,0–20

Colour

RAL 9010

Manufacturer's standard.

RAL

Insert requirements.

NCS

Insert requirements.

Standard product features

Type:

Drop-slide. System is protected by EP/DBP and DBGM.

Fire performance (BS EN 13501):

A2-s1, d0.

Edge:

Square.

Finish:

Electrostatically applied powder coating.

Sound absorption:

Dependent on level of perforation and acoustic inlay. Consult manufacturer.

Product Options

Perforation:

Four standard perforations available. Other perforations available on request. Consult manufacturer for perforation patterns.
