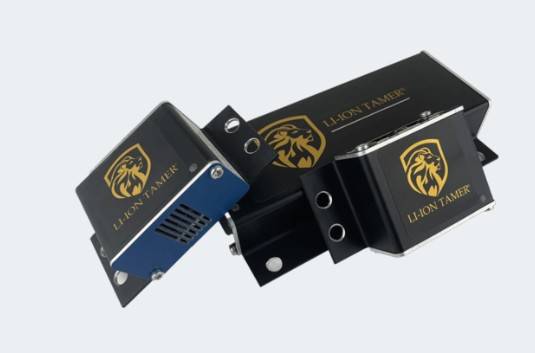

Lithium Ion Off-Gas Detection - Li-ion Tamer® Gen 3 - Lithium Ion Off-Gas Detection

Verified by manufacturer 22 hours ago

XTRALIS

Gas detection system that detects the venting of battery electrolyte solvent vapours (off-gassing phase) that occurs early in the failure mode of lithium-ion batteries (LIB).

Jump to:
+44 (0) 203 409 1779 Website

Application

Suitable for a range of application areas, for example:

  • Stationary battery energy storage:
    • Containerized/ modular systems.
    • Built environment systems.
  • Data centers:
    • Battery UPS.
  • Gigafactories/ manufacturing:
    • Assembly lines.
    • Battery formation process.
    • Cell aging and EOL testing.
    • Module or pack assembly.
  • Automotive:
    • Vehicle test facilities.
  • Laboratory safety:
    • Environmental chambers.
    • Battery abuse testing.
  • Shipping and storage:
    • Post-manufacturing storage.
    • Battery-powered equipment.

Description

Gas detection system that detects the venting of battery electrolyte solvent vapours (off-gassing phase) that occurs early in the failure mode of lithium-ion batteries (LIB).

Designed to be easy to install and configure, consisting of several components: sensors, hub, power switch, network switch, controller.

Features and benefits:

  • Early warning of lithium-ion battery failures - enables thermal runaway prevention with proper mitigating actions.
  • Single cell failure detection without mechanical or electrical contact to the cells.
  • Scalable deployment for cost effective protection of a wide range of battery storage systems.
  • Temperature and humidity monitoring at each sensing node.
  • Extended product lifetime.
  • Calibration-free product with highly reliable output signal.
  • Compatible with all lithium-ion battery form factors and chemistries.
  • Easy installation.
  • Independent and redundant perspective on battery health.
  • Auto diagnostic capabilities.
  • Reduction/ removal of false positive signals.
  • Communication protocols including relays and Modbus serial, that can connect to the building management system (BMS) or other control systems.
  • UKCA marked.

General information

Color

Silver

Black

Shape

Rectangle

Length

89 mm

Guidance for specification option:

Hub dimensions.

115 mm

Guidance for specification option:

Controller dimensions.

141 mm

Guidance for specification option:

Sensor dimensions.

Width

82 mm

Guidance for specification option:

Controller dimensions.

Height

34 mm

Guidance for specification option:

Controller dimensions.

41 mm

Guidance for specification option:

Hub dimensions.

89 mm

Guidance for specification option:

Sensor dimensions.

Uniclass

Ss_75_50_33_30 Fixed gas detection and alarm systemsPrimary

CAWS

W90/331 Carbon monoxide alarms

SKU Code

LT-SEN-M3, LT-SEN-R3, LT-CTR-SML, LT-ACC-HUB-PWR, LT-ACC-HUB-POE, LT-SEN-MOS

Specification data - Fixed gas detection and alarm systems

Classification data

System performance

To BS EN 61326-1.

Guidance for specification option:

For EU Directive (2014/30/EU).

Type of protection

Personnel.
Plant and equipment.

Control panel

LT-CTR-SML - Controller, Gen 3.

Guidance for specification option:

  • 115 x 82 x 34 mm.
  • Input power range: 12 V d.c.
  • Maximum sensors per controller: 100.

Connection cable to sensors

-

Cable type

Network Cable (RJ45), Gen 3.

Guidance for specification option:

Available in 1 m, 1.5 m, 3 m, 7.6 m, 15 m and 30 m lengths.

Detectors

LT-SEN-M3 - Monitoring sensor.
LT-SEN-R3 - Reference sensor.

Guidance for specification option:

Monitoring sensors installed at the battery racks – downstream convective airstreams – to monitor off-gas events.

Reference sensors installed to monitor the ambient environment and air inlets to prevent false positive signals.

  • Minimum detection threshold: <1 ppm/s.
  • Minimum response time: 5 seconds.
  • Fault detection: Single cell failure.

Manufacturer guidance

For detection of lithium-ion battery electrolyte solvent vapours.

Alarm indication

None.

System accessories

Not required.
LT-ACC-HUB-MKT - Hub DIN-Rail Mount Kit.
LT-CTR-SML-DMK - Controller DIN-Mount Kit, Gen 3.
LT-ACC-POE-24-ADR - PoE Switch 24 Ports, IEC Power Adapter.
LT-ACC-ERO-16 - Ethernet Relay Module, 16 Ports.
LT-ACC-ERO-MKT - Relay Output DIN-Rail Mount Kit.
LT-ACC-PWR-12 - Power Supply, 12 V d.c.
LT-ACC-PWR-48 - Power Supply, 48 V d.c.
LT-ACC-TST - DEC Bump Test Bottle.

Third-party certification

ETL listed to UL 61010 and CSA 22.2 NO. 61010, RoHS 3 EU 2015/863, WEEE, REACH compliant, FCC-approved.

Power supply

12 V d.c.

Relay contacts

16 single pole double throw (SPDT) form C relays.

Guidance for specification option:

Connected via screw terminals.

Power consumption

Controller: 3 A (36 W at 12 V d.c.).
Hub: 0.5 A (6 W at 12 V d.c.).

Operating temperature

Controllers: 0–40°C.
Sensors and hubs: -10 to +50°C.

Guidance for specification option:

Temperature measurement: -40 to +125°C.

Operating humidity

10–90% RH, non-condensing.

Communication hub

LT-ACC-HUB-PWR - Hub, Direct Power, Gen 3.
LT-ACC-HUB-POE - Hub, Power over Ethernet (PoE), Gen 3.

Switch

LT-ACC-ETS-5 - Ethernet Switch, 5 Ports.
LT-ACC-ETS-8 - Ethernet Switch, 8 Ports.
LT-ACC-ETS-16 - Ethernet Switch, 16 Ports.
LT-ACC-POE-4 - Ethernet Switch PoE, LT-ACC-POE-4 - Ethernet Switch PoE, 4 Ports.
LT-ACC-POE-24 - Ethernet Switch PoE, 24 Ports.

Sustainability data

Expected Life

Ten year

Guidance for specification option:

>10 year.
