Lindner Hollow Floor Pedestal Type P
Verified by manufacturer 5 months ago
System floor pedestal type P1
System floor pedestal type P1
ISO 9001 Quality Management
Certificate type
System floor pedestal type P made from galvanized steel.
Application
To be used as a substructure with raised access floor systems.
Description
The system floor pedestal type P is made from galvanized steel in combination with gaskets.
The system floor pedestals are made by Lindner, from the design to the production including galvanization.
The system floor pedestal type P creates the cavity for taking up installations. The system floor pedestal type P offers flexibility from its high loadability and the high adjustment range. The pedestals are infinitely adjustable on height and can therefore take up irregularities of the subfloor.
Features and benefits:
- High loadability.
- Easy installation.
- High corrosion protection.
- Chrome(VI)-free.
- Zinc-whisker free.
General information
Color | Silver |
Finish | Galvanized |
Material | Zinc Steel |
Shape | Square |
Height | Bespoke Guidance for specification option: 49–1554 mm. |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor |
Product range |
Specification data - Access floor pedestals
Class | To EN 13213, Class 6.Guidance for specification option: Concentrated load: 20 kN. |
Pedestal type | Adjustable head floor pedestals. |
Materials | Zinc-plated steel. |
Model | Adjustable. |
Height | 49–133 mm. |
Reaction to fire | To BS EN 13501, A1. Guidance for specification option: Non-combustible. |
Breaking load | To BS EN 12825, ≥80 kN (breaking load centric); ≥40 kN (breaking load eccentric). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Zinc Steel |
Manufacturing plant location | |
Recyclability | yes |
Expected Life | 50 year |
Third party certifications
Case studies
AMG Brand Centre - FLOOR and more power
Central Station Berlin Completed Works: - Metal Ceiling - FLOOR and more - NORTEC - Plasterboard partition systems - Fire protection doors
GBC 5 - VENTEC - NORTEC- FLOOR and more
INTERNATIONAL RUGBY EXPERIENCE -> FLOOR and more®

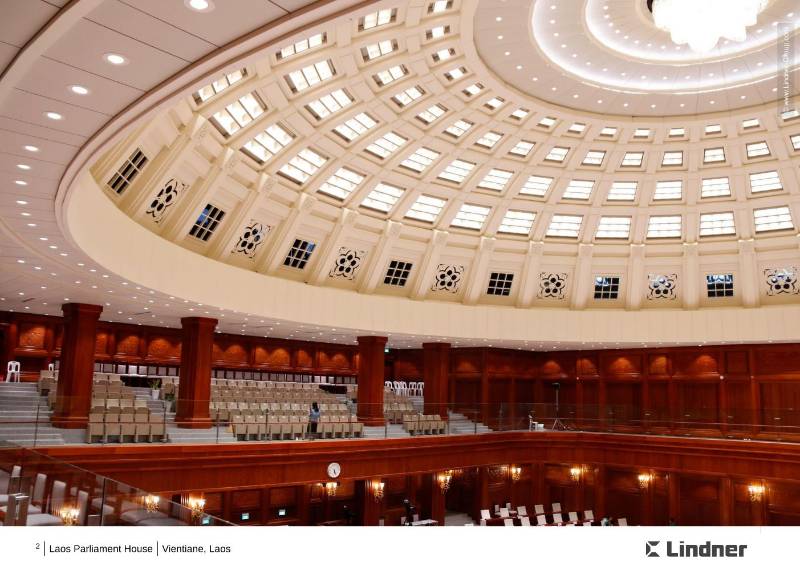

Laon Parliament House - Metal Ceilings, Floor and More arena and Luminaires
