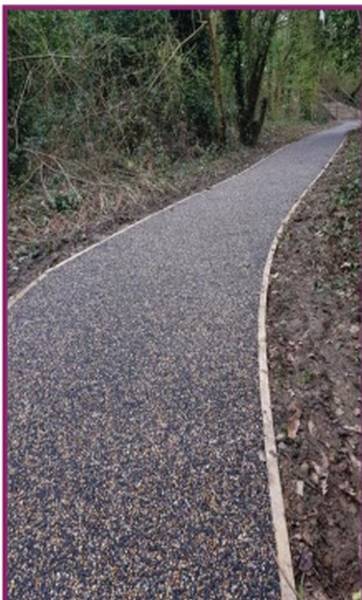

LimePath EcoWalk UV System


Suitable for pathways.


A combination of recycled rubber sourced from used vehicle tyres and natural aggregates, bound together with a specially formulated aliphatic HDI polyurethane resin, which will not deteriorate or become brittle when exposed to UV light when tested to BS EN ISO 16474-3 method A; see FeRFA guidance notes, 2020.

The product was developed to be a SuDS-compliant, permeable, resin-bound system that provides environmental benefits as a surface for pedestrian and low vehicular traffic, remaining slip-resistant, resistant to freeze-thaw, decorative, functional and seamless.

The ‘no binder’ system eliminates the need for macadam and/ or concrete bases, reducing the impact of additionally sourced materials, and greatly reducing transportation and emission.

Edgings created from brick, stone, timber or steel should be installed to retain and protect the system.

Features and benefits:

  • Over 25% recycled content.
  • Tested to slip-resistant BS 8204-6.
  • SuDS-compliant, permeable paving in excess of 1000 L/m²/minute.
  • The ultraviolet-resistant polyurethane resin will not yellow on exposure to UV light.
  • Reduced transportation and emissions.
  • Reduction of waste to landfill.
  • Resistant to freeze-thaw.
  • Reduction in oil-derived binder courses.
  • Suitable for nature walks, pedestrian paths and local authority recreational parks.
  • All aggregates selected to reduce the chances of rust appearing.
  • Optimized ratio of resin to rubber/ aggregate mix blends.
  • Foot traffic after 14–15 hours at 20°C.
  • LimePath EasiWalk UV is a specialist product, and must only be applied by specialist applicators.
  • Manufactured UKAS ISO 9001 in line with the guidance notes published by the Resin Bound Technical Committee as part of FeRFA: the Resin Flooring Association.

General information


Various. Refer to manufacturer mix blend sheets.


Resin and recycled rubber and aggregate

Uniclass 2015

Ss_30_14_02_71 Resin-bound aggregate light-duty paving systemsPrimary


Q23/225 Proprietary resin bound chippings

Specification data - Resin-bound aggregate light-duty paving systems Enhanced data

Geotextile below granular sub-base


Not required.

Granular sub-base

150 mm minimum well-compacted type 3 granular sub-base or similar approved – SuDS-compliant (no binder course).

Surface course

LimePath, 40 mm minimum depth.

Edge restraints


Product Reference

ePath EcoWalk UV System

Impermeable membrane

Not required.



35 mm.

40 mm.


Dior 10 mm.

Espresso 10 mm.

Honey gold 10 mm.

Honey pebble 10 mm.

Marscape 10 mm.

Show more

Environmental information

Country of material origin

United Kingdom

Third party certifications

  • FeRFA: UKAS ISO9001
